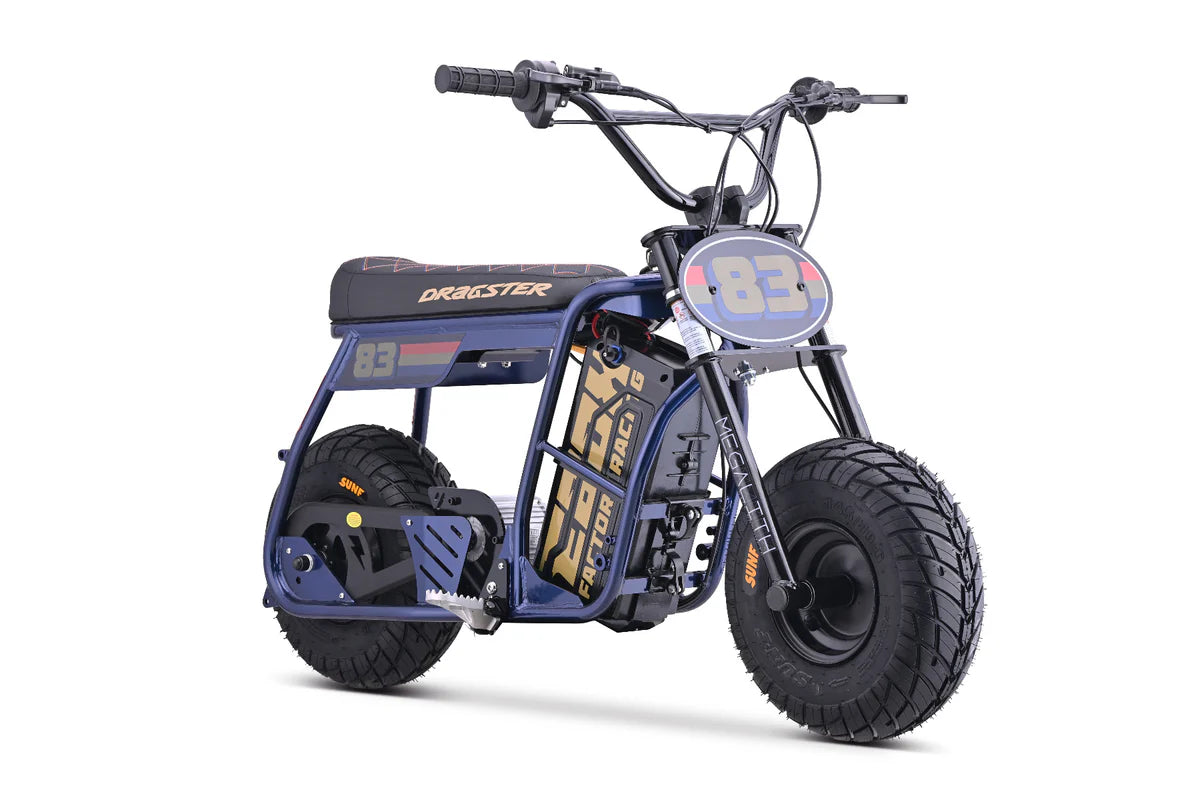

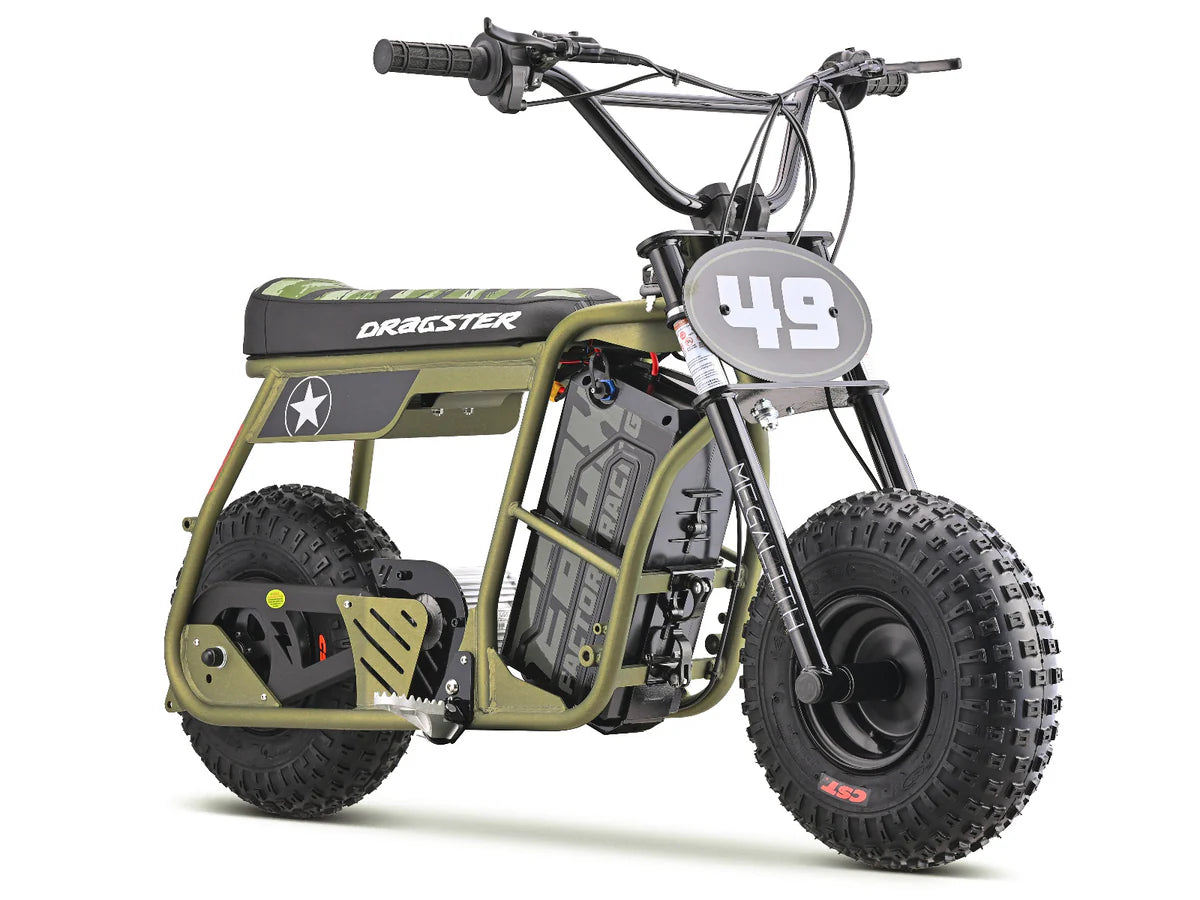

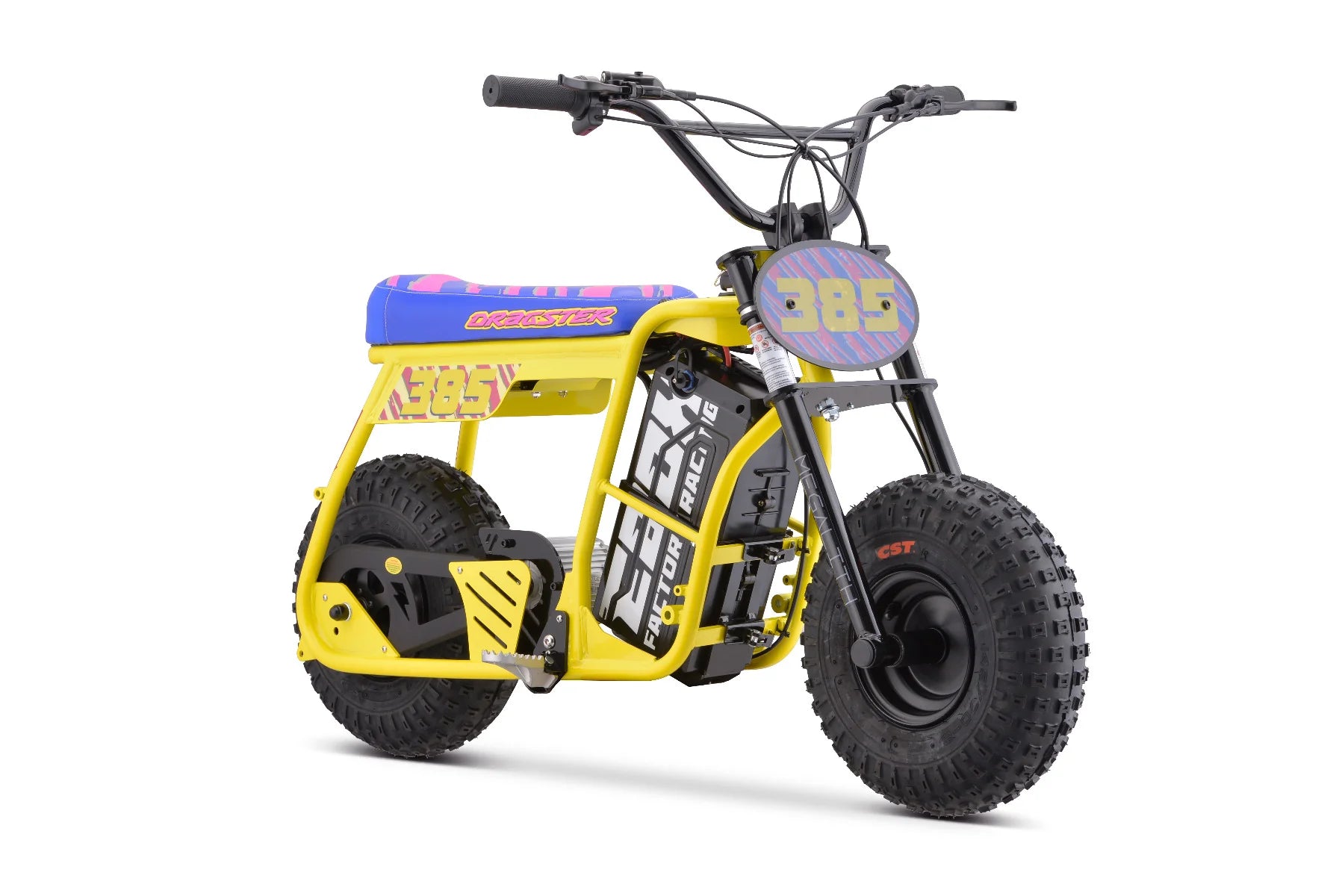

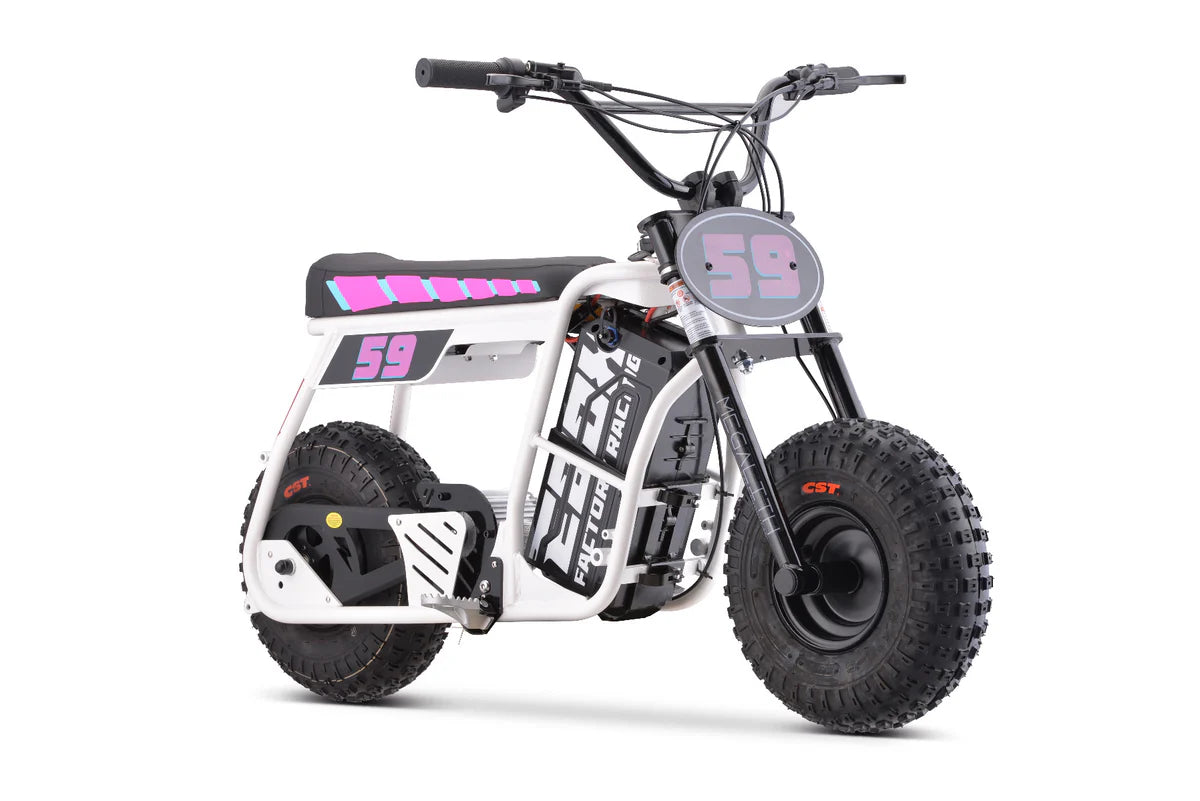

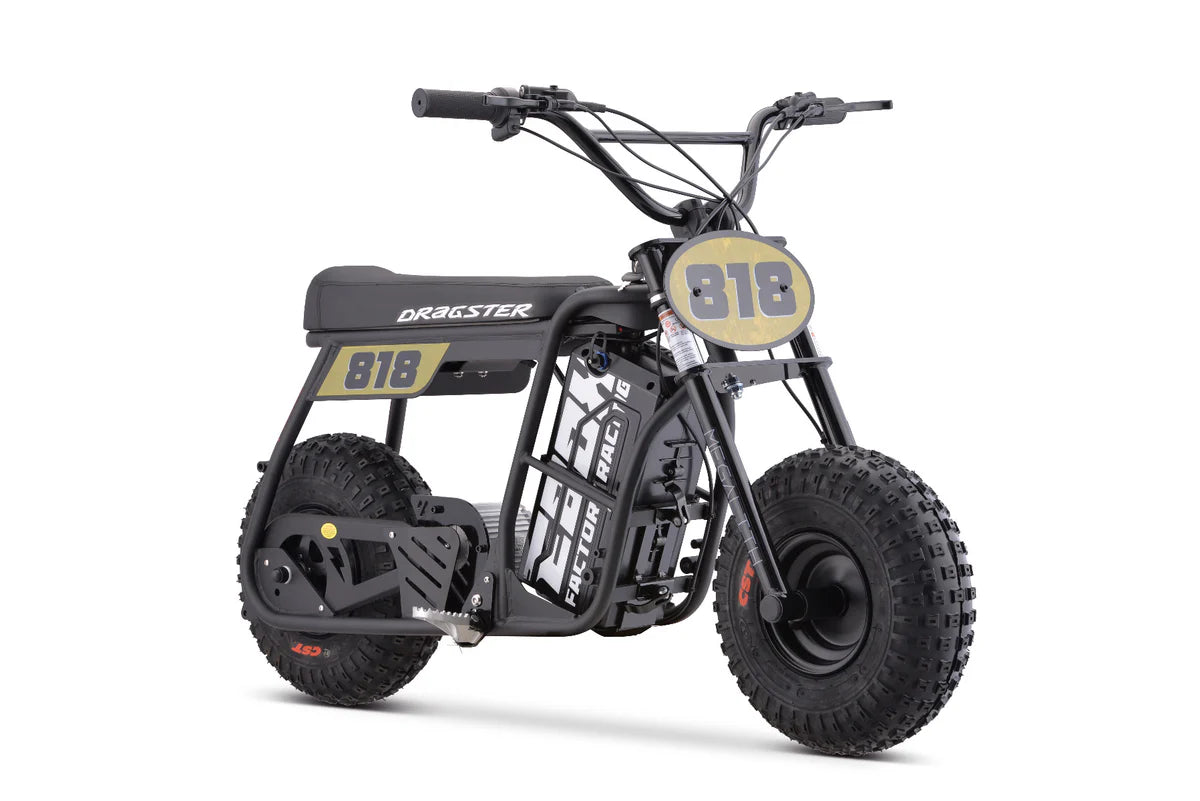

EBOX Dragster 60V 3300W

The EBOX Dragster 60V pairs a 3.3kW rated motor with a 60V 18.2Ah battery. Its full-duplex frame uses 6-inch wheels, hydraulic disc brakes and a quick-release battery system. Three riding modes are selected through the TFT display.

Features

• Three selectable riding modes
• Encoder-equipped PMSM motor
• Hydraulic disc brakes

Specifications

• Motor output: 3.3kW rated / 3.7kW peak
• Battery: 60V 18.2Ah
• Motor type: EBX PMSM with encoder and temperature feedback
• Controller: Fardriver 80A
• Display: TFT with three riding modes
• Throttle: full twist
• Brakes: front and rear hydraulic discs
• Frame: full-duplex steel
• Wheels: 6-inch front and rear
• Tyres: 145/70-6 SUNF
• Chain: 219H 108L
• Gearing: 10T front / 55T rear
• Load capacity: 100kg
• Ground clearance: 120mm
• Wheelbase: 882mm
• Seat height: 585mm
• Bike weight: 42.5kg
• Quick-release battery system
• Two footpeg mounting positions
• Charger output: 67.2V 3A
• Fork: rigid high-tensile
• Brake rotors: 160mm front and rear
• USB-A and USB-C charging ports
• Sealed wiring harness with automotive connectors.
• TFT instrument display includes an odometer and fault-code analysis.
• Charger AC input: 100–240V.
• Maximum motor speed: 7,500rpm.
• Supplier-stated charge time: 5–6 hours.
• Supplier-stated range: 35–40km.
• Removable motor plate, integrated chain tensioner and loop-tail frame layout.
• Frame-mounted stunt-peg compatibility.
• Handlebar height: 810mm.
• QS8 battery connector.
• Two-piece high-tensile handlebar: 29.5 × 7 inches.

Range, speed and charging figures are supplier estimates, not guarantees. Actual results vary with riding conditions, load, settings and charging equipment.
