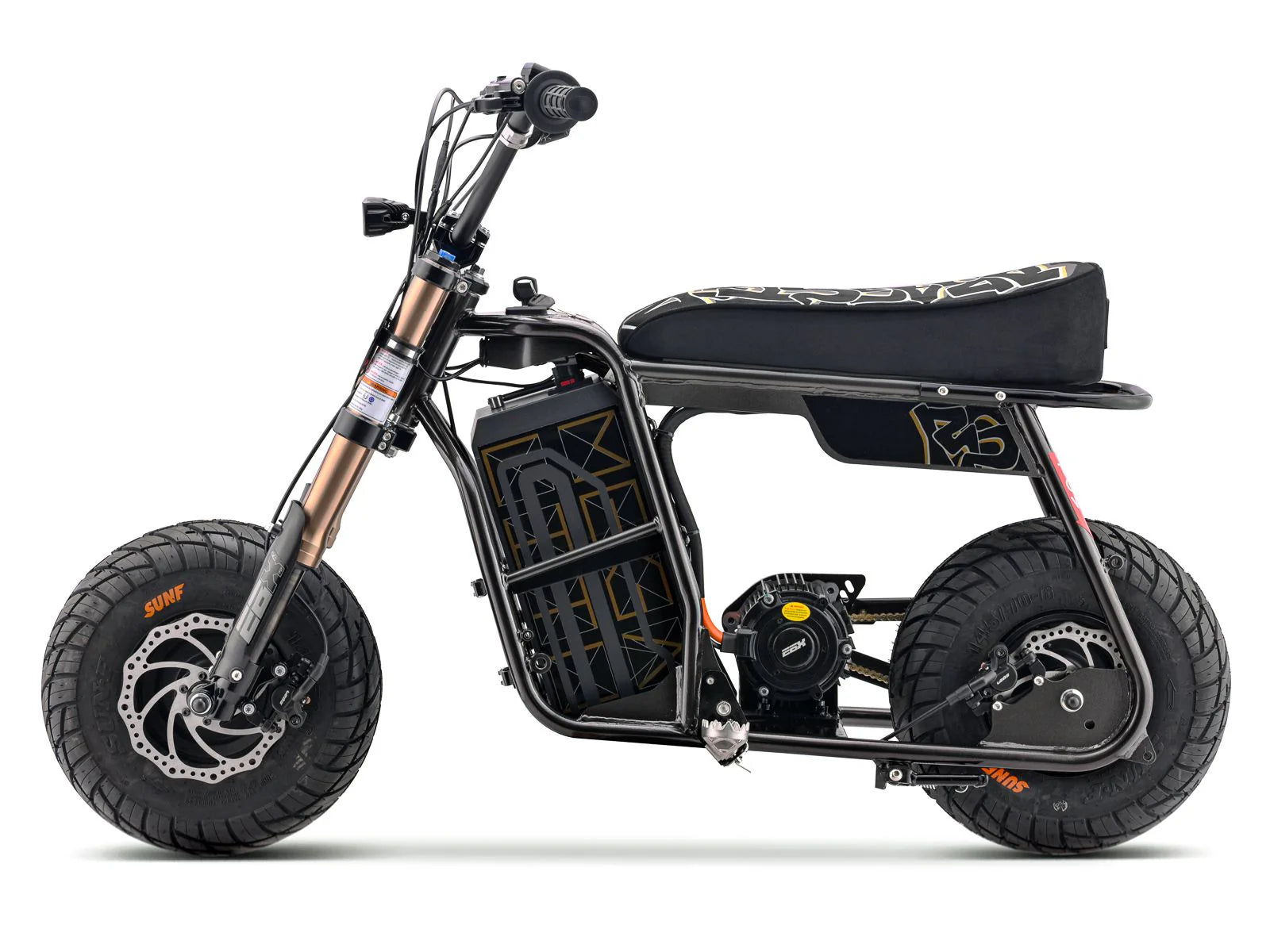

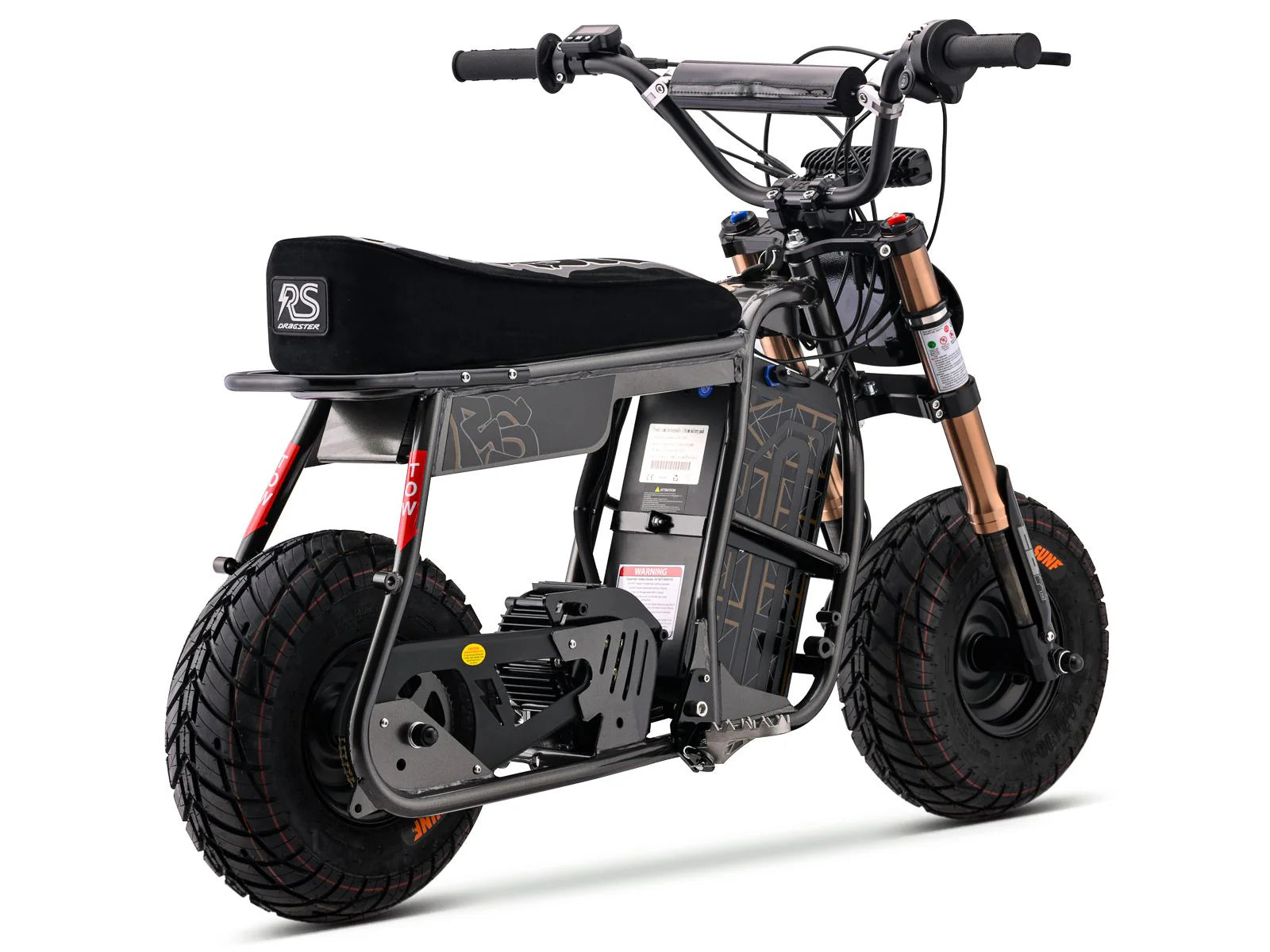

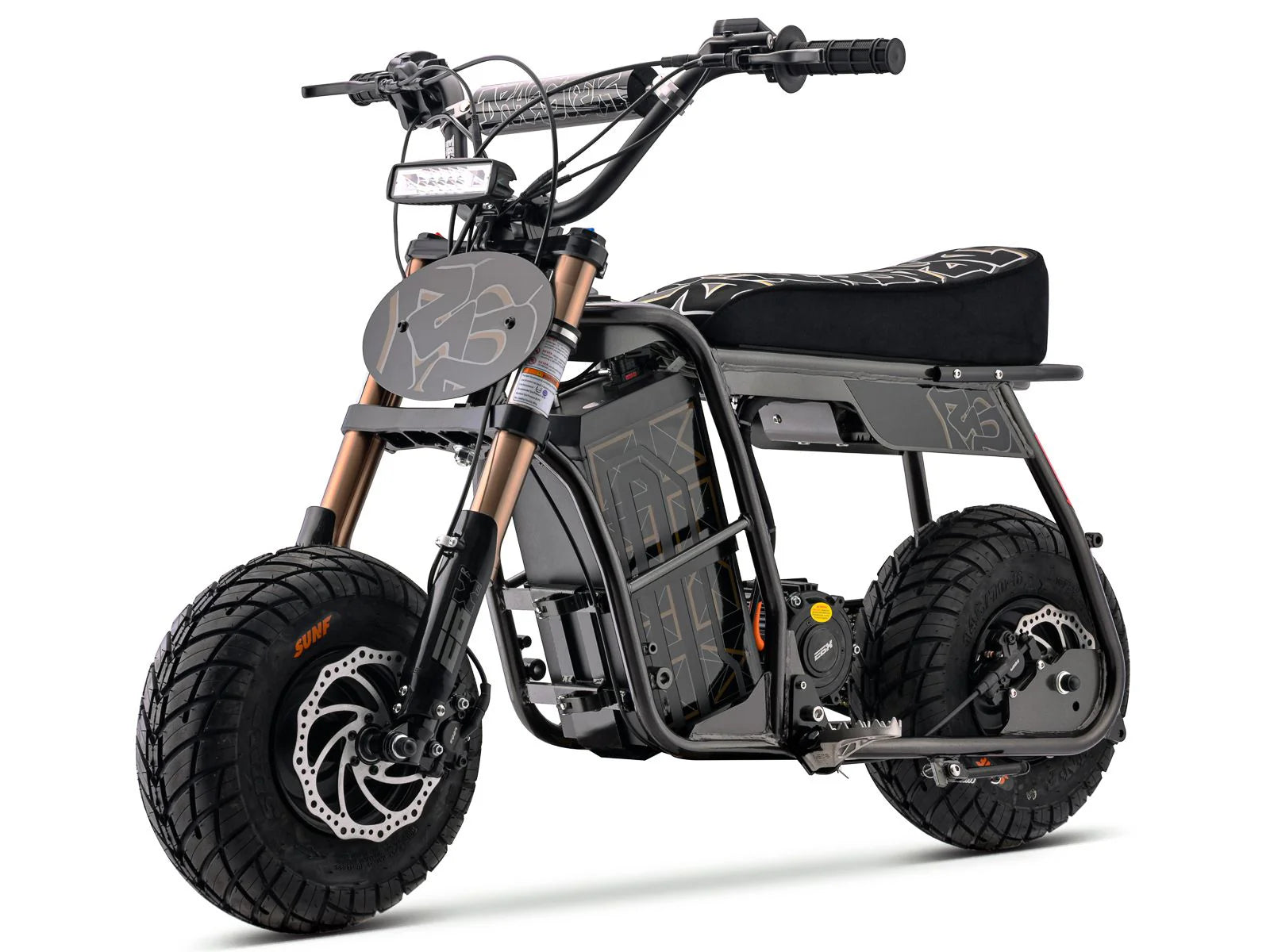

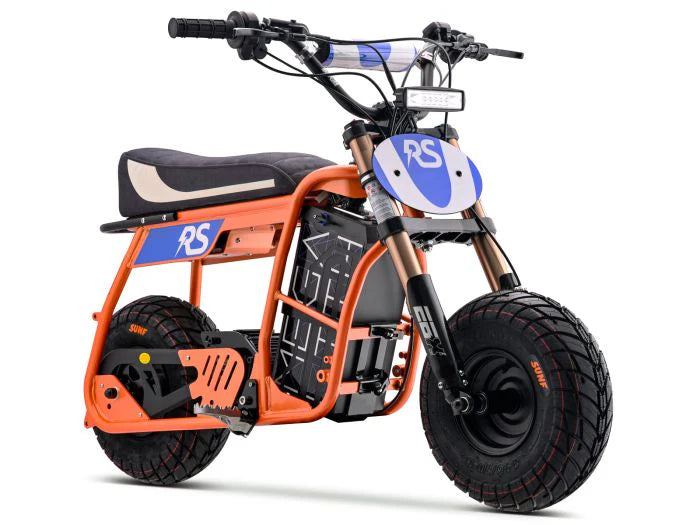

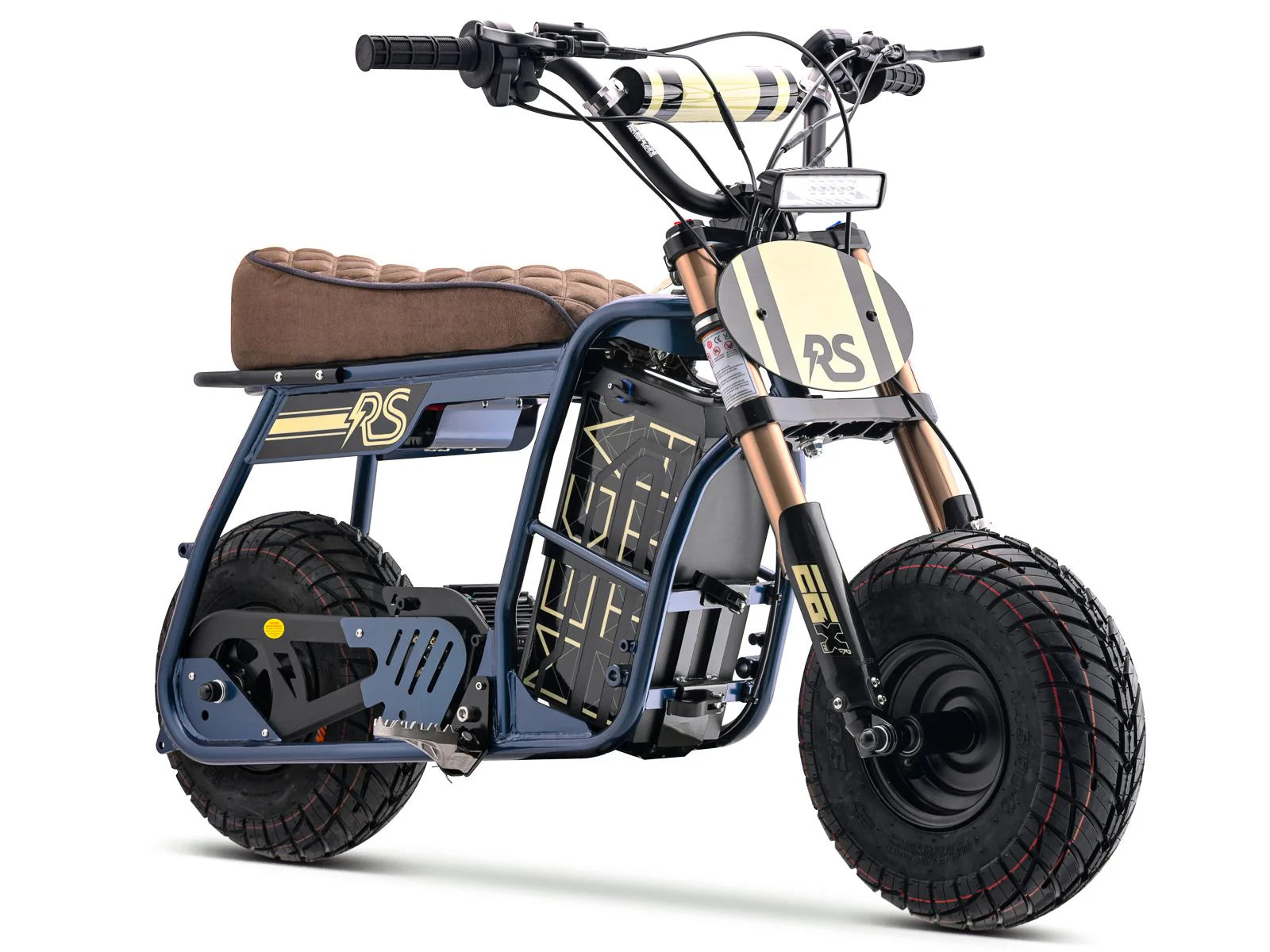

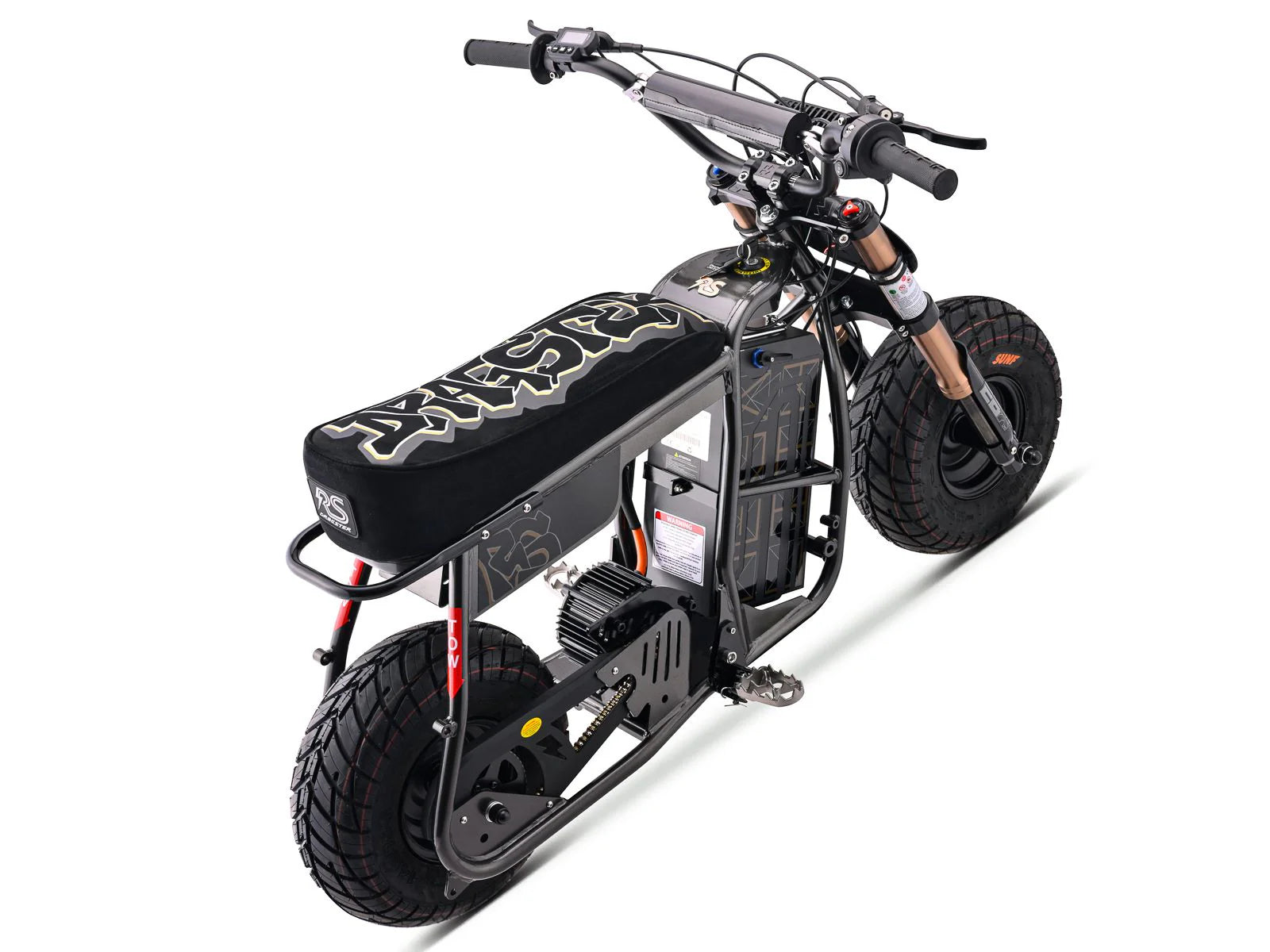

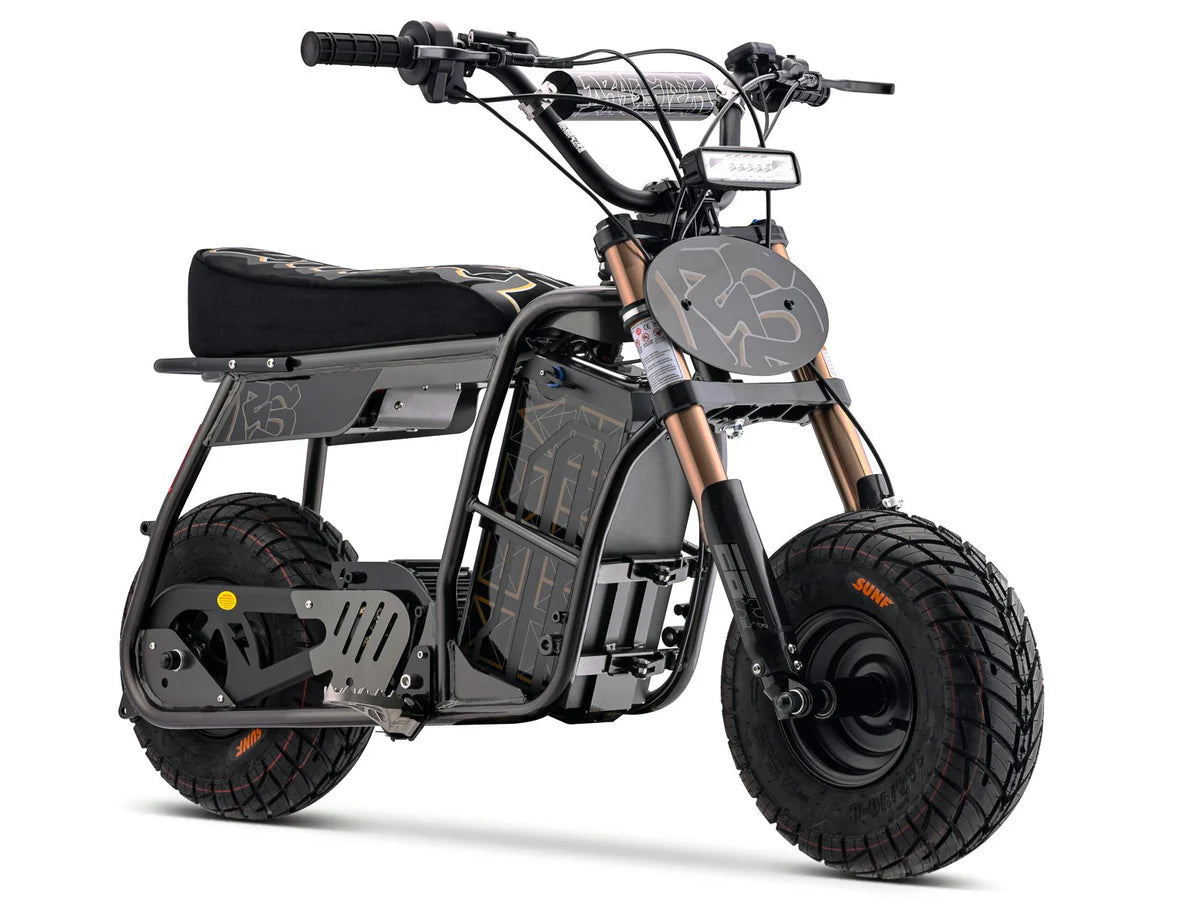

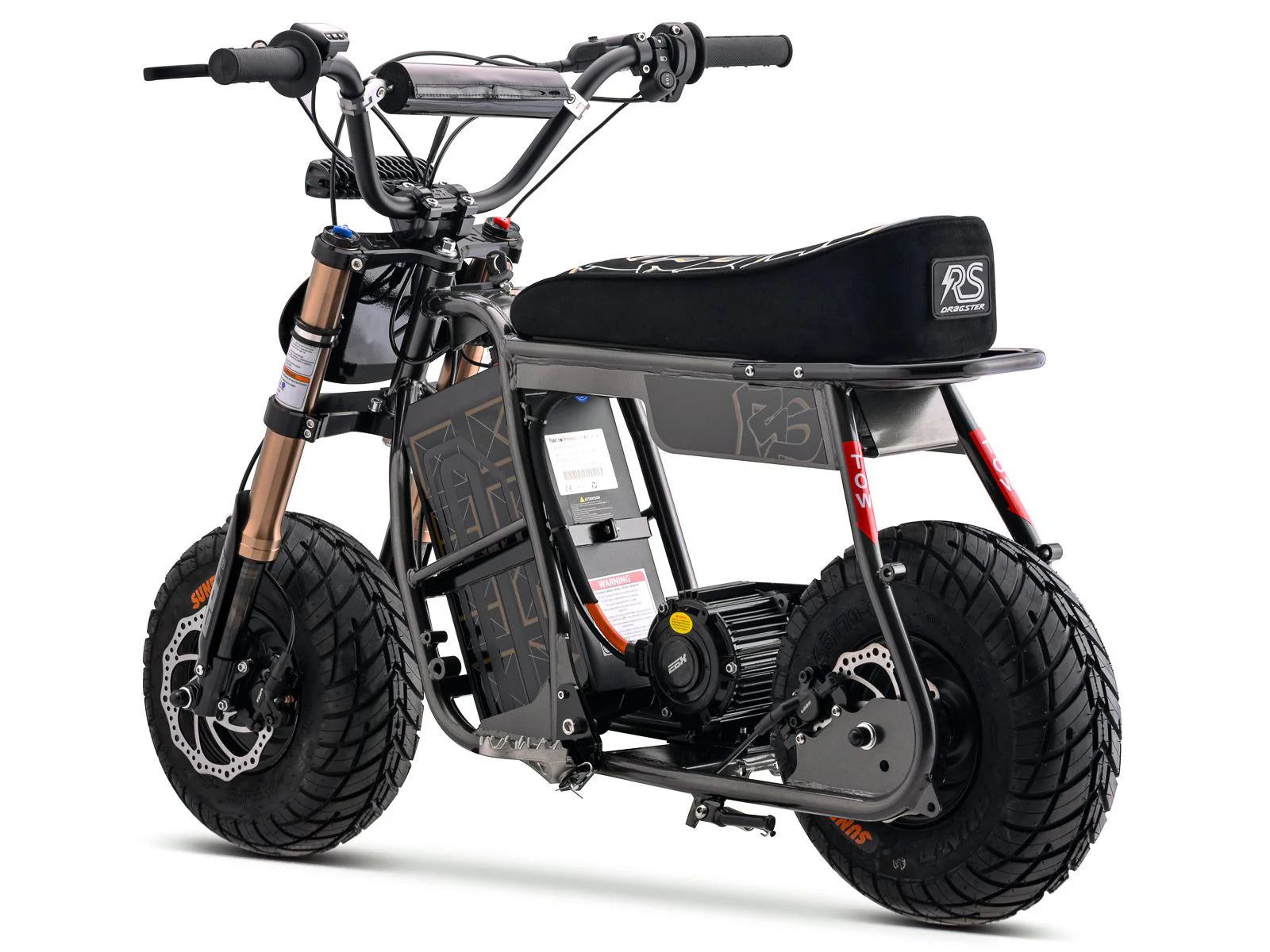

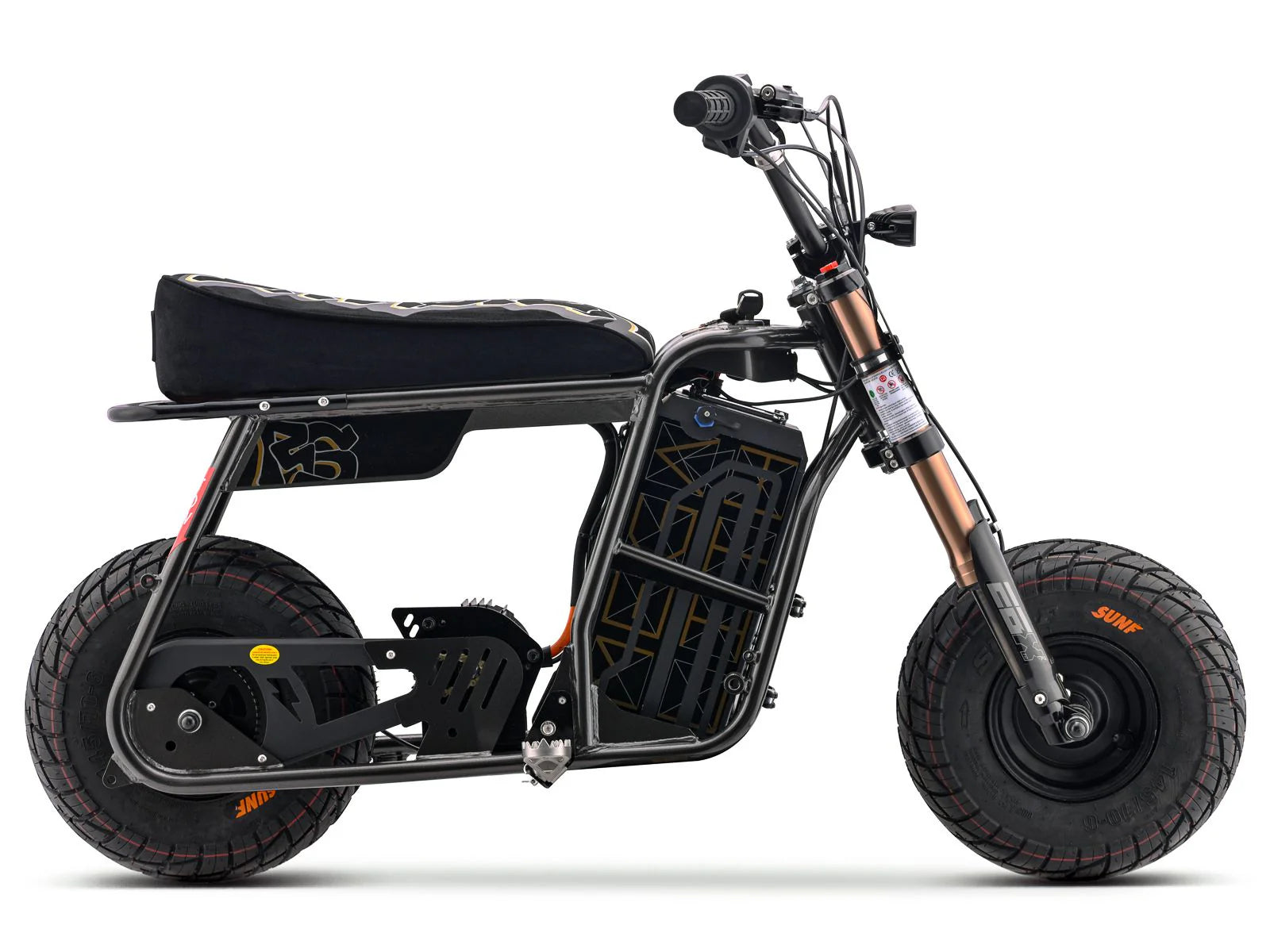

EBOX Dragster RS 72V 5400W

The EBOX Dragster RS uses a 5.4kW rated motor and 72V 25Ah battery. It adds inverted front suspension, an LED headlight and an RS wedge seat to the compact Dragster platform, with hydraulic disc brakes and three riding modes.

Features

• Three selectable riding modes
• Encoder-equipped PMSM motor
• Hydraulic disc brakes
• LED headlight and USB device charging

Specifications

• Motor output: 5.4kW rated / 6.3kW peak
• Battery: 72V 25Ah
• Motor type: EBX PMSM with encoder and temperature feedback
• Controller: Fardriver 80A
• Display: TFT with three riding modes
• Throttle: full twist
• Brakes: front and rear hydraulic discs
• Frame: full-duplex steel
• Wheels: 6-inch front and rear
• Tyres: 145/70-6 SUNF
• Chain: 219H 108L
• Gearing: 10T front / 55T rear
• Load capacity: 100kg
• Ground clearance: 120mm
• Wheelbase: 910mm
• Seat height: 610mm
• Bike weight: 49kg
• Quick-release battery system
• Two footpeg mounting positions
• LED headlight
• USB-A and USB-C charging ports
• Charger output: 84V 6A
• Front suspension: inverted fork, 100mm travel
• Brake rotors: 180mm front / 160mm rear
• Seat: suede RS wedge style
• Sealed wiring harness with automotive connectors.
• TFT instrument display includes an odometer and fault-code analysis.
• Charger AC input: 100–240V.
• Maximum motor speed: 9,000rpm.
• Supplier-stated charge time: 4–5 hours.
• Supplier-stated range: 45–50km.
• Removable motor plate, integrated chain tensioner and loop-tail frame layout.
• Frame-mounted stunt-peg compatibility.
• Handlebar height: 825mm.
• Battery management system, steel battery casing, QS8 connector and air-breaker switch.
• Battery cell format: 21700.
• CNC-machined 6061-T6 triple clamps and bar risers; 35mm riser height.
• Bronze-anodised fork legs with black hardened stanchions.
• 6061-T6 handlebar, 29.5 × 7 inches, with three-piece crossbar and pad.

Range, speed and charging figures are supplier estimates, not guarantees. Actual results vary with riding conditions, load, settings and charging equipment.
