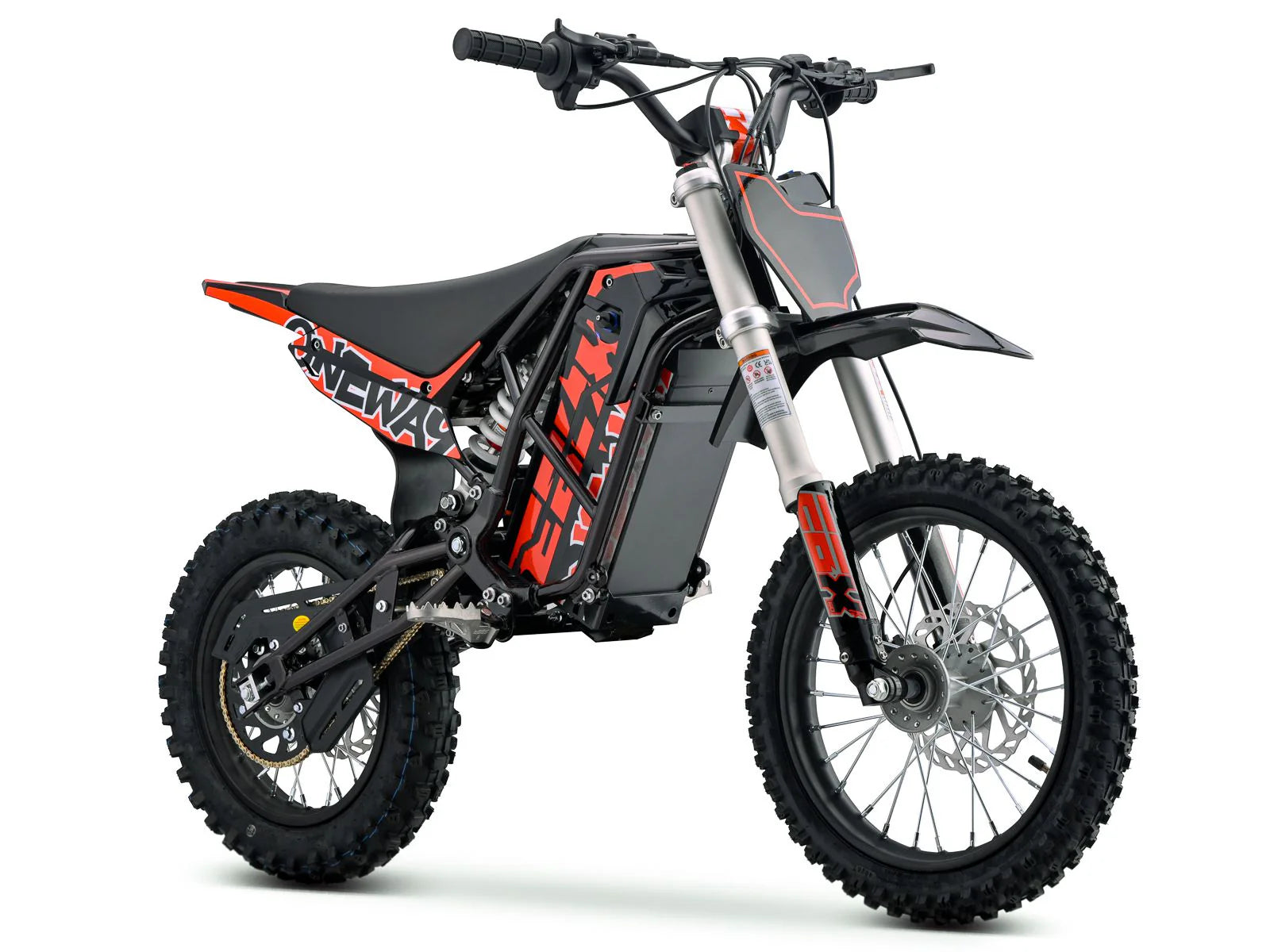

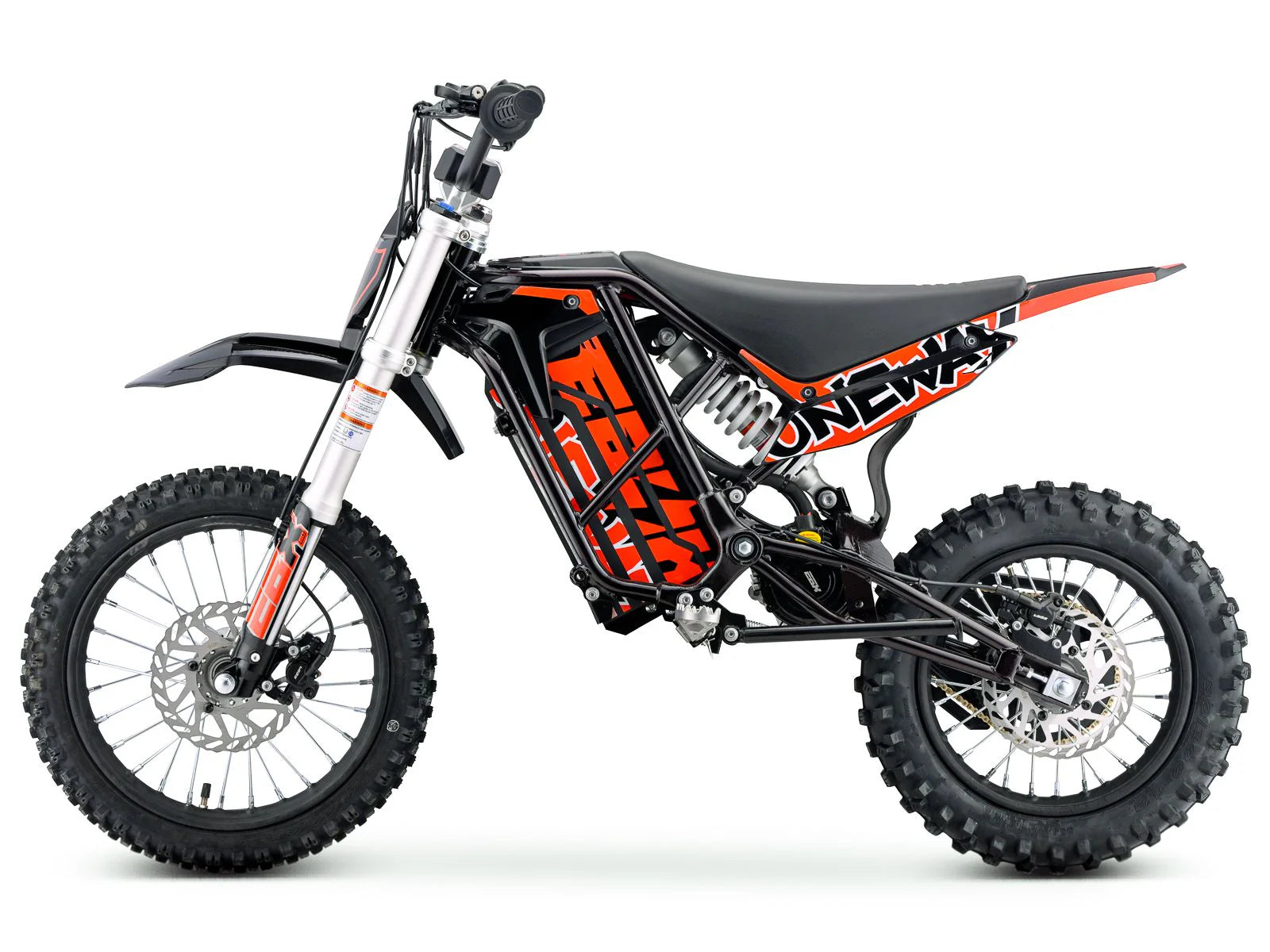

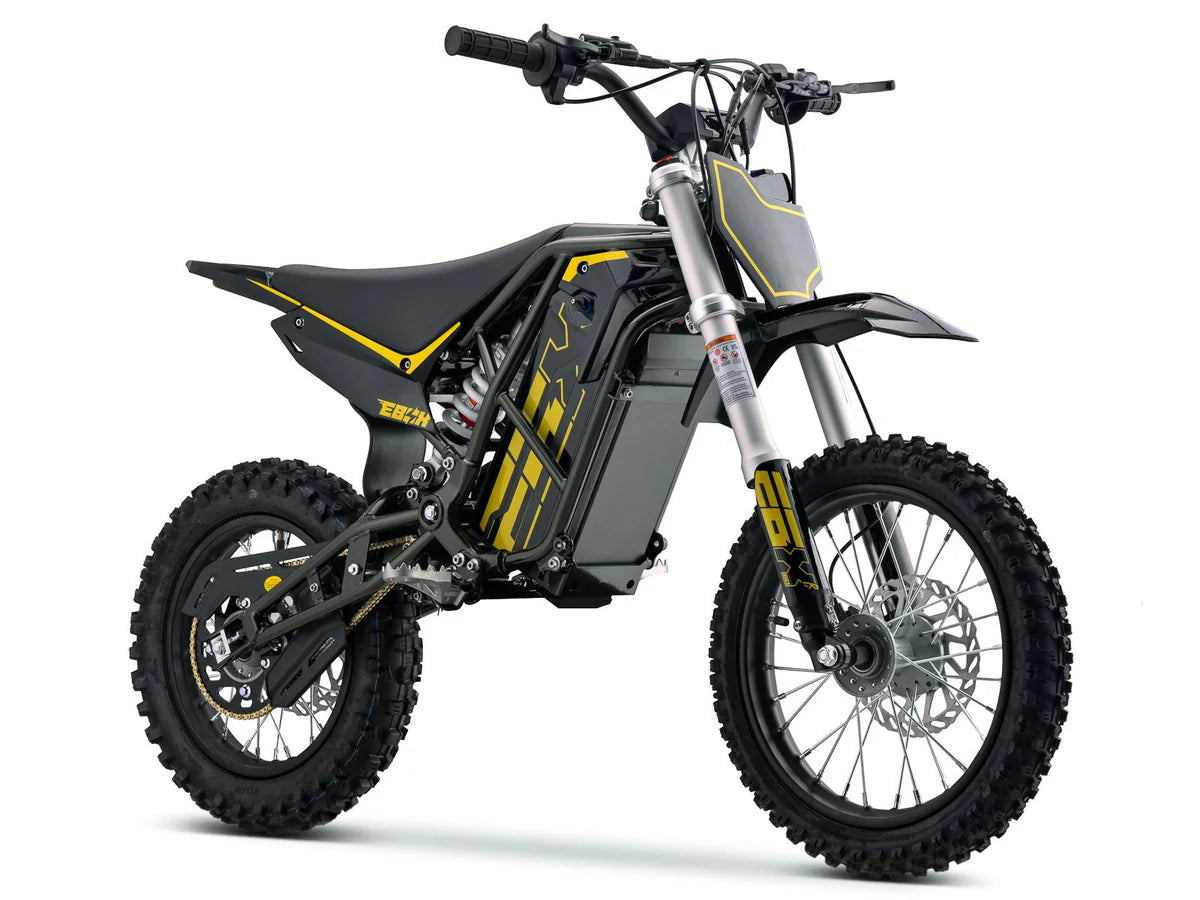

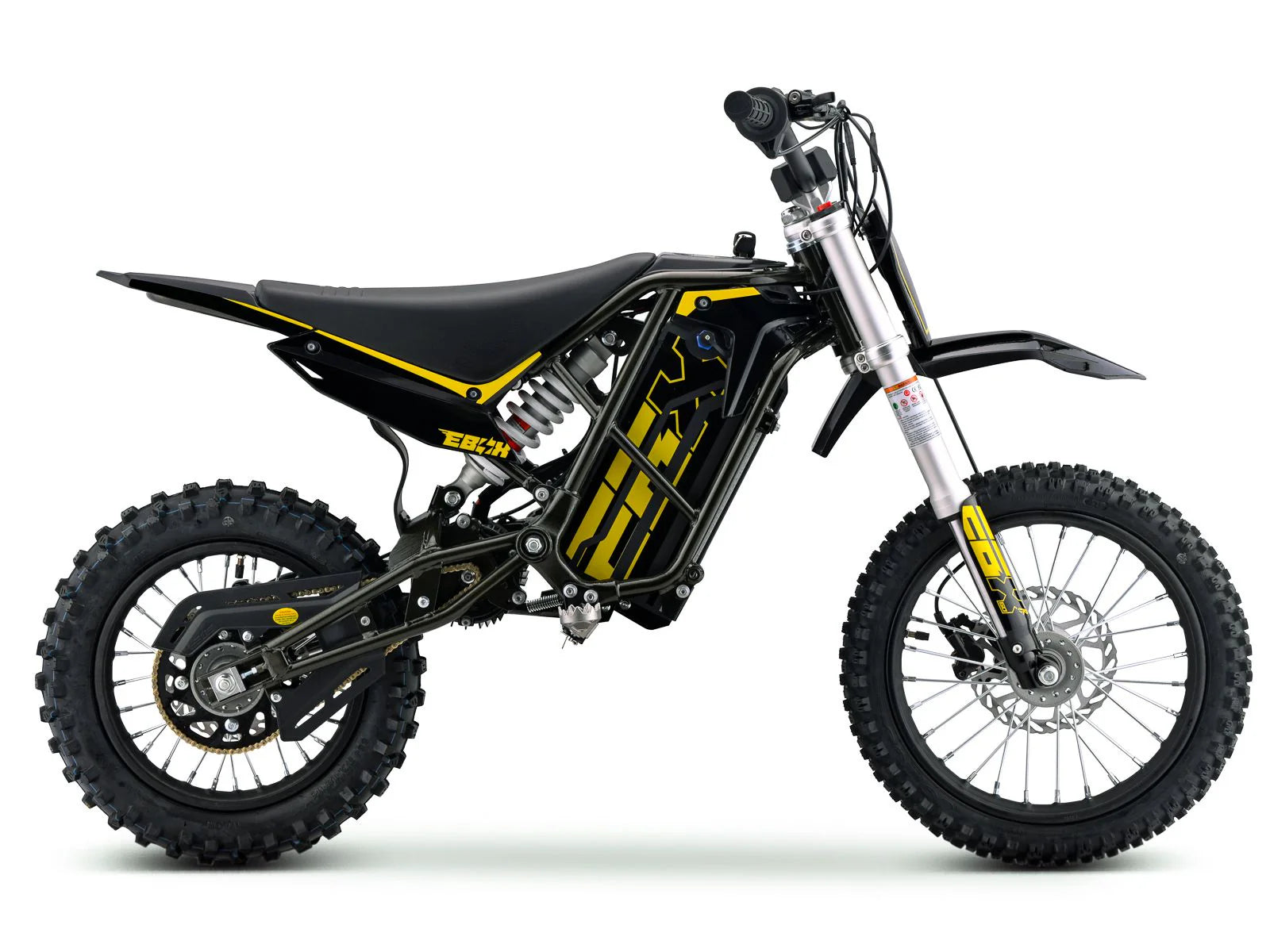

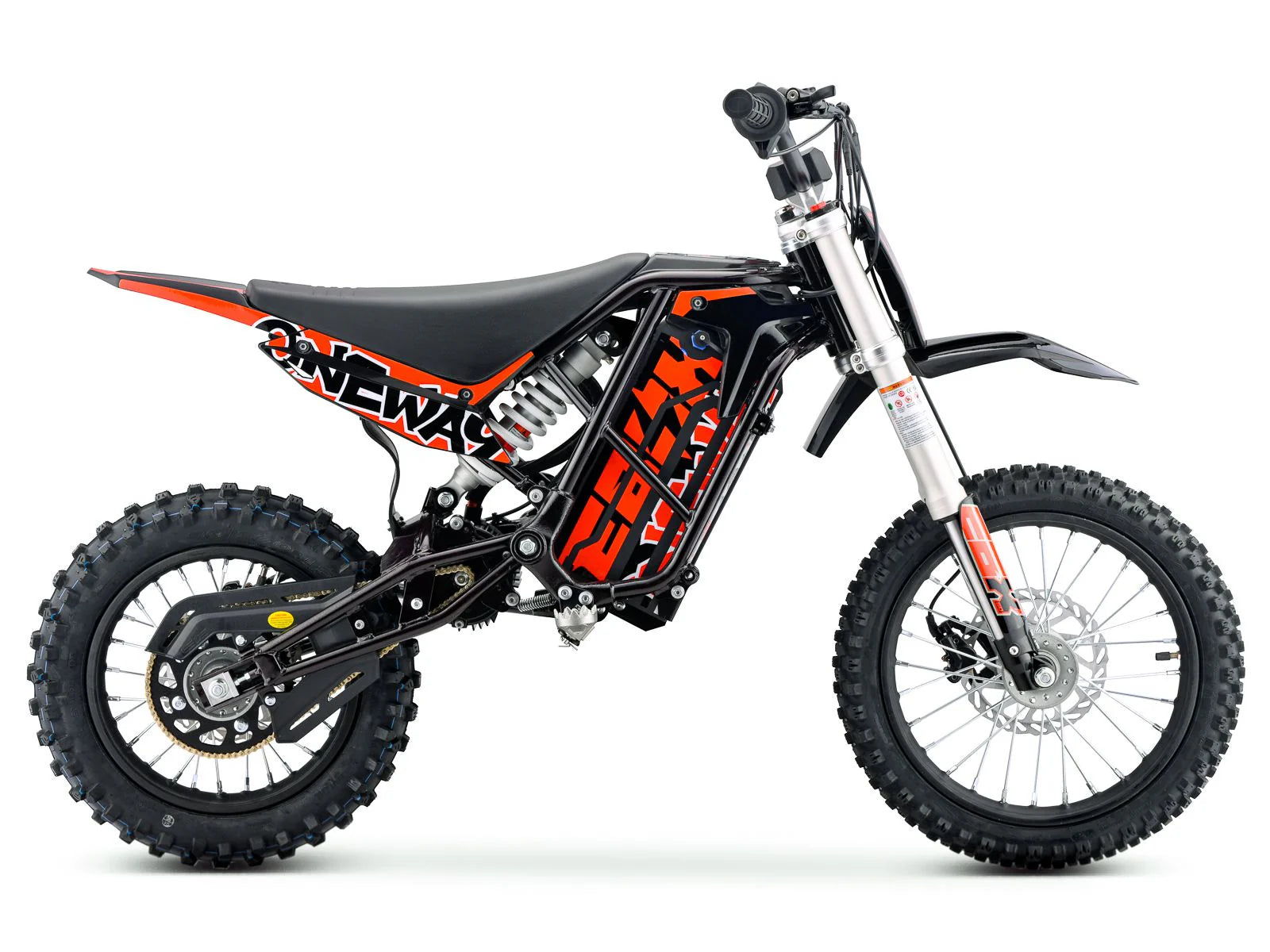

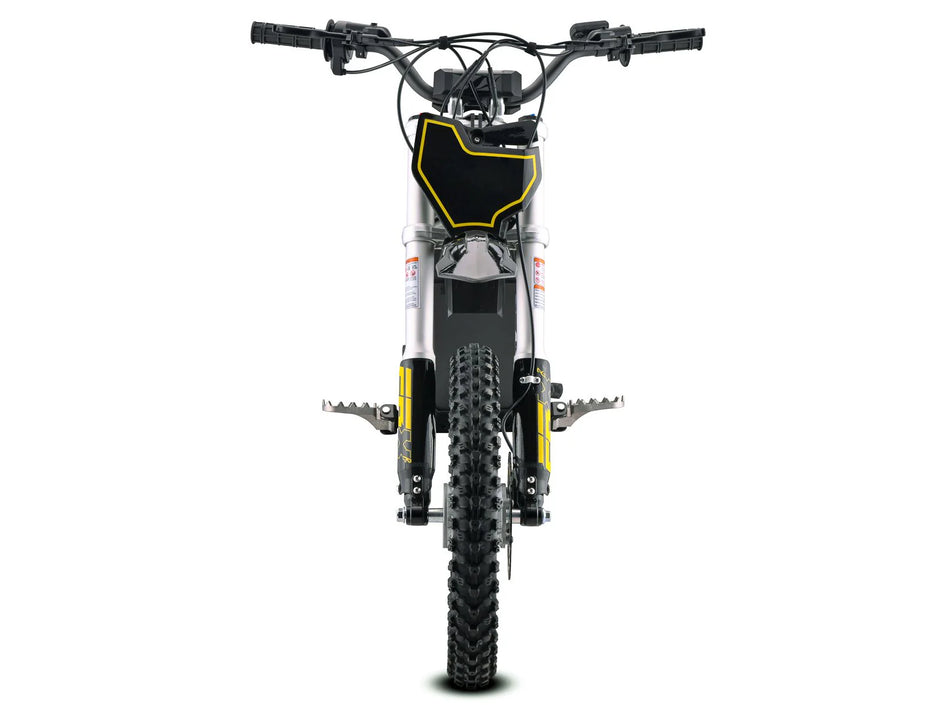

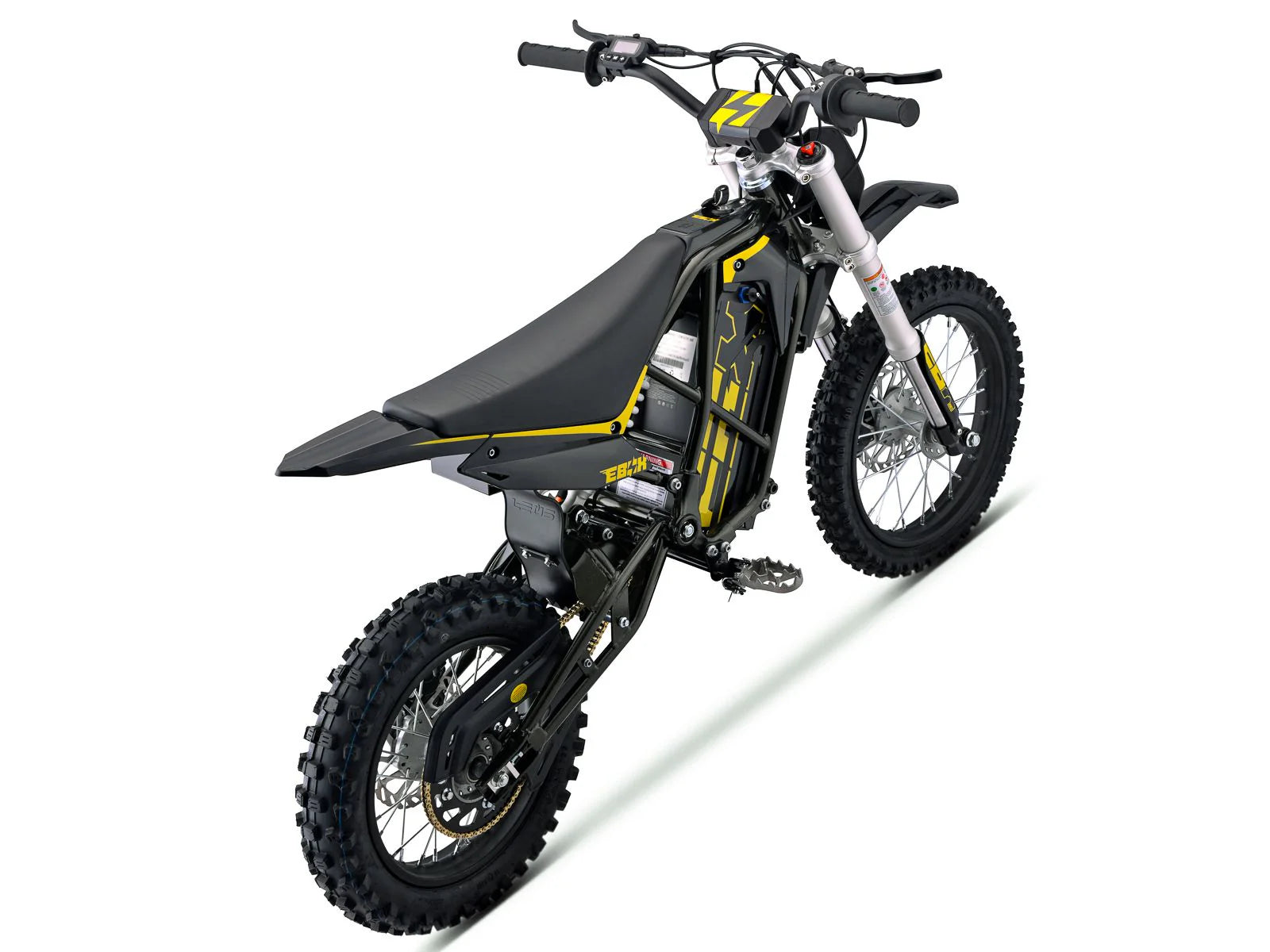

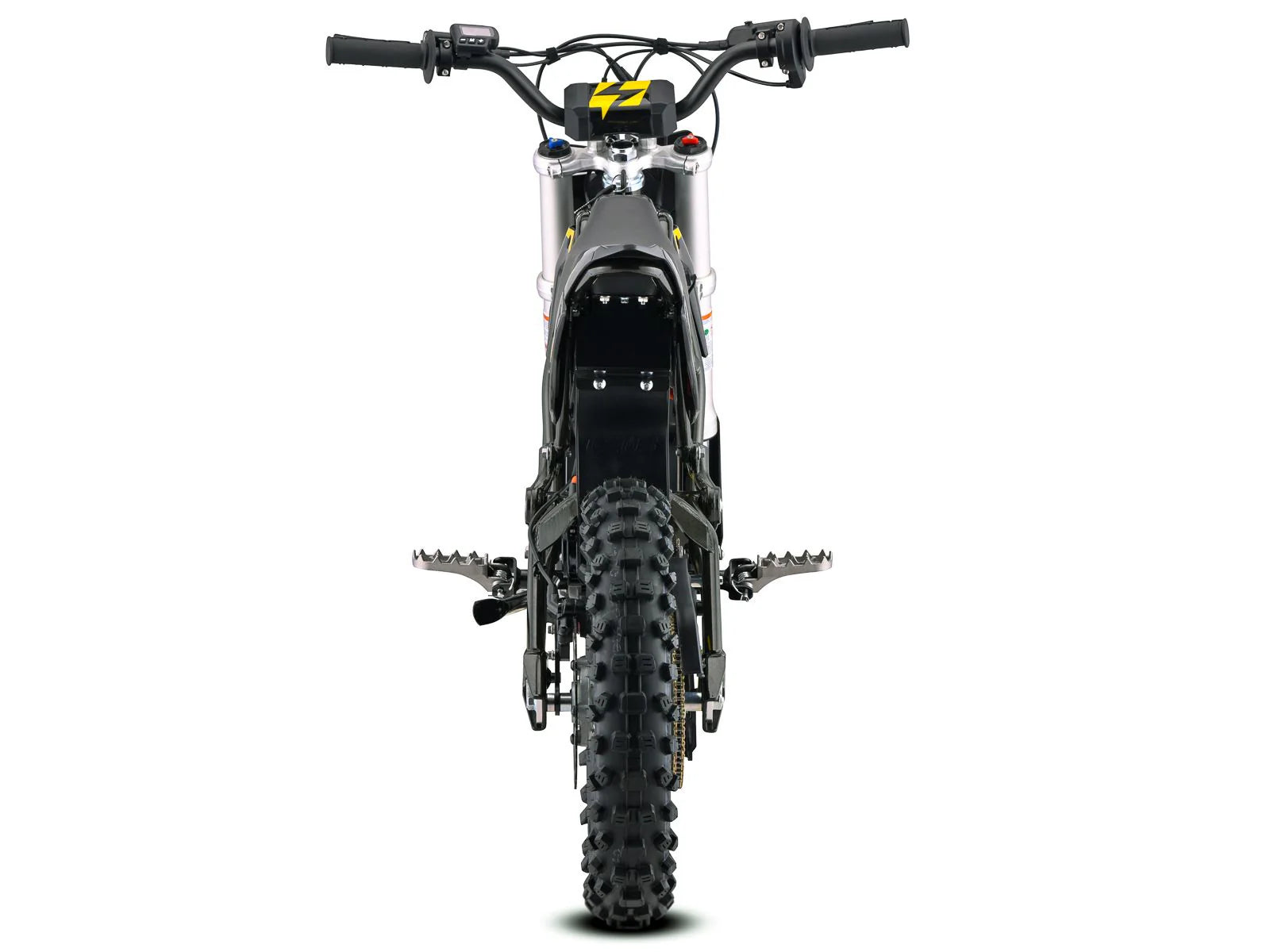

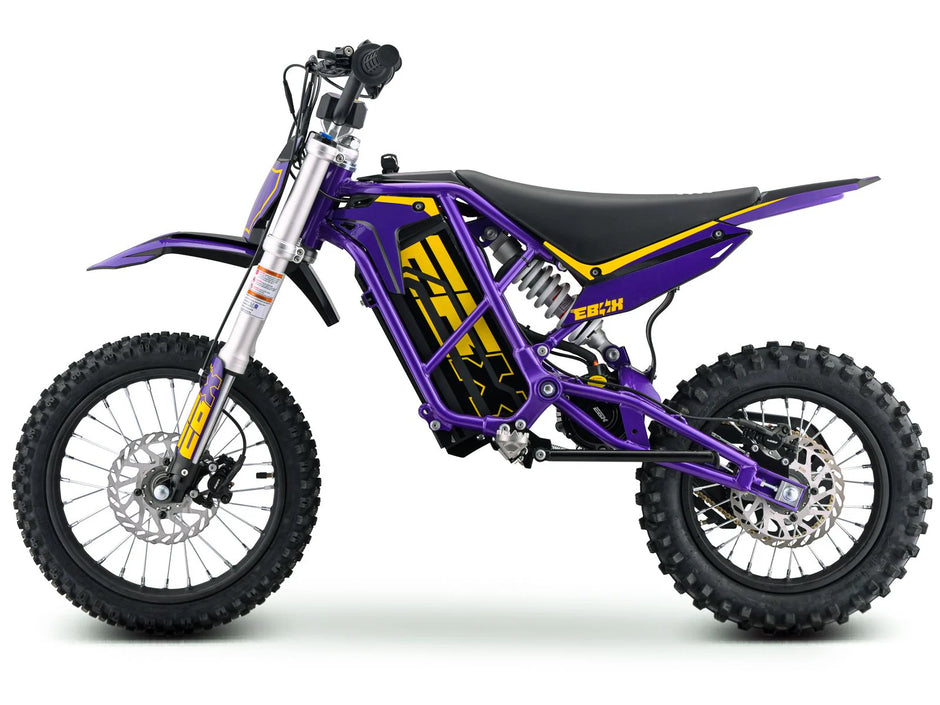

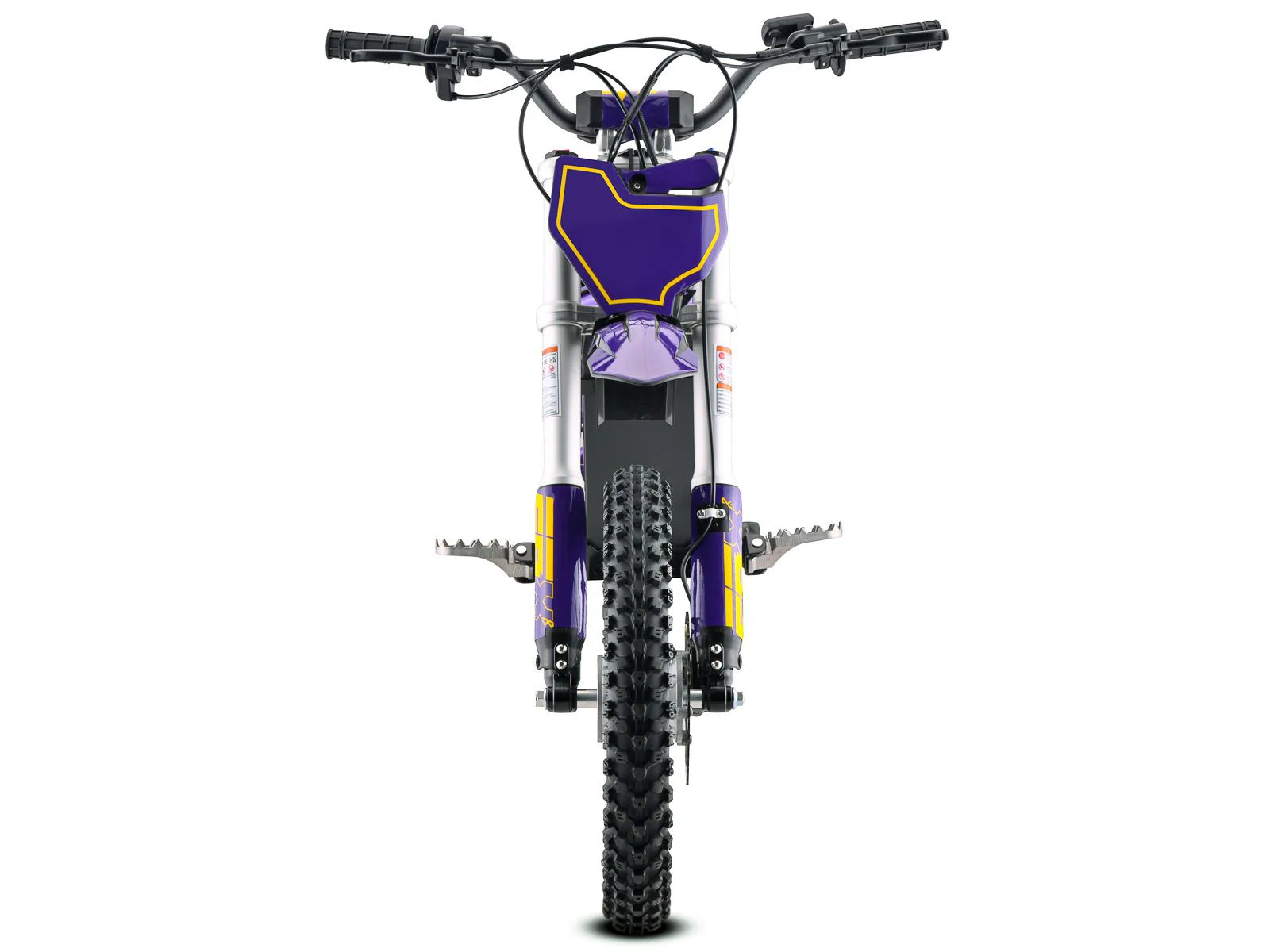

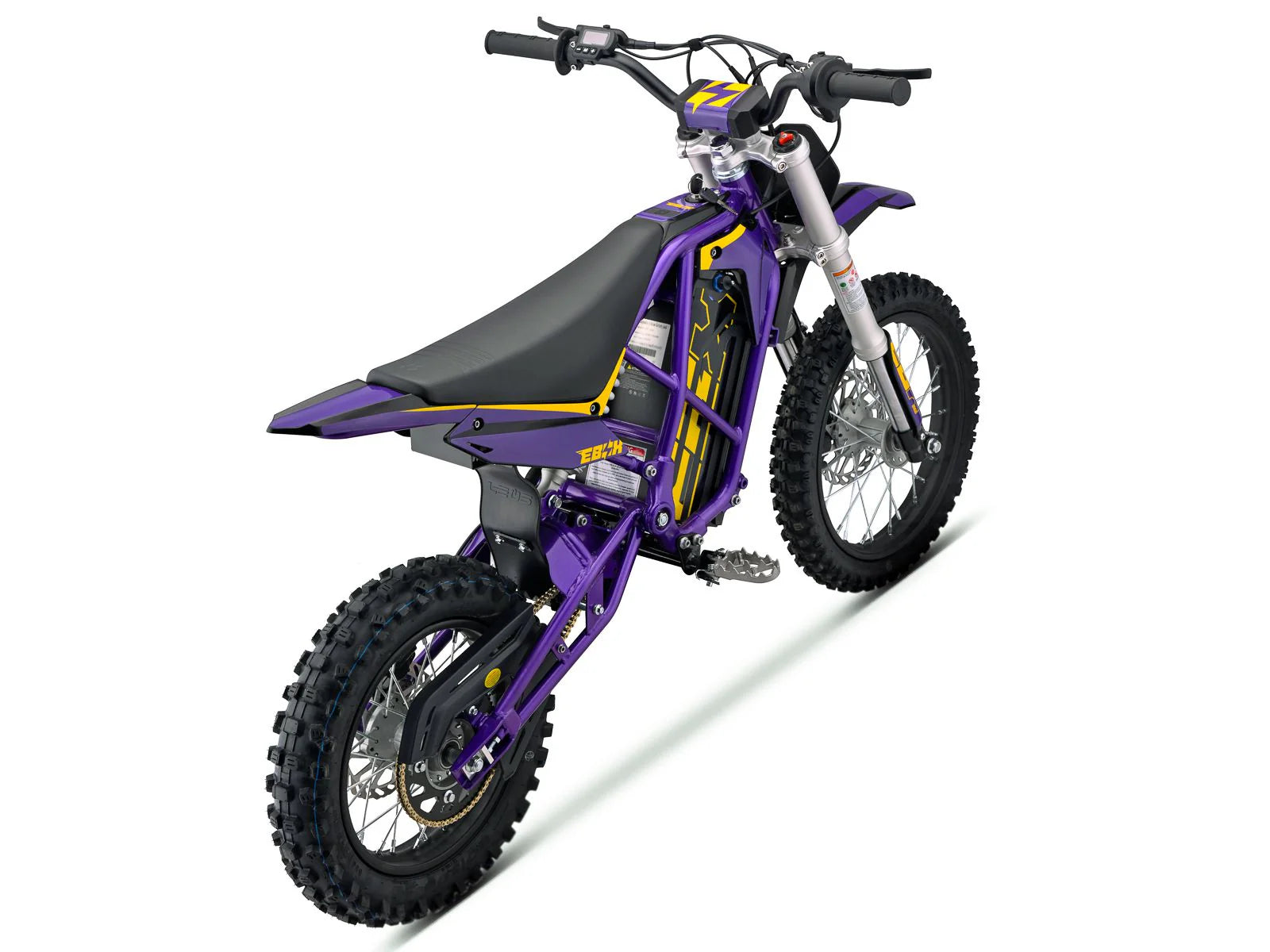

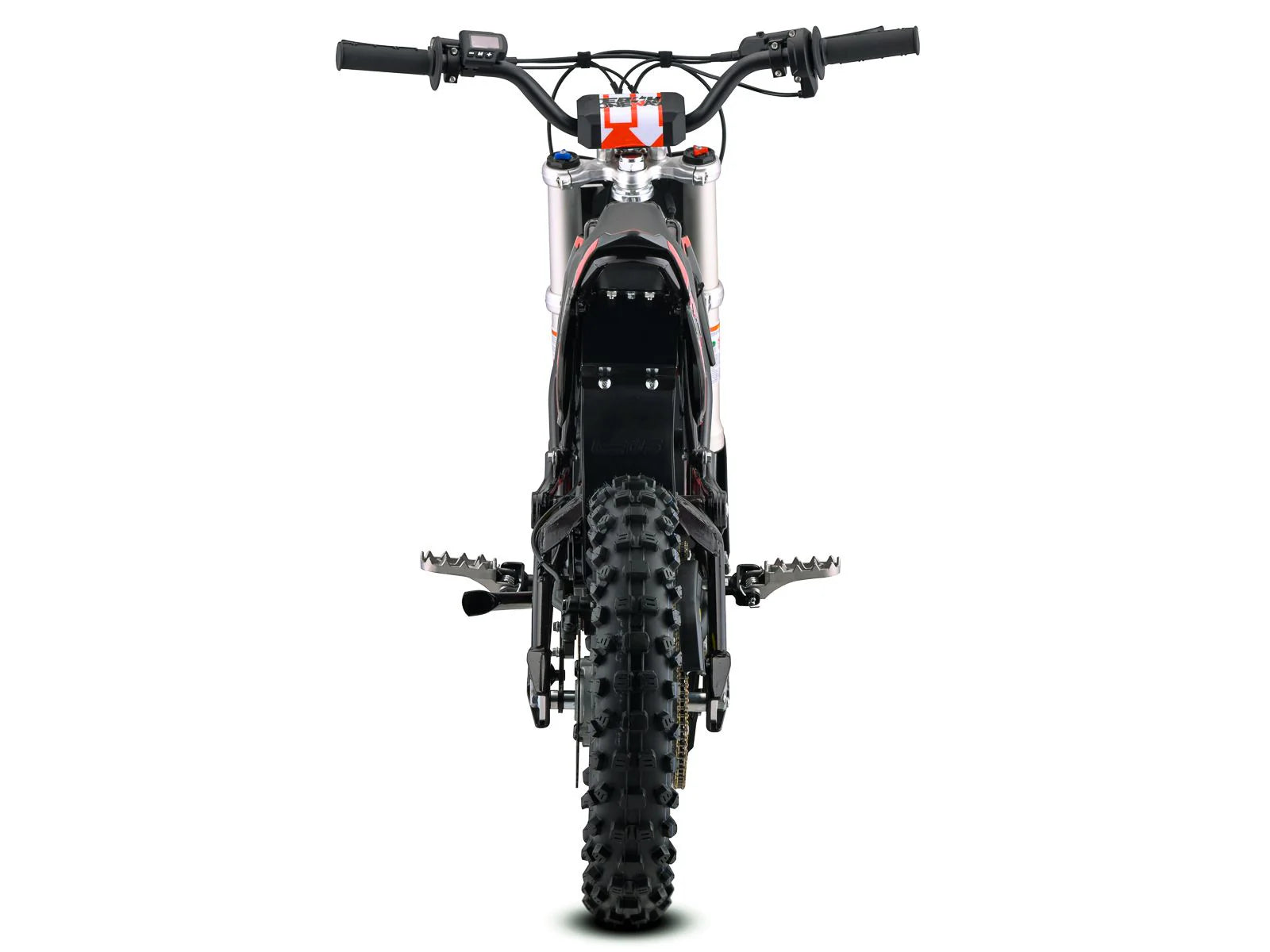

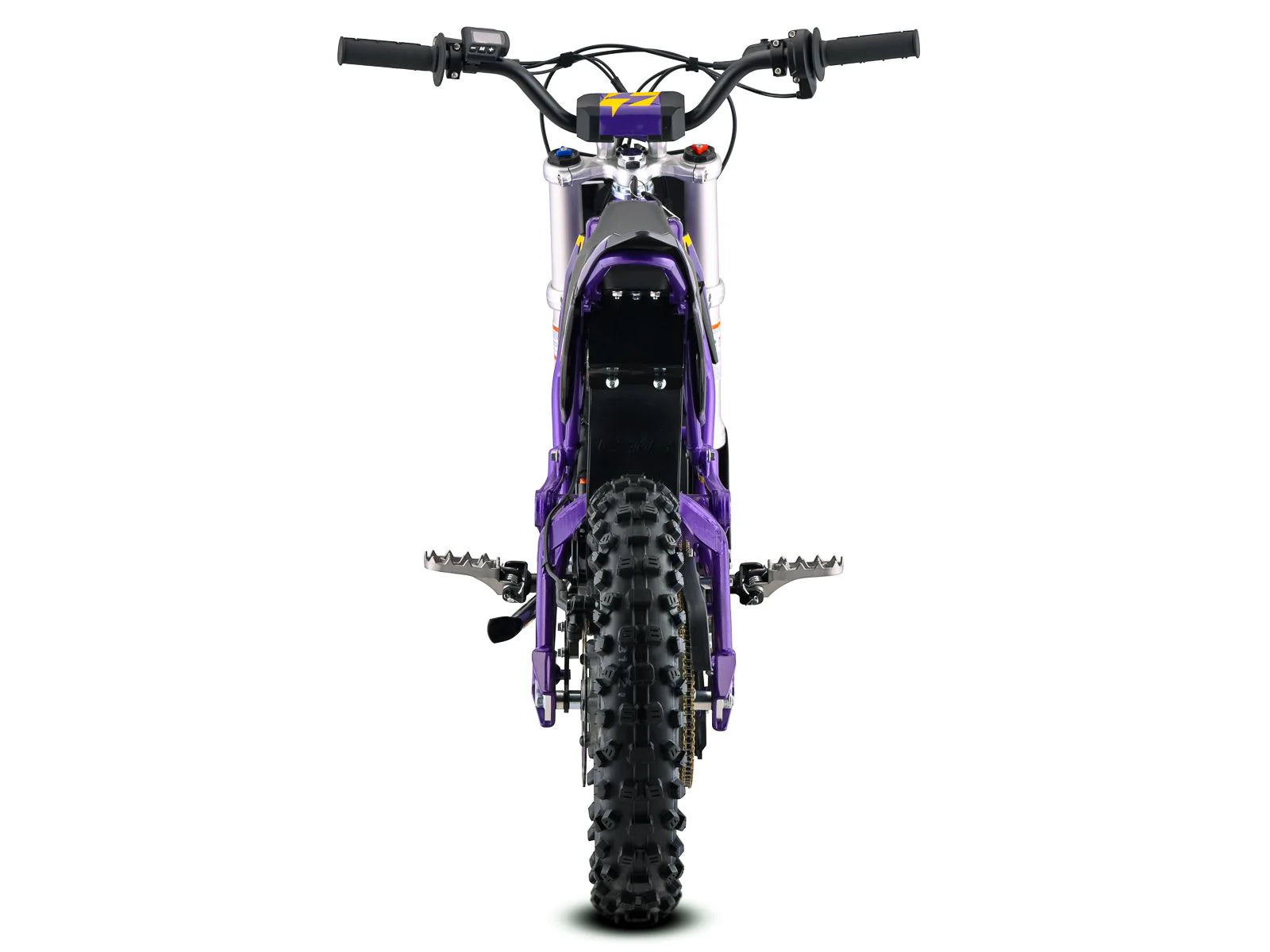

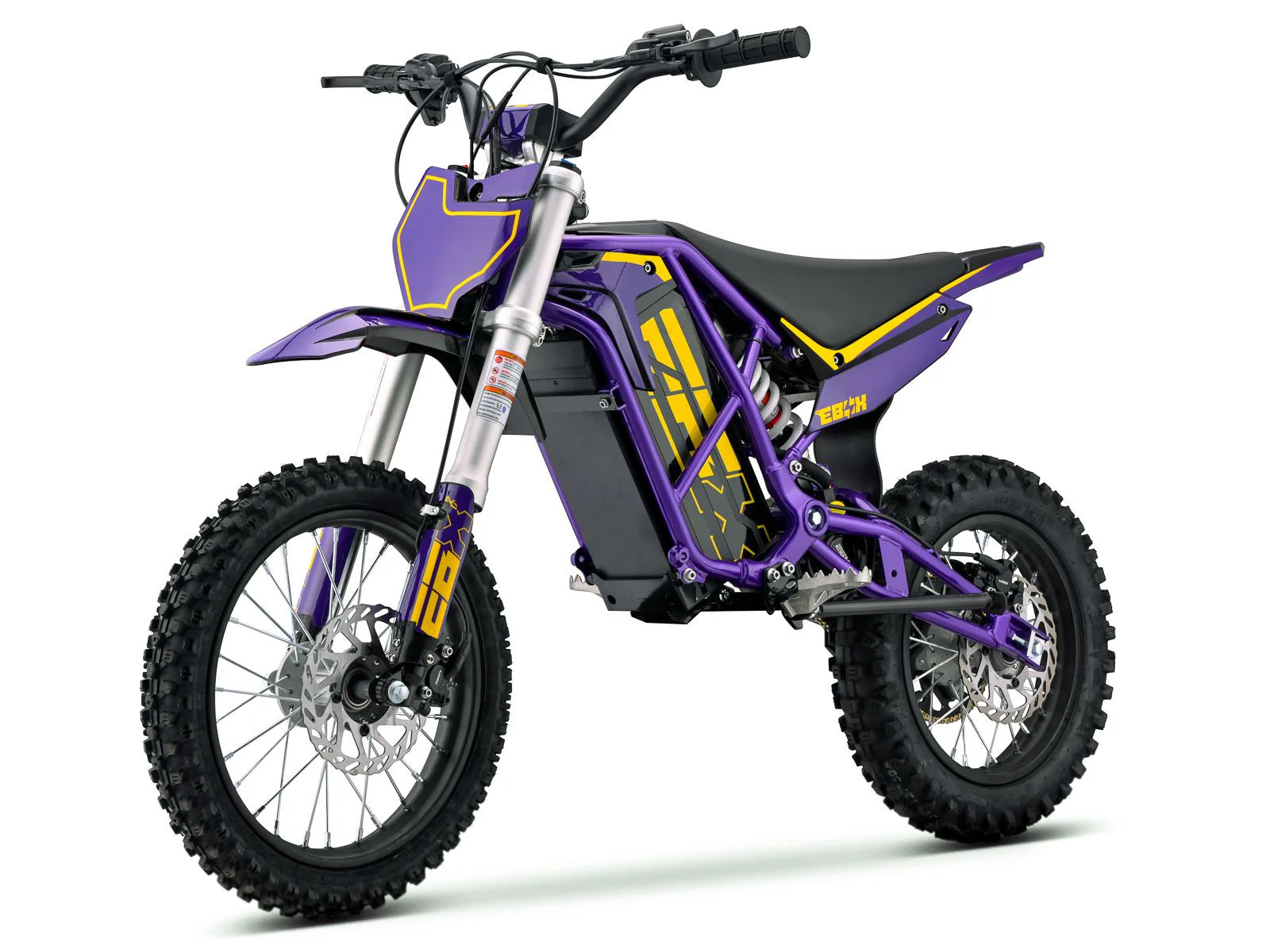

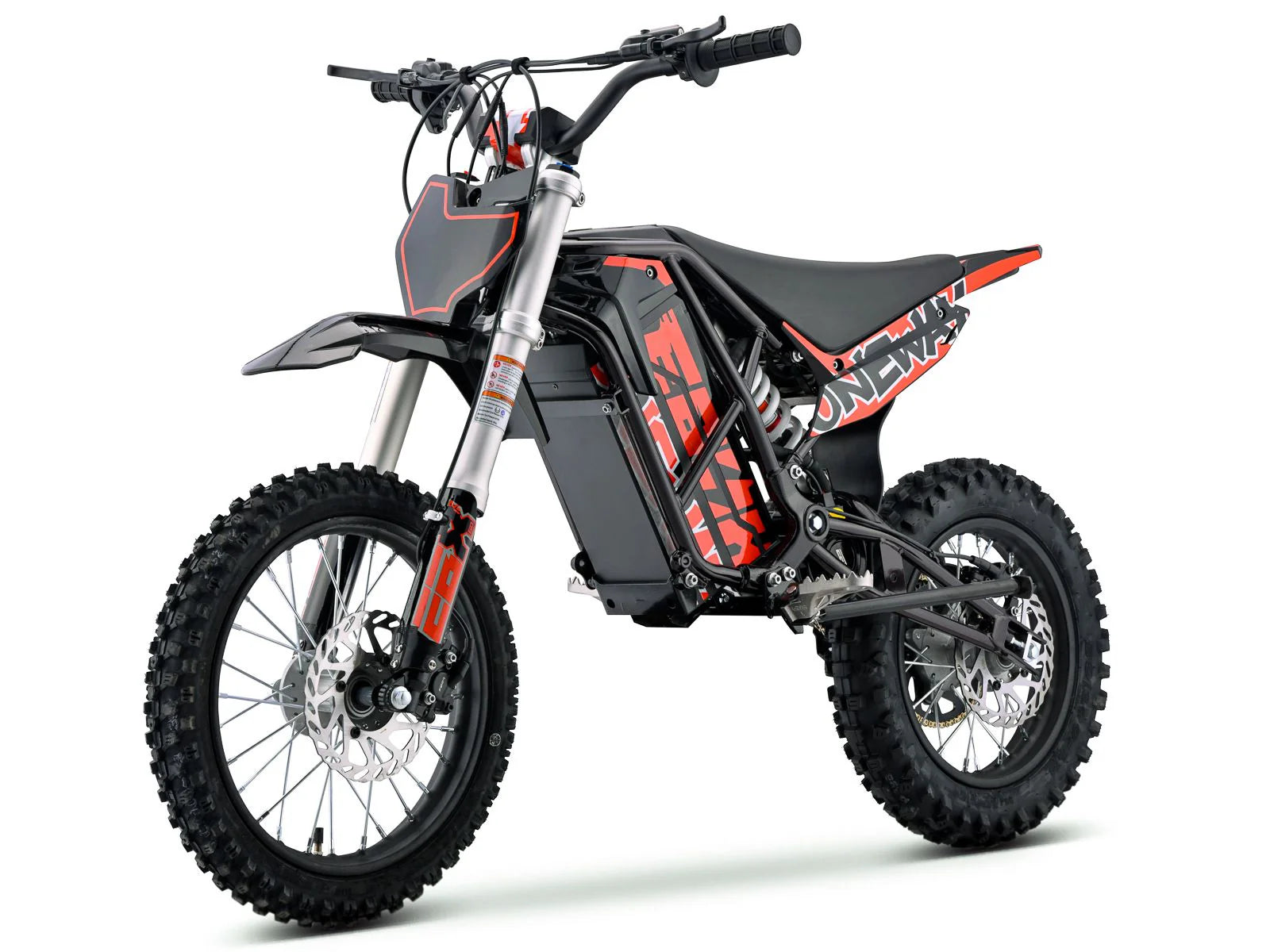

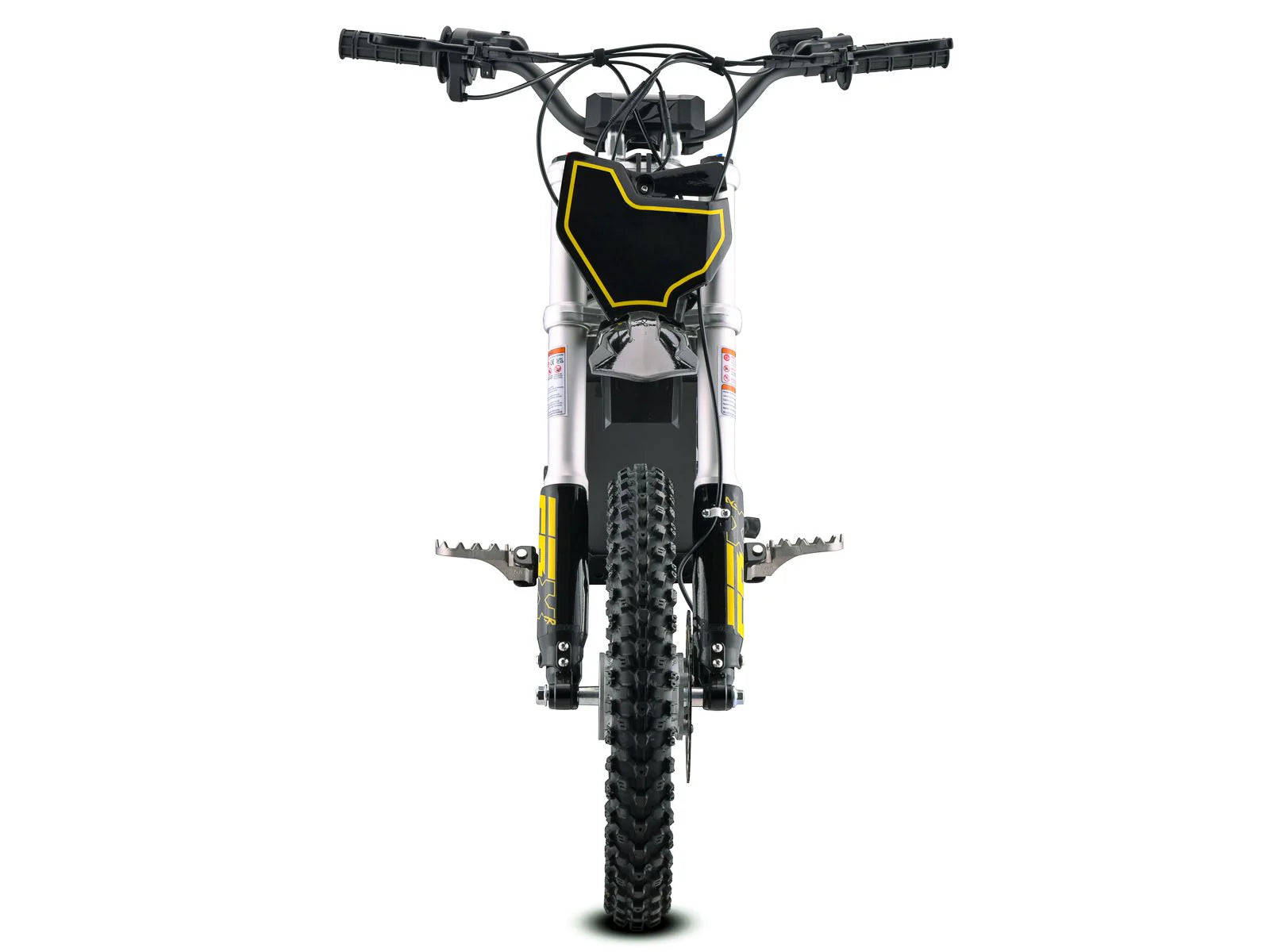

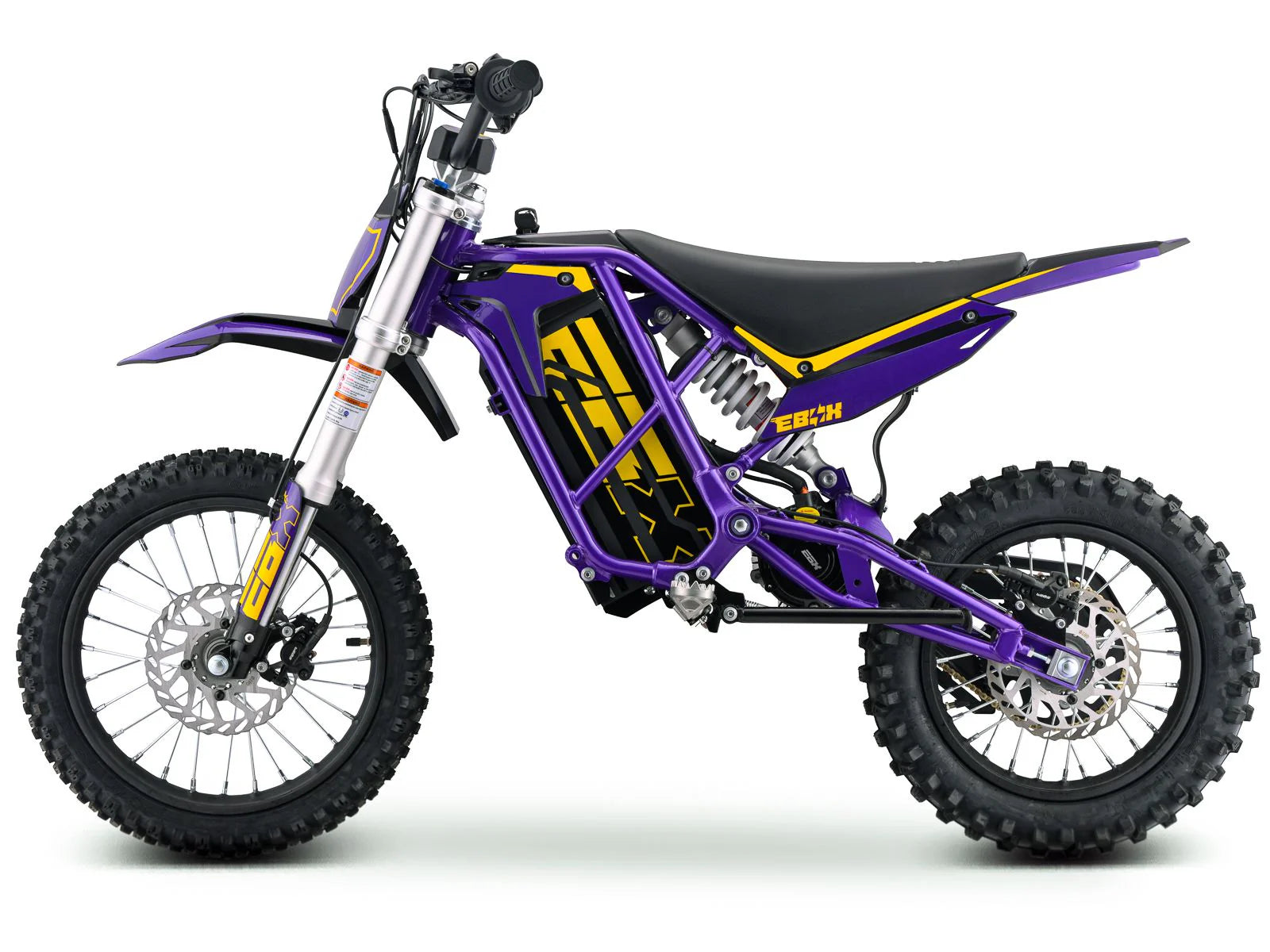

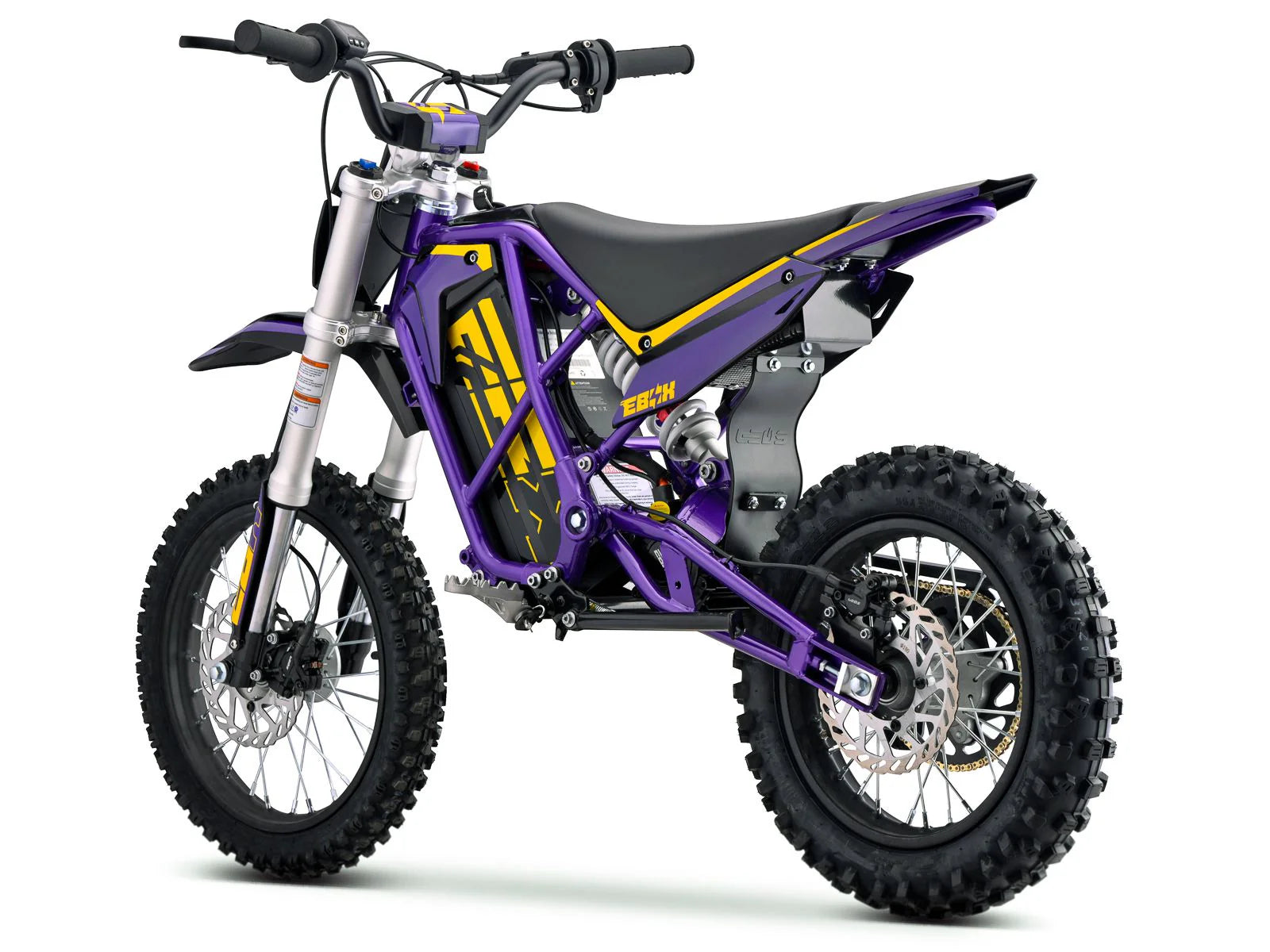

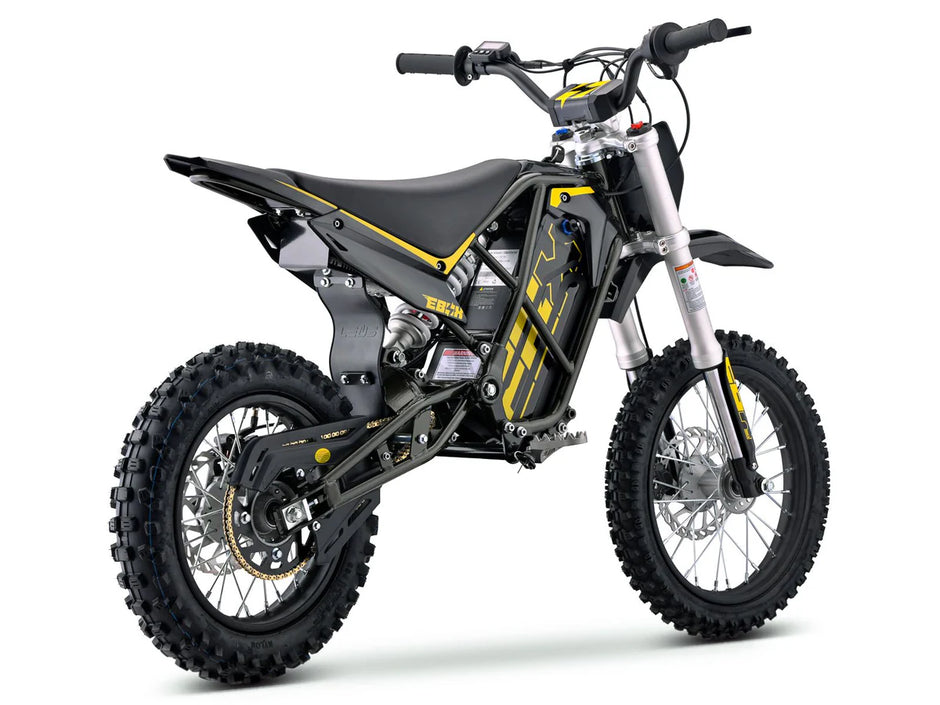

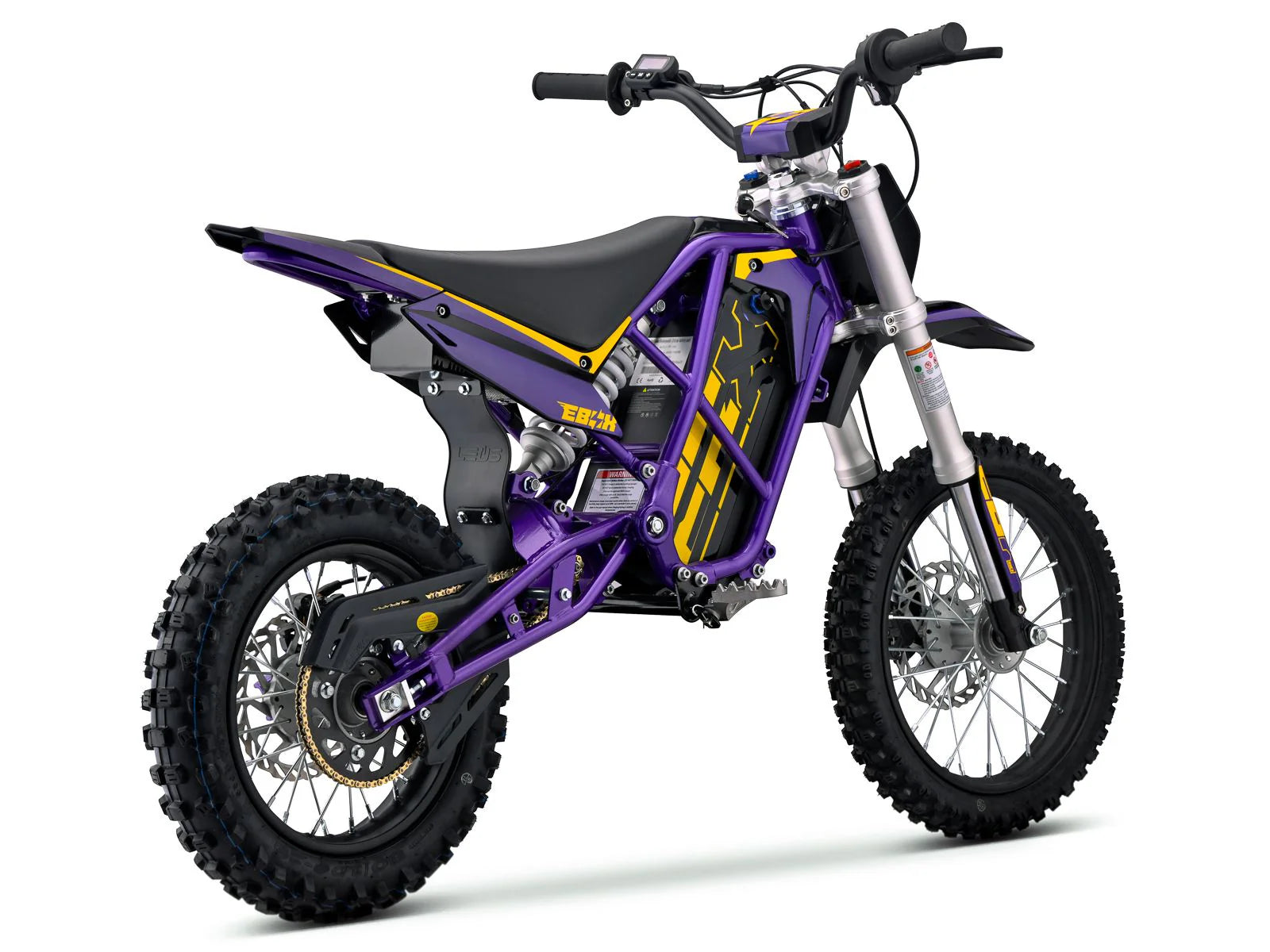

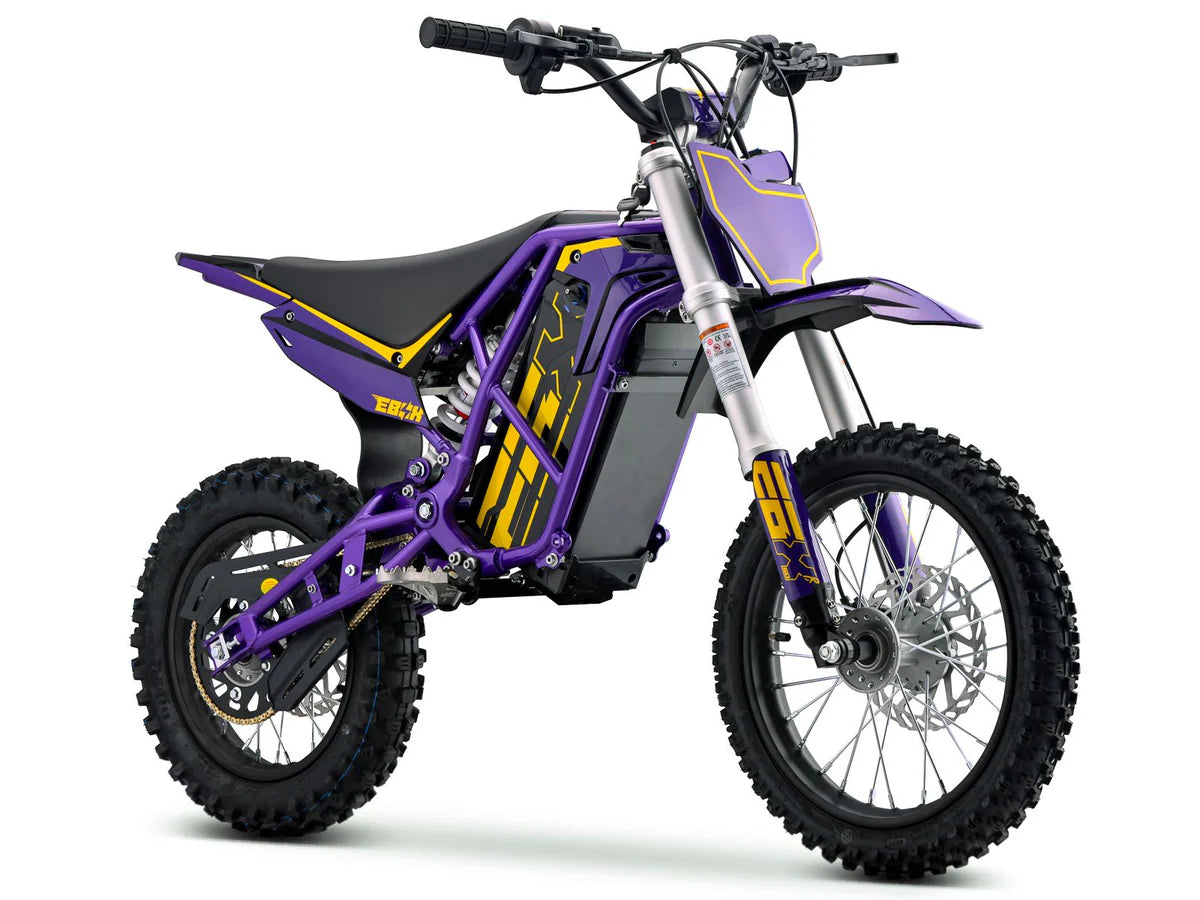

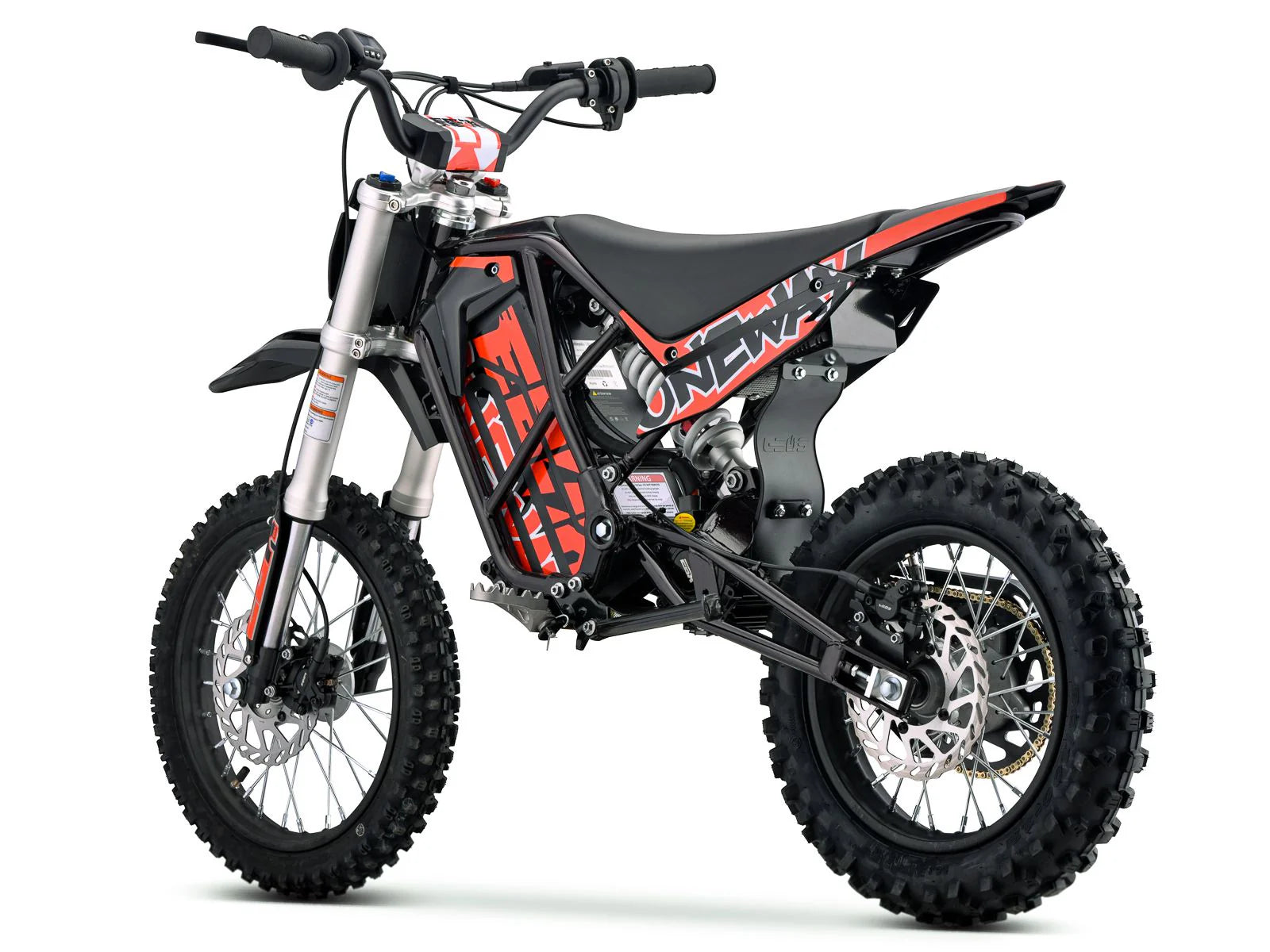

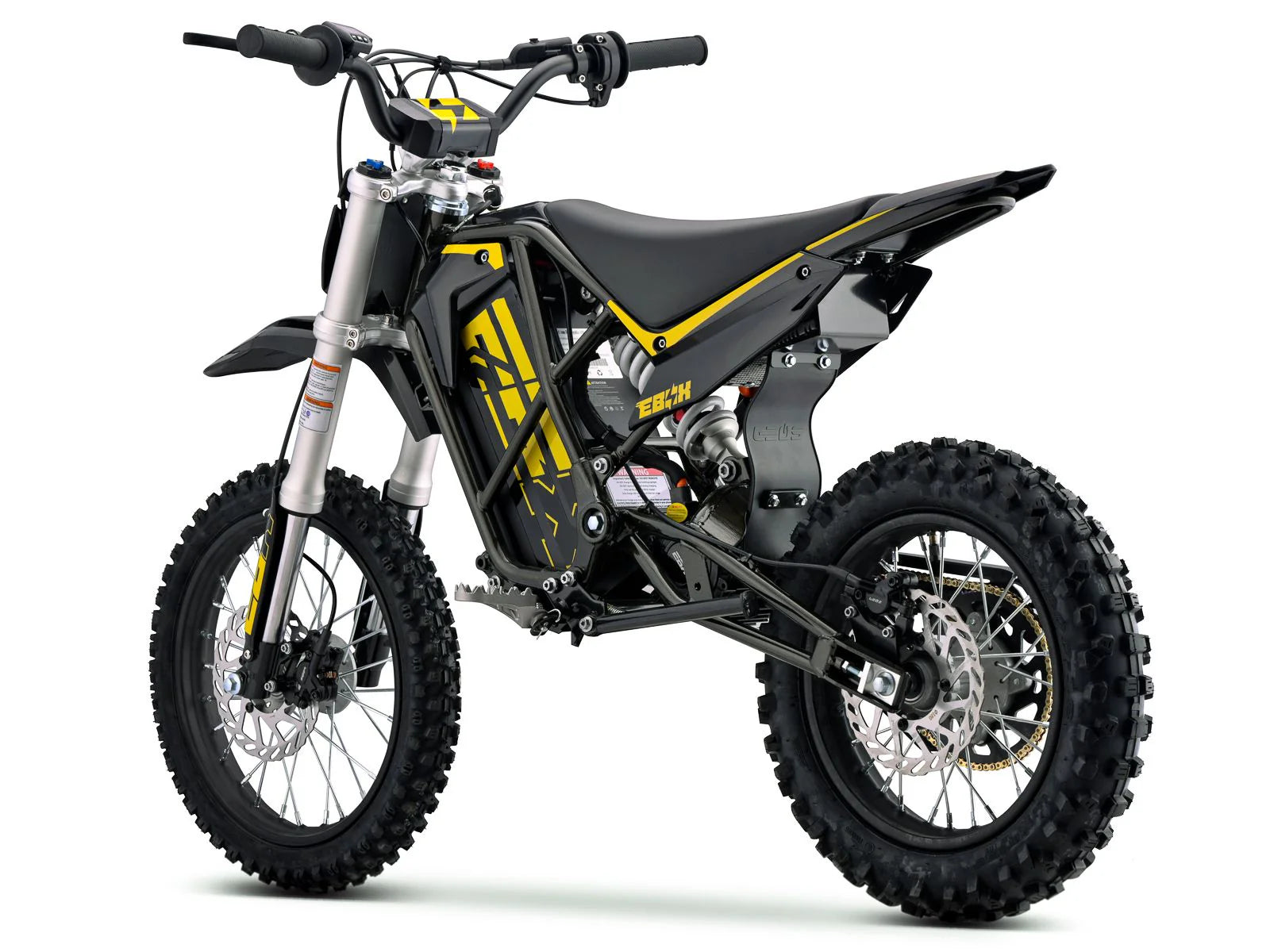

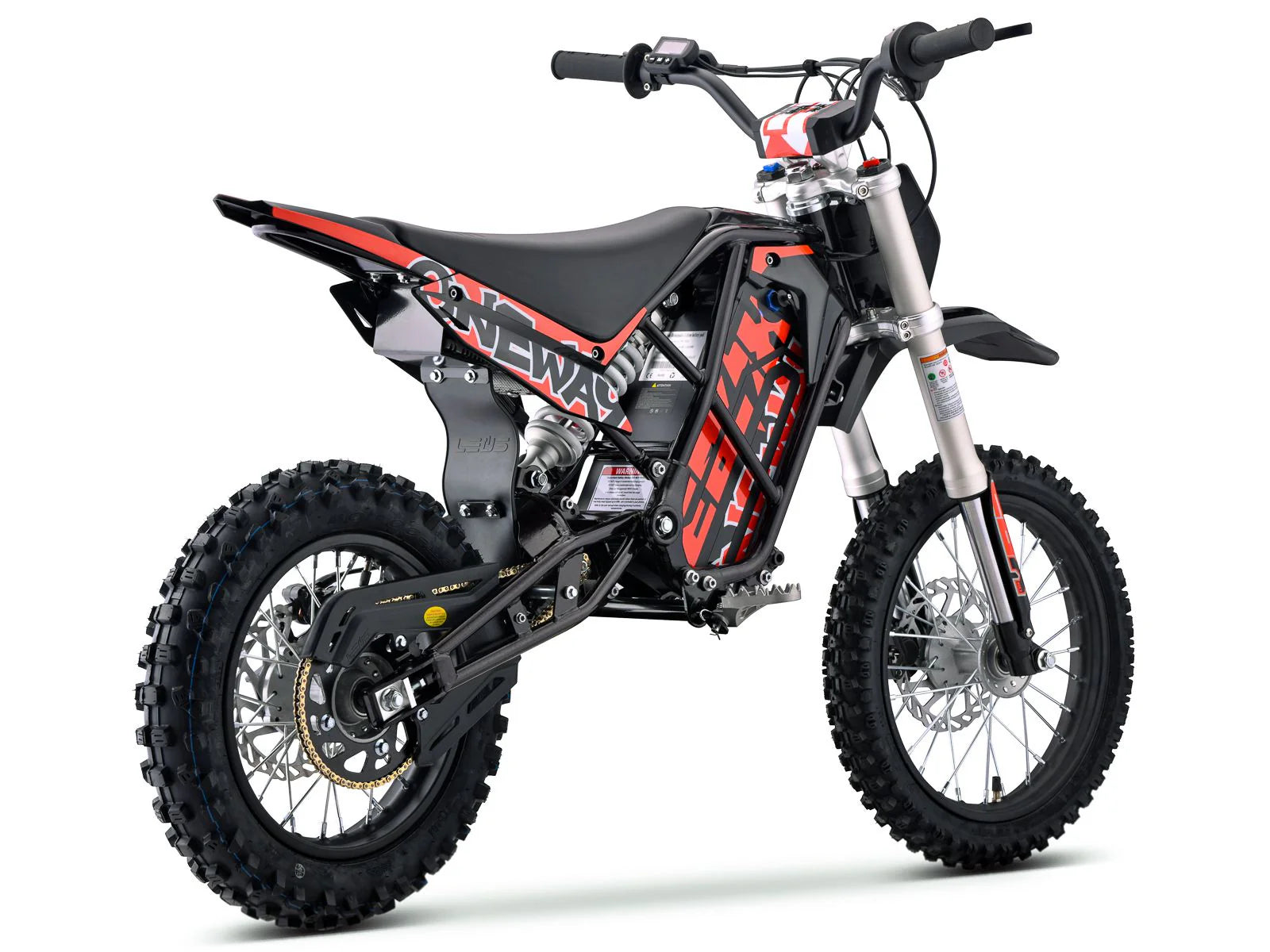

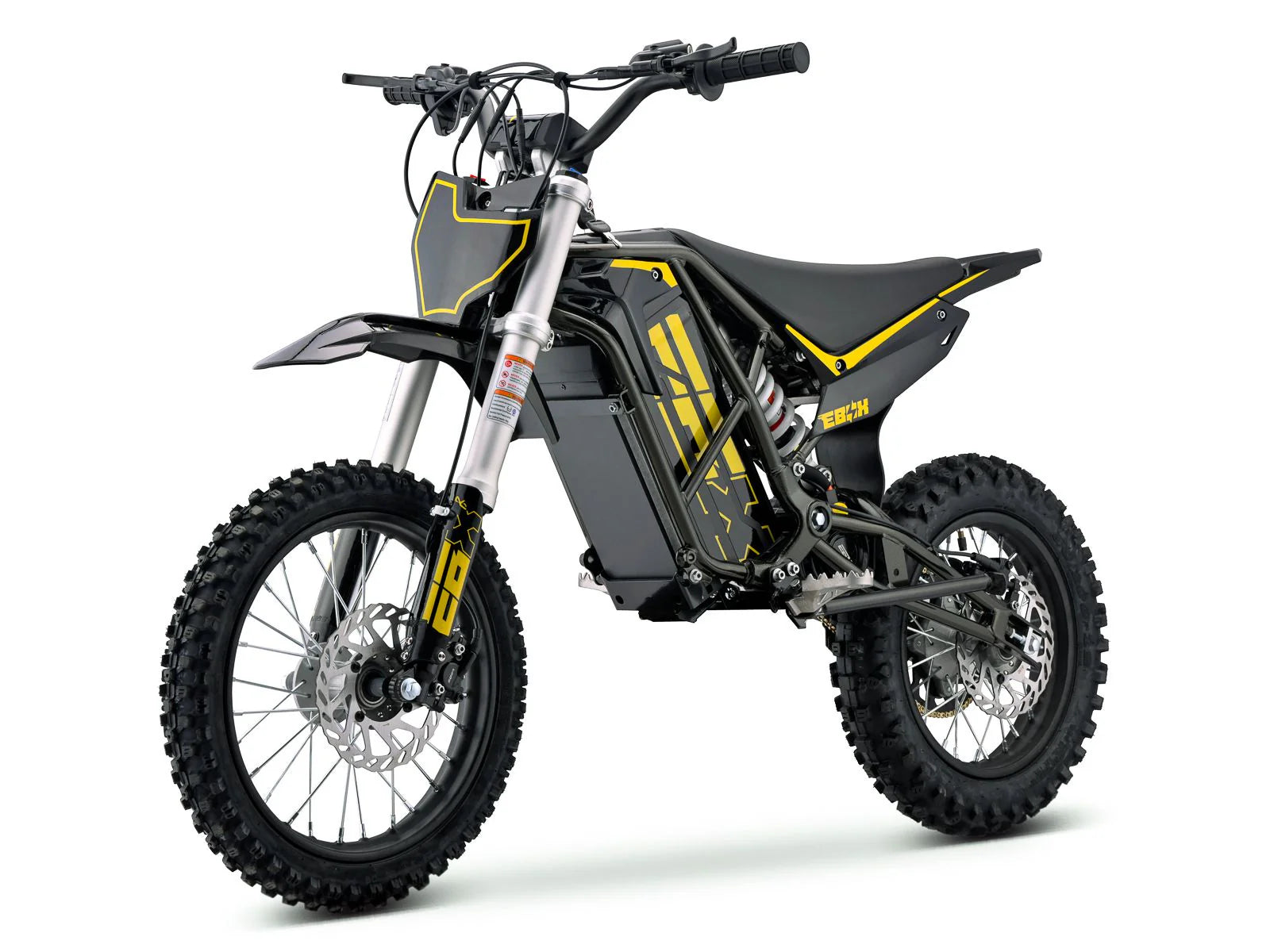

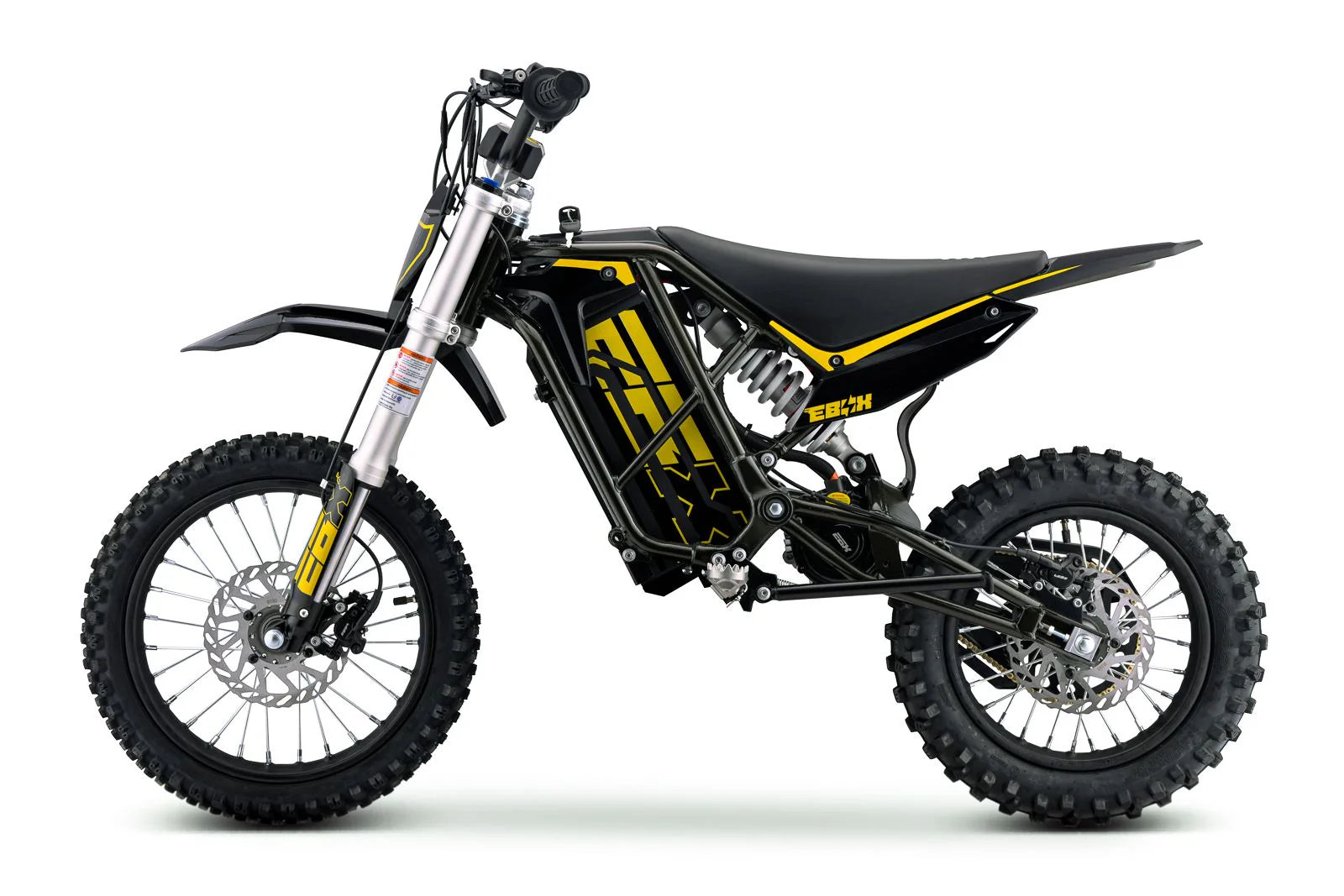

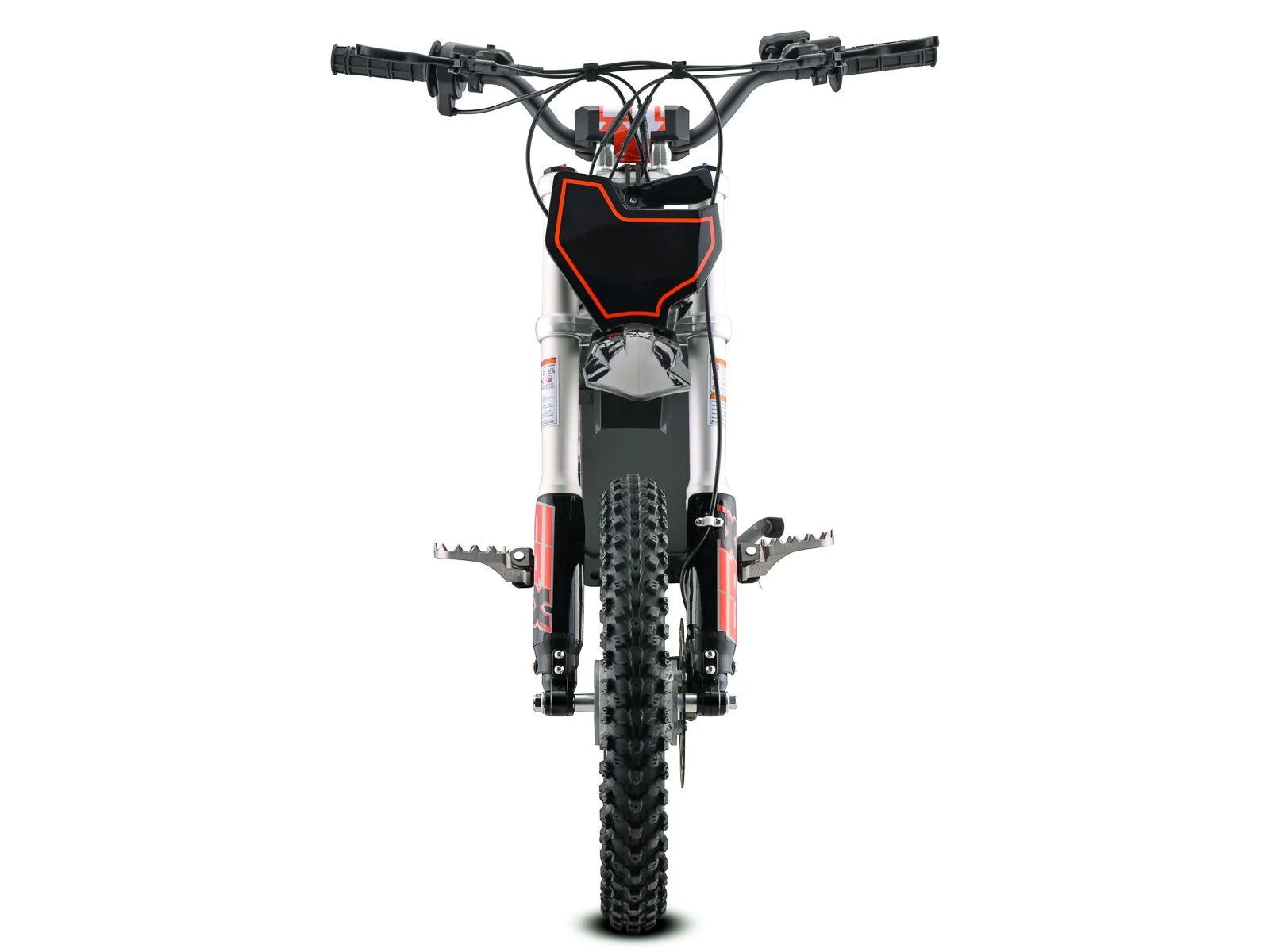

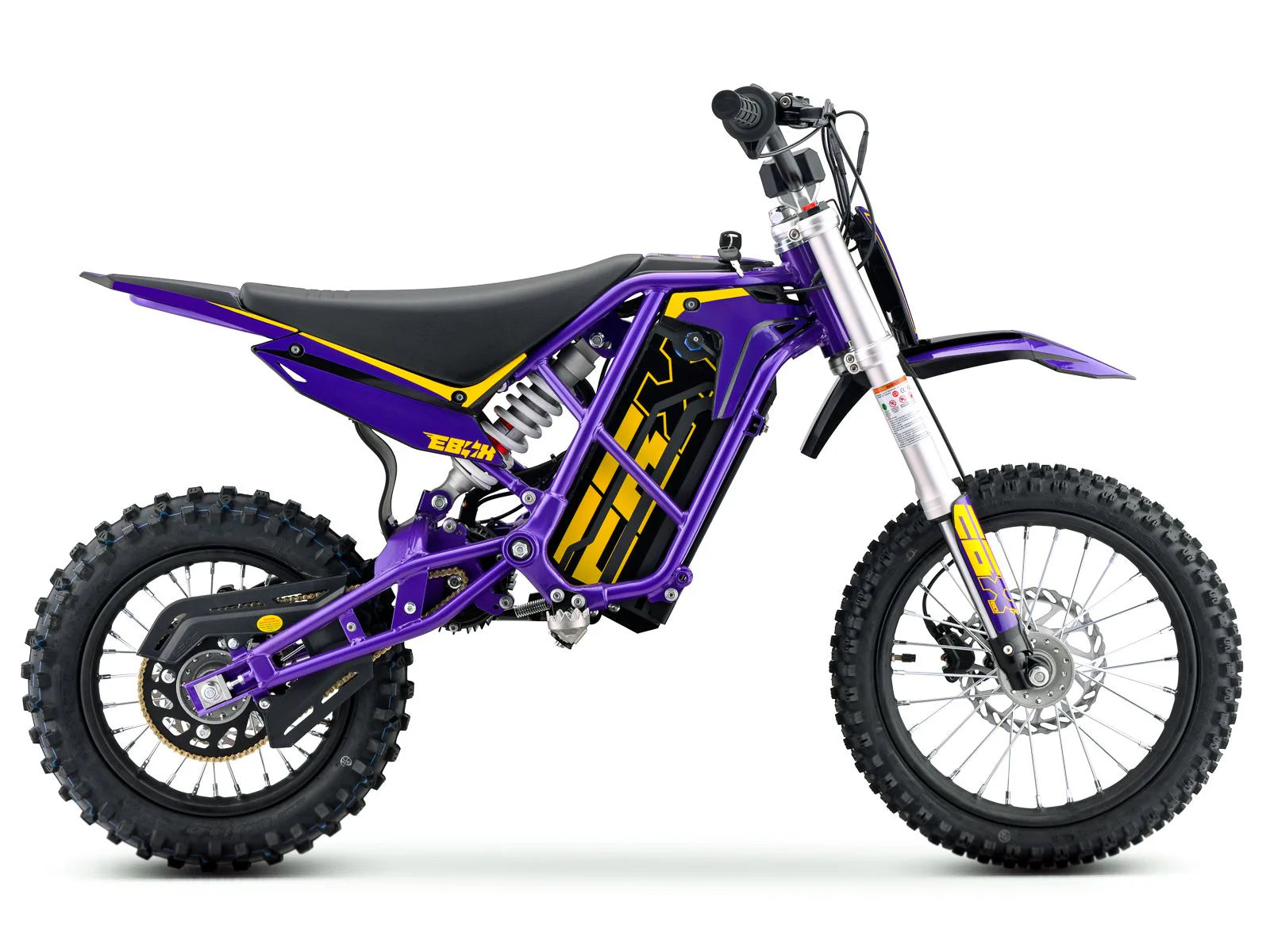

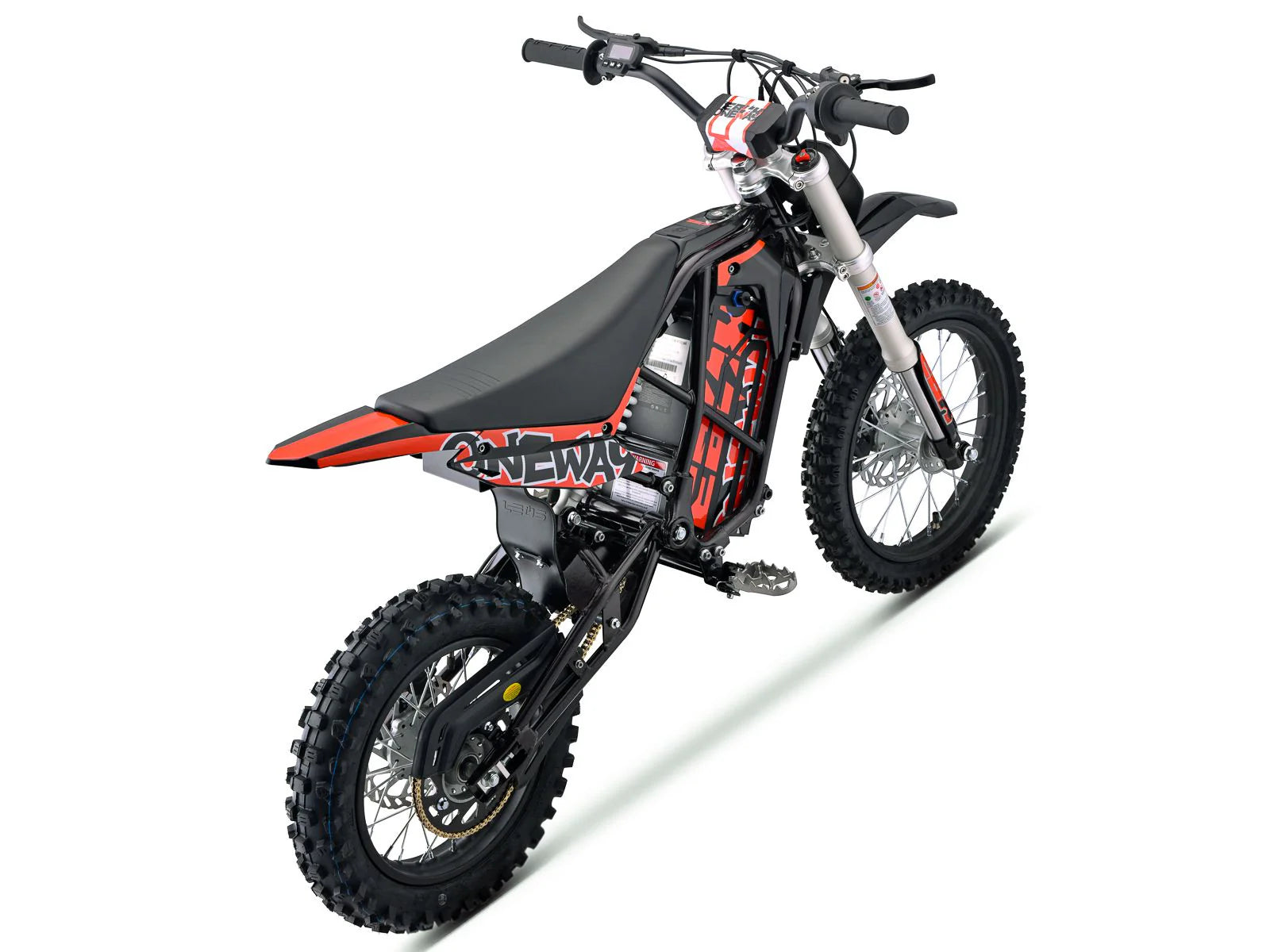

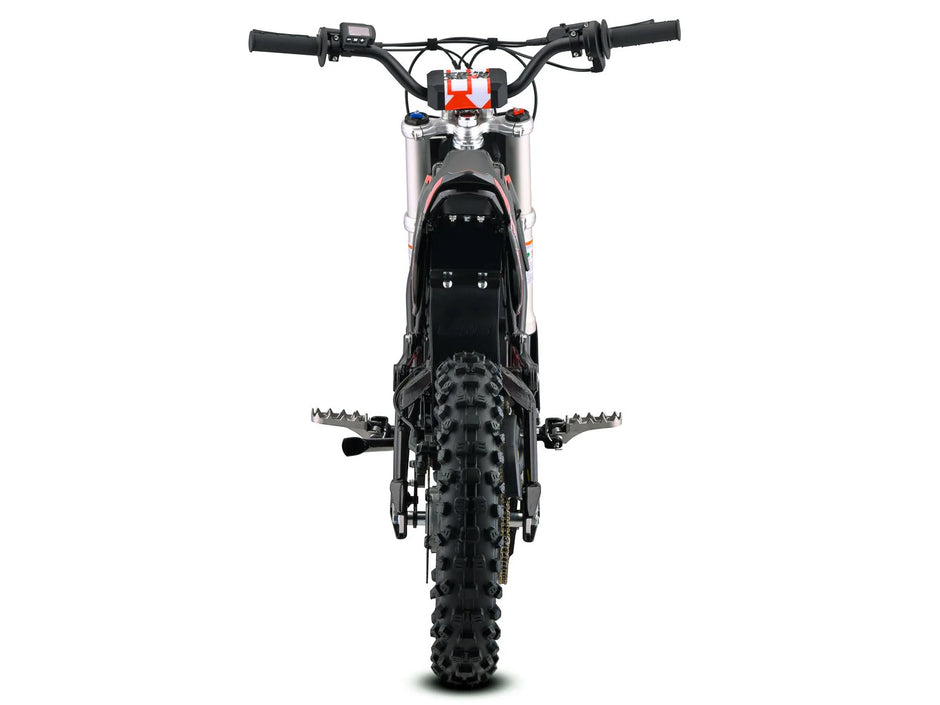

EBOX V3 60R 4500W 60V 26ah LITHIUM DIRT BIKE

EBOX V3 has finally arrived! You wanted more power, more punch, more range, more control and a higher top speed?? We listened to you, and we delivered all of that and more, featuring the brand-new EBX power train, bigger batteries, a Fardriver 80A controller, and a high-power PMSM motor with encoder and temperature feedback, delivering up to 6.3kW. There are no hall sensors to fail and the precise control of the encoder, provides laser sharp coil firing for increased efficiency and maximum performance. Additionally, we have included a colour TFT display with 3-speed modes and fault-finding capability. Our warranty has been increased to 1 year, (or 1000 miles) on all powertrain components (battery, controller, motor). What does this mean? Basically, peaking top speeds of up to 55 mph! New colourways, new tyres and all in the same mini package you can throw in the trunk of your car.

SPECS

• Frame type V3 Double Cradle
• Front wheel size 14"
• Rear wheel size 12"
• Fork 150mm travel USD
• Rear Suspension Progressive mono shock 150mm travel
• Bar Risers Alloy Cast 36mm rise Ø22.2
• Front brake Hyraulic Disc (Right lever) e-moto brakes
• Front disc 180mm rotor, 4 bolt
• Rear brake Hyraulic Disc (Left lever) e-moto brakes
• Rear disc 180mm rotor, 4 bolt
• Front tyre Upgraded 60/100-14 Dirt
• Rear tyre Upgraded 80/100-12 Dirt
• Chain 219H 120L
• Gearing Front 10T, Rear 70T
• Max load 85kg
• Handlebar 6061 T6 EBOX High Rise 1pc
• Seat EBOX fat seat
• Motor 60V EBX PMSM motor with temp feedback and encoder
• Rated Power 4.5KW
• Peak power 5.2KW (6.7hp)
• Max RPM 8,500
• Battery New 60v 26 Ah battery with BMS 18,600 Cells potted in steel case with QS8 connector and air breaker switch
• Controller 80 Amp Fardriver controller
• Throttle SURRON style full twist
• Display TFT odometer display with 3 speed modes and fault code analysis software
• Connectors Automotive connectors with sealed wiring harness
• Charger AC 100-240V, Output: 67.2V, 5A

TECH

• Charge time 4-5 hours
• Range 25-28 miles (40-45Km)
• Top speed 53mph (85Km/h)
• External adjustability 3 riding modes
• Frame construction V3 wide frame (190mm) large capacity battery, race inspired revised geometry. Increased fork travel, increased pre-load and heavier oil. Standard Footpeg.
• Waterproof IP54
• Wheelbase 980mm
• Seat height 650mm

Warranty EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information
