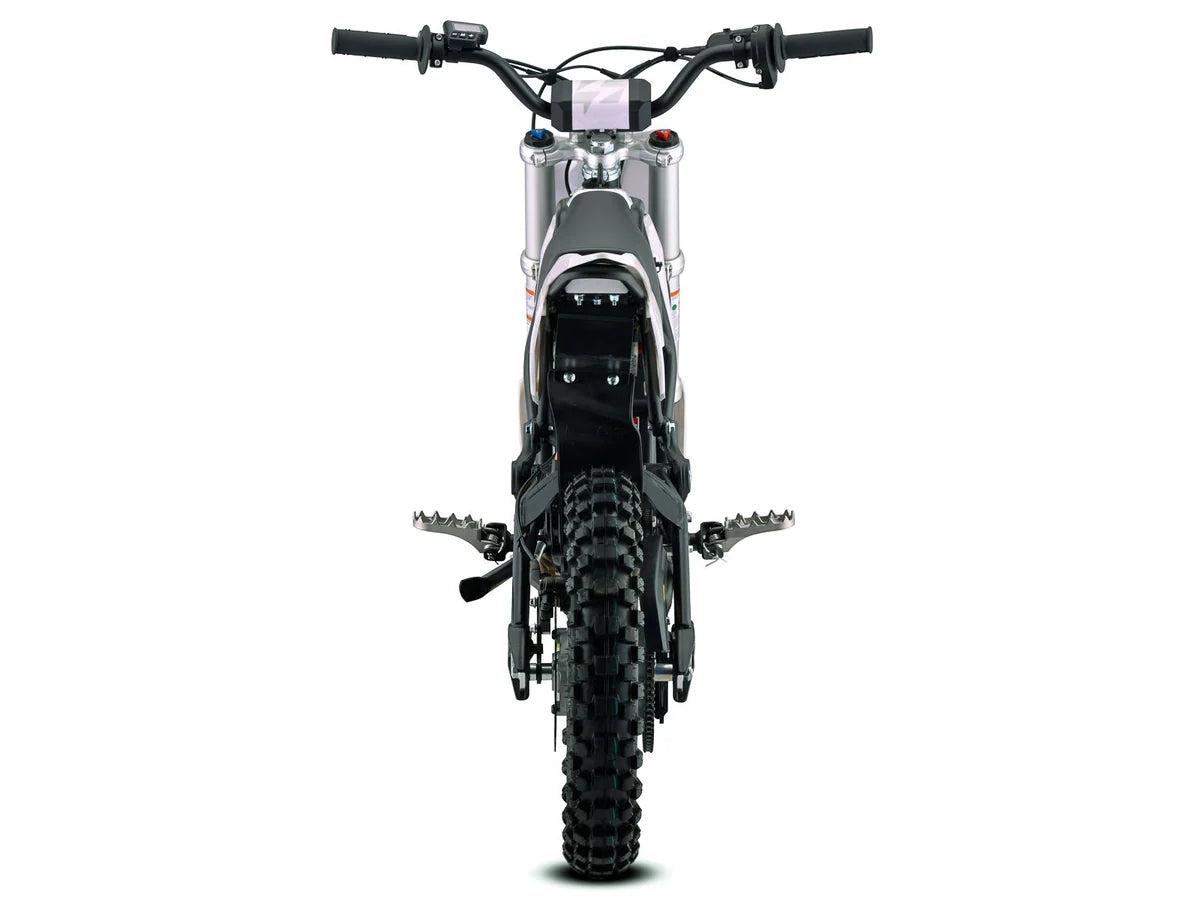

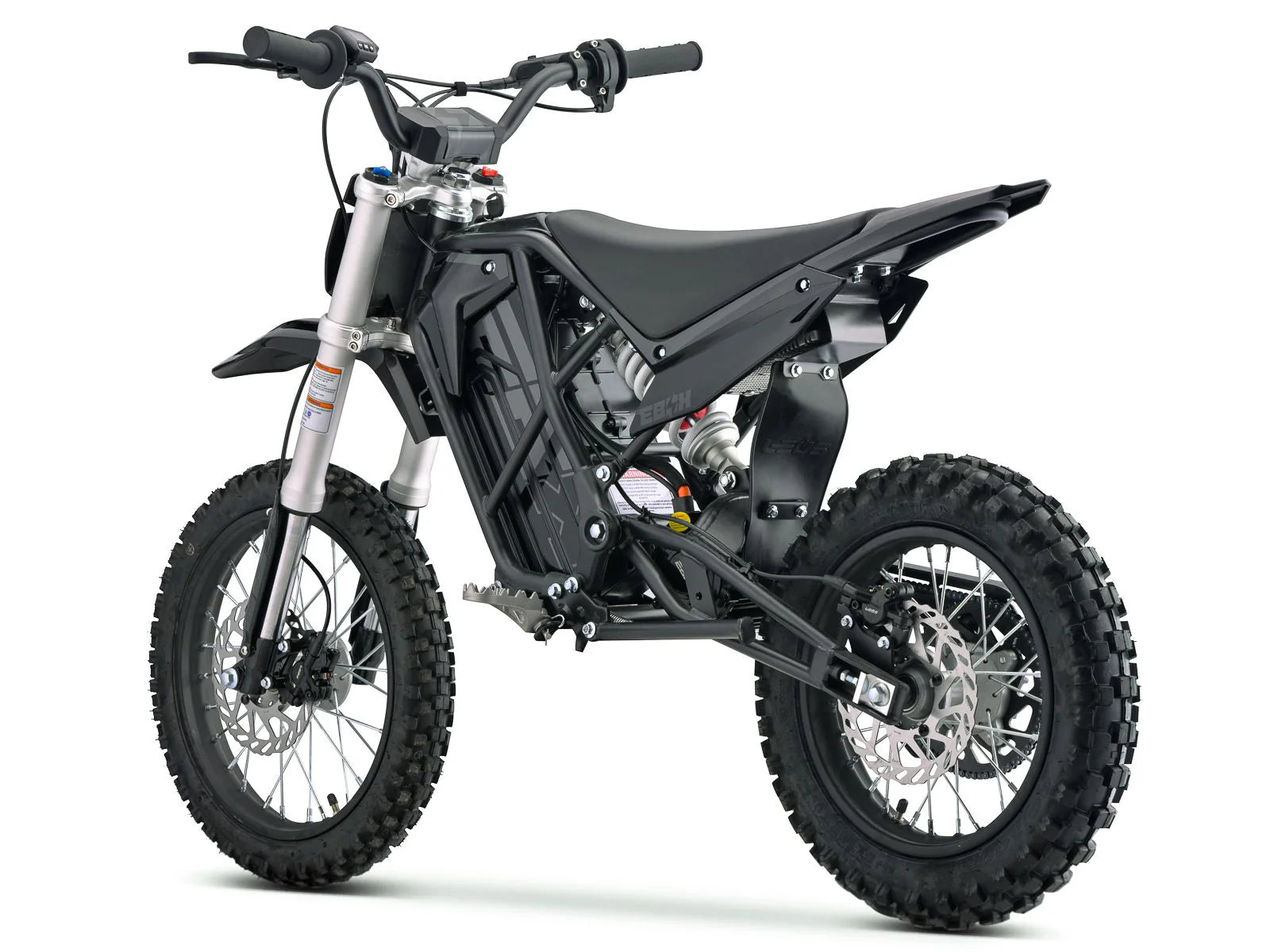

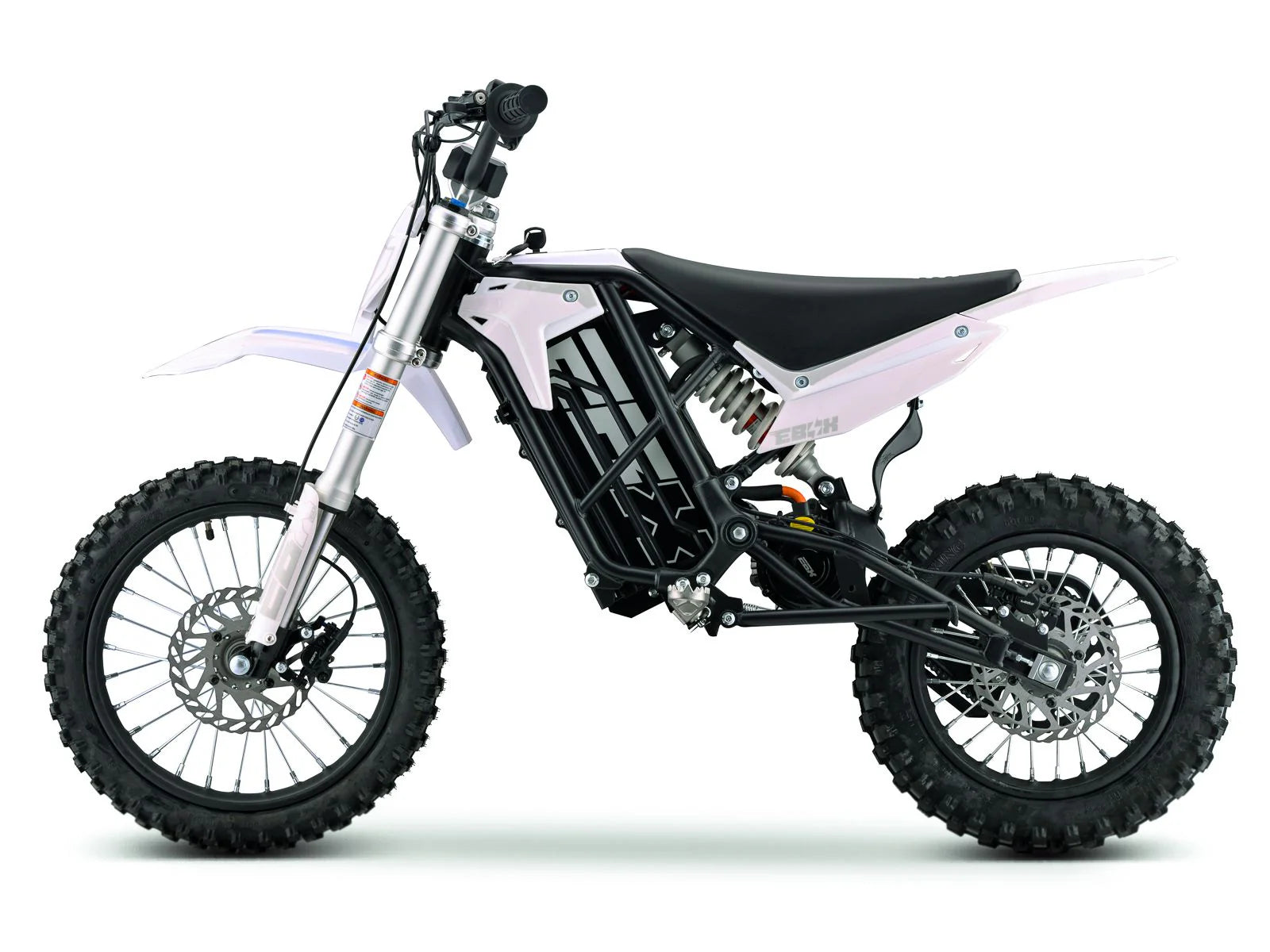

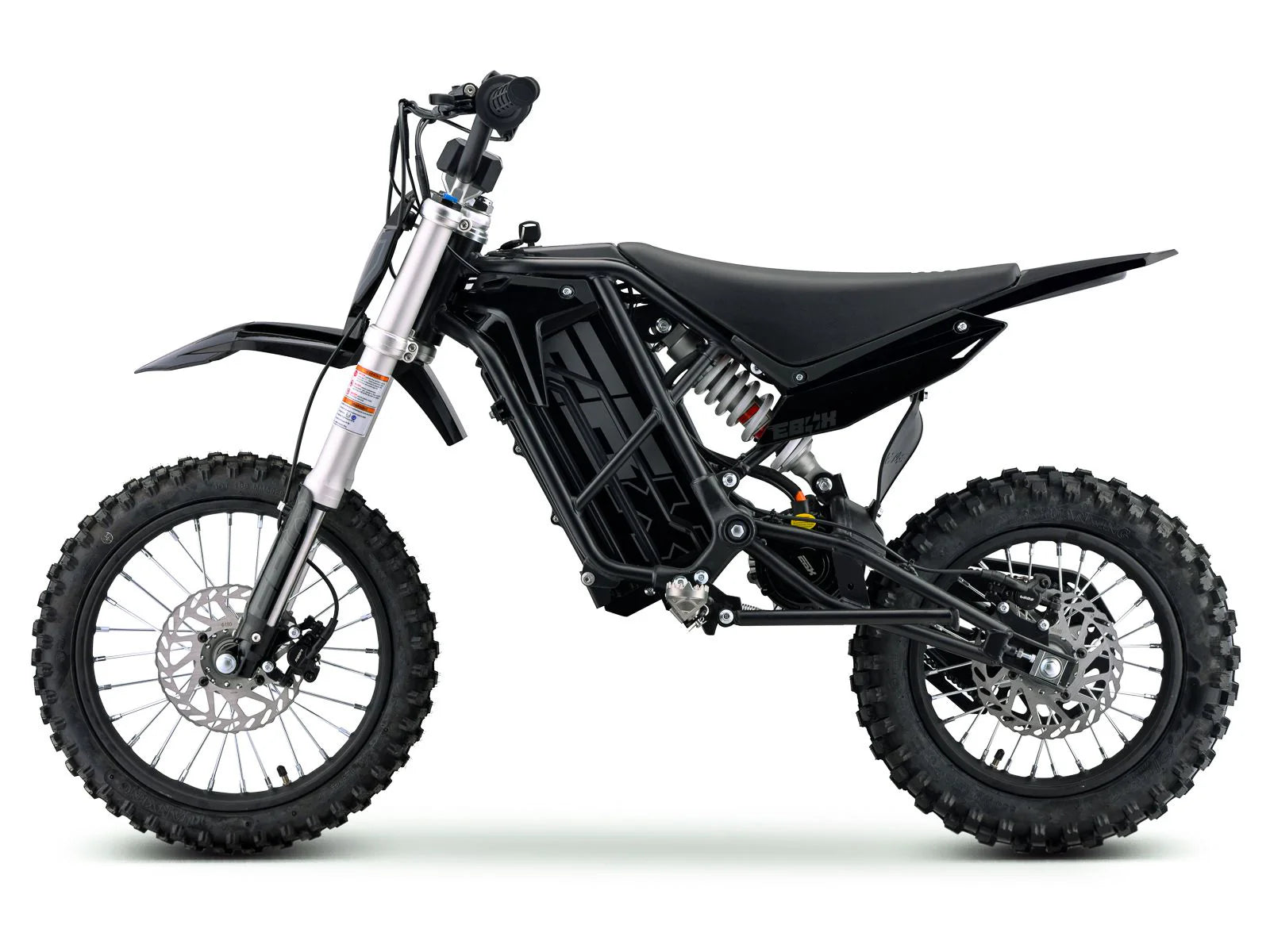

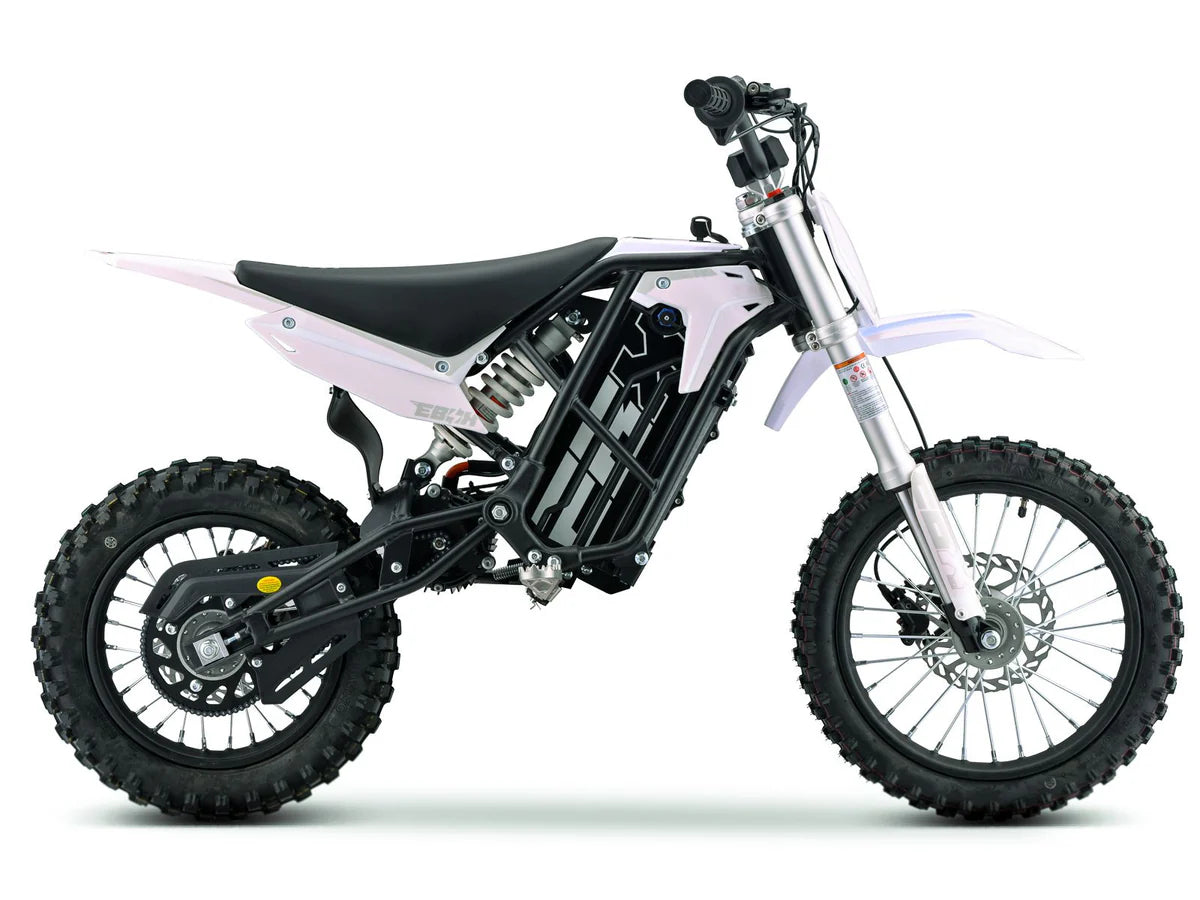

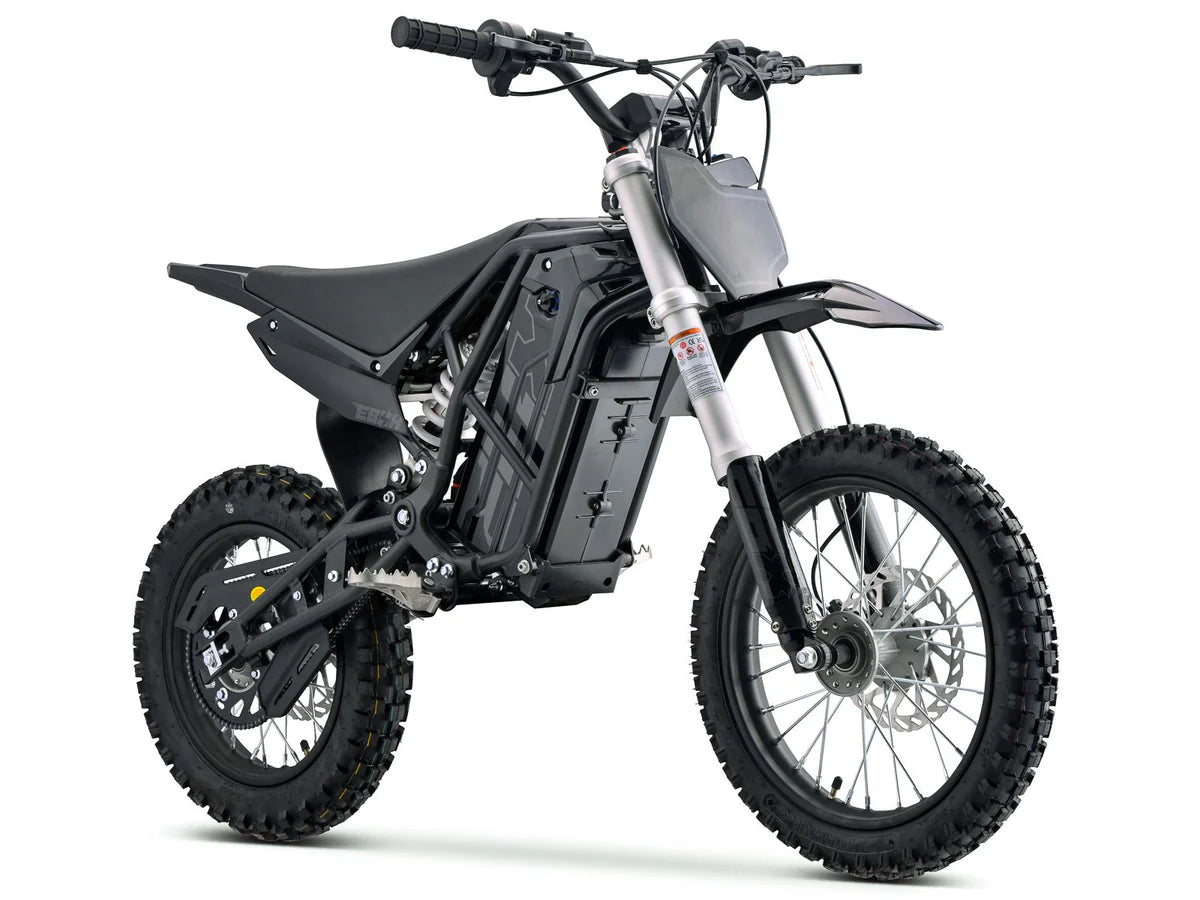

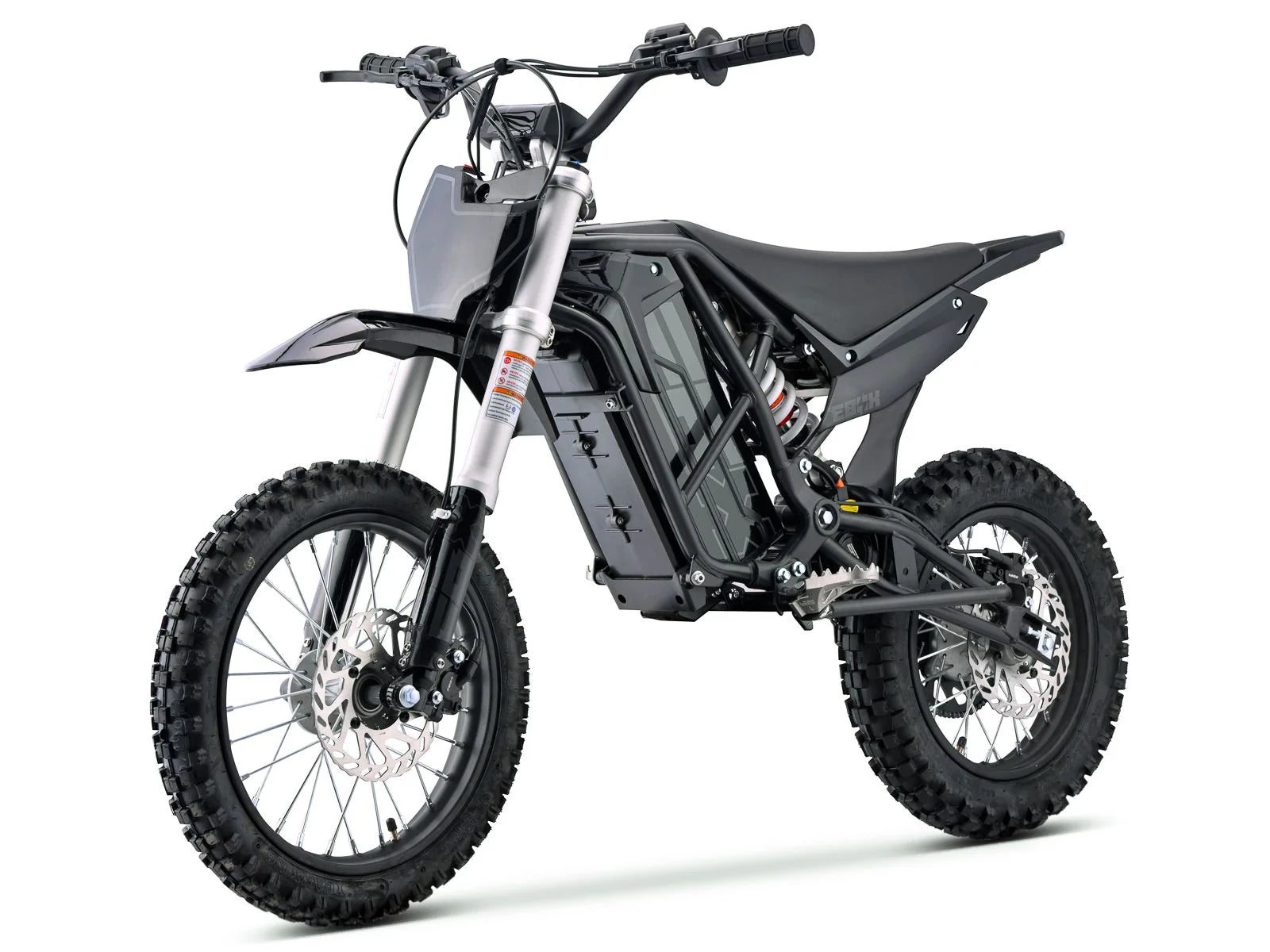

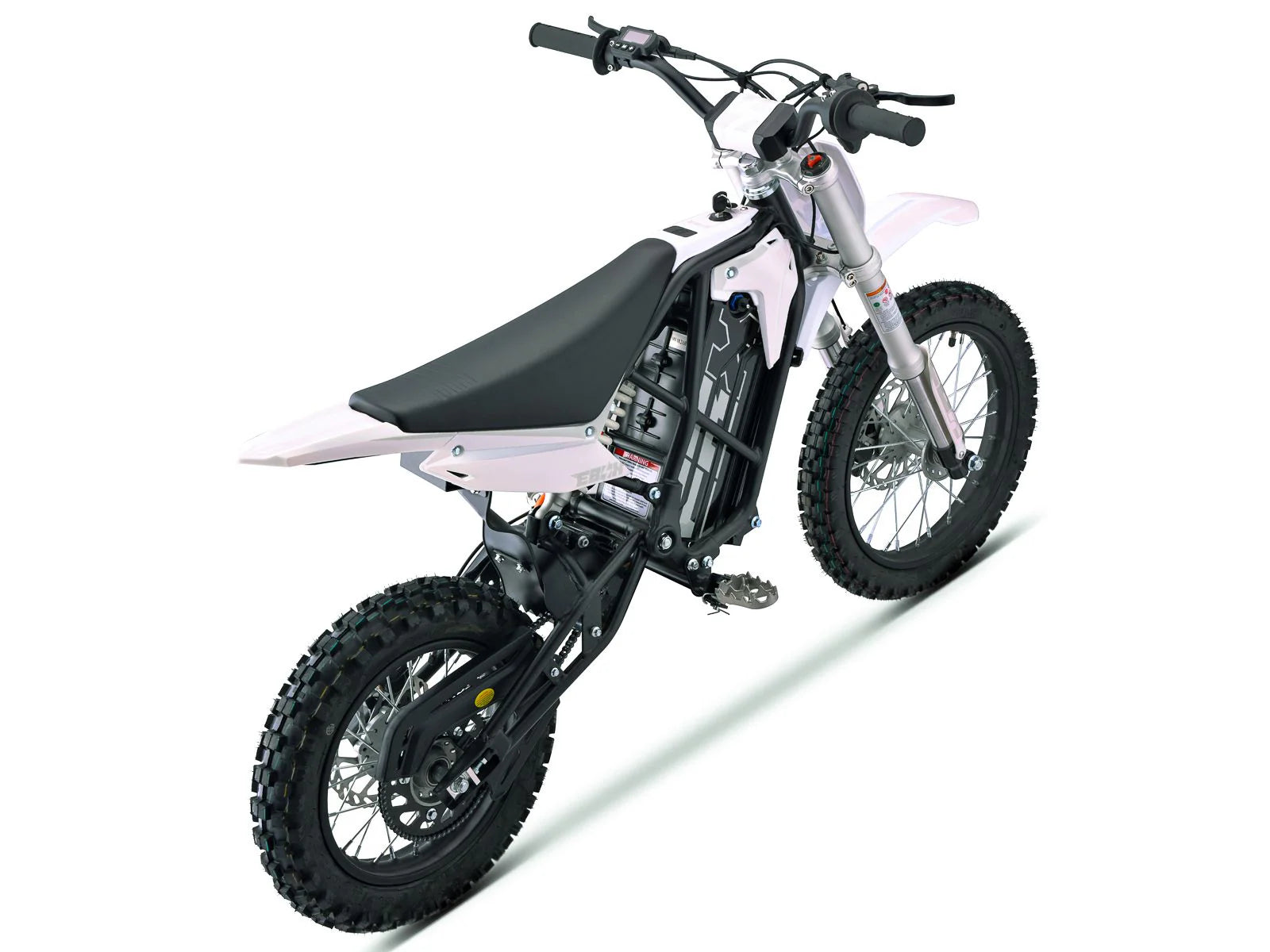

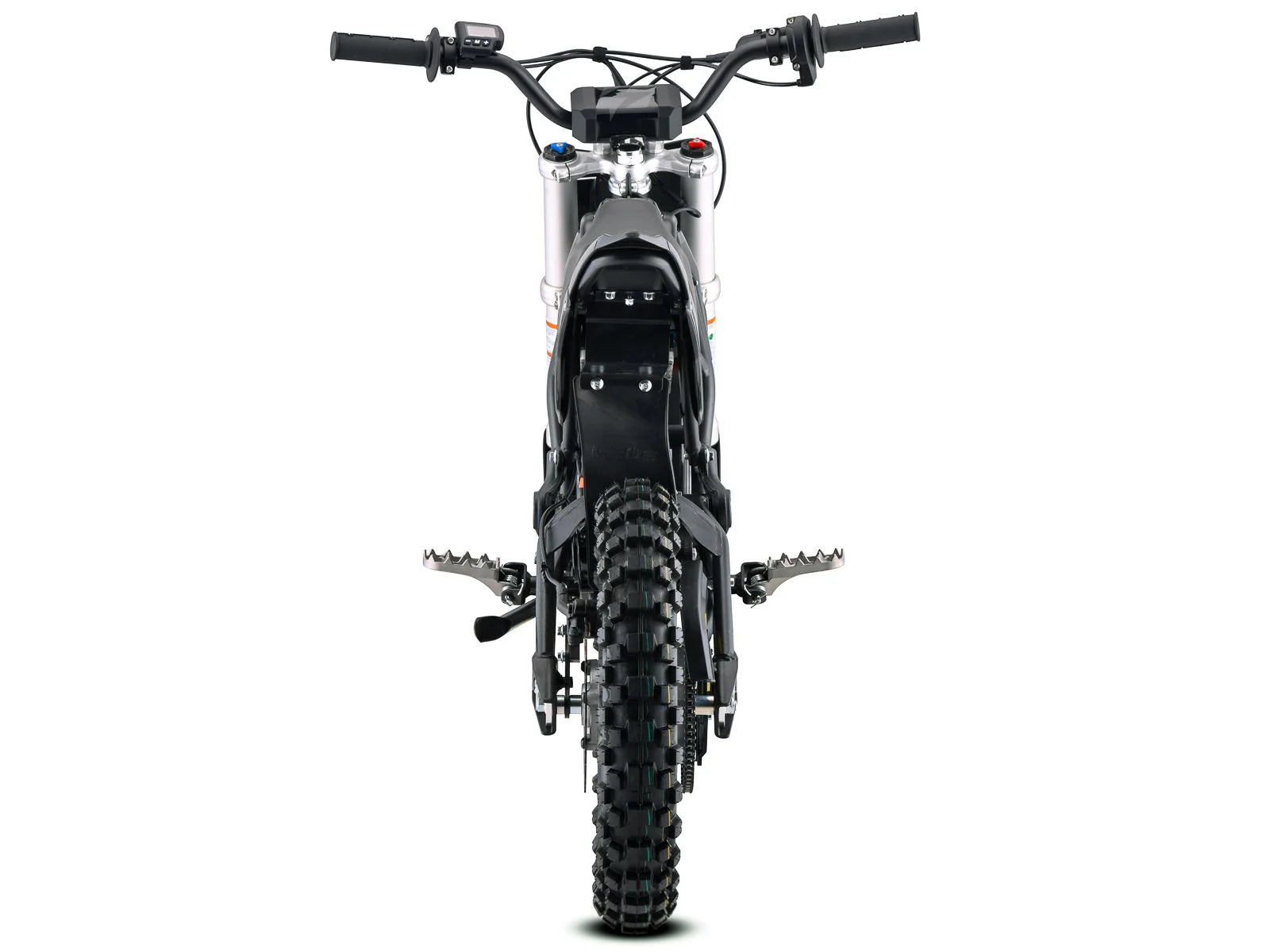

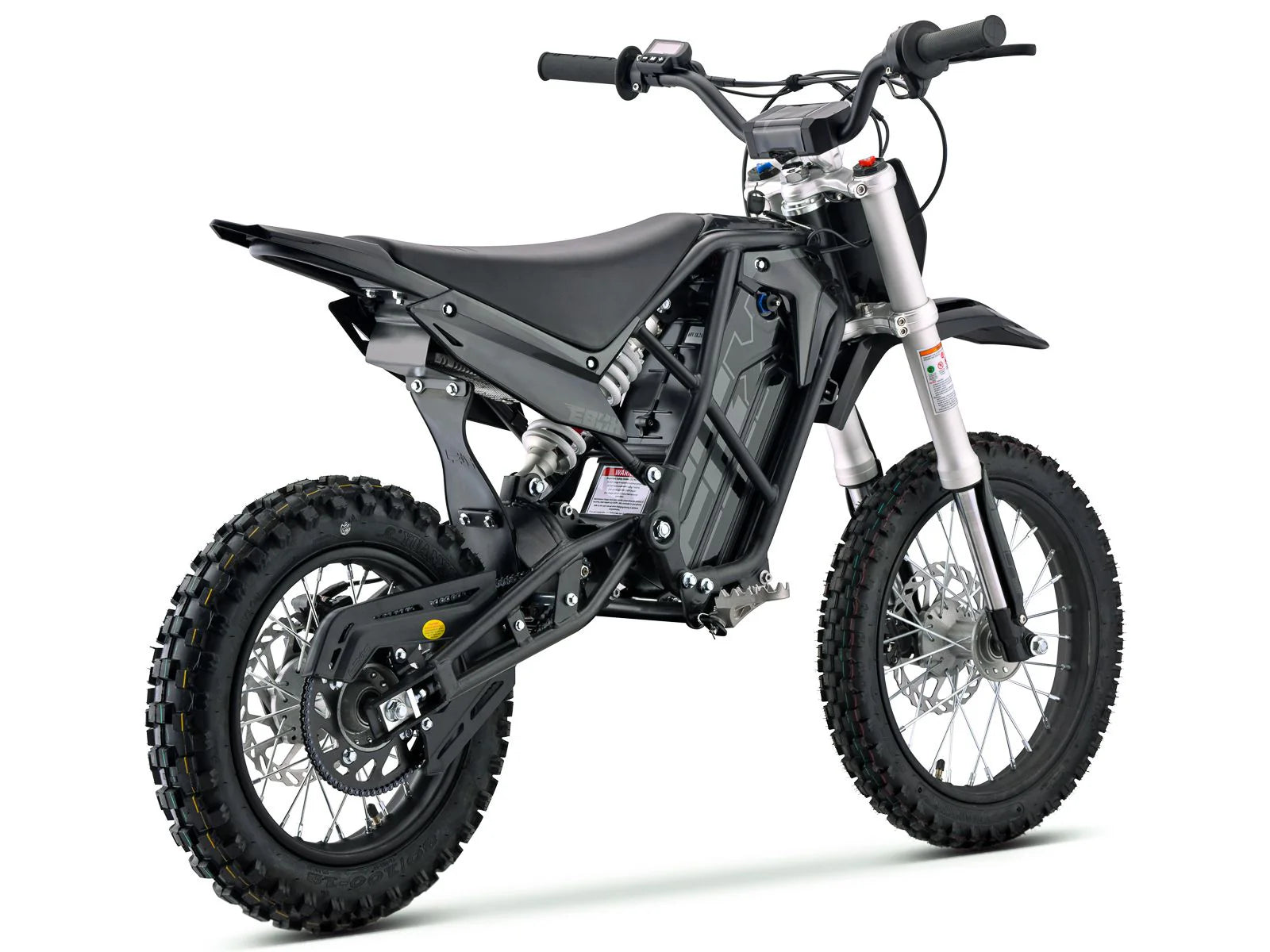

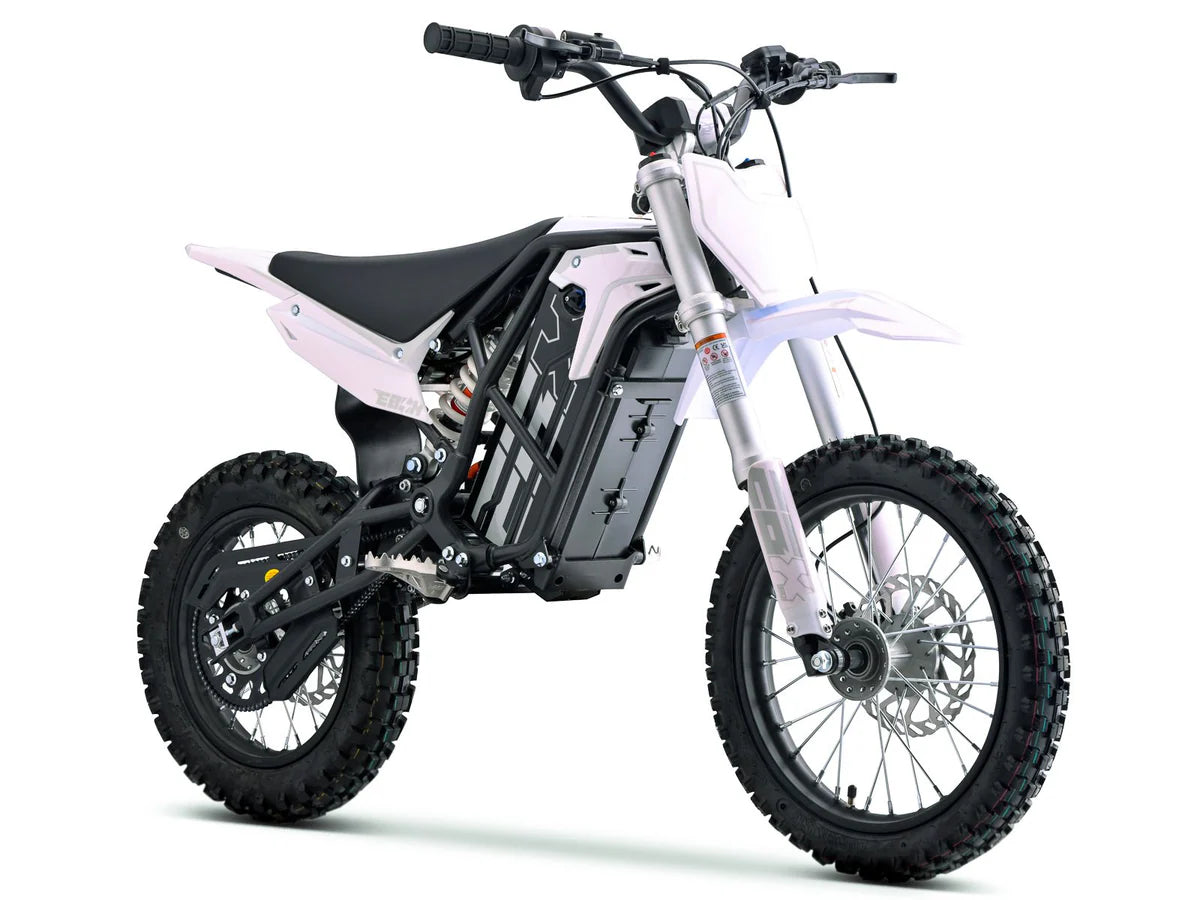

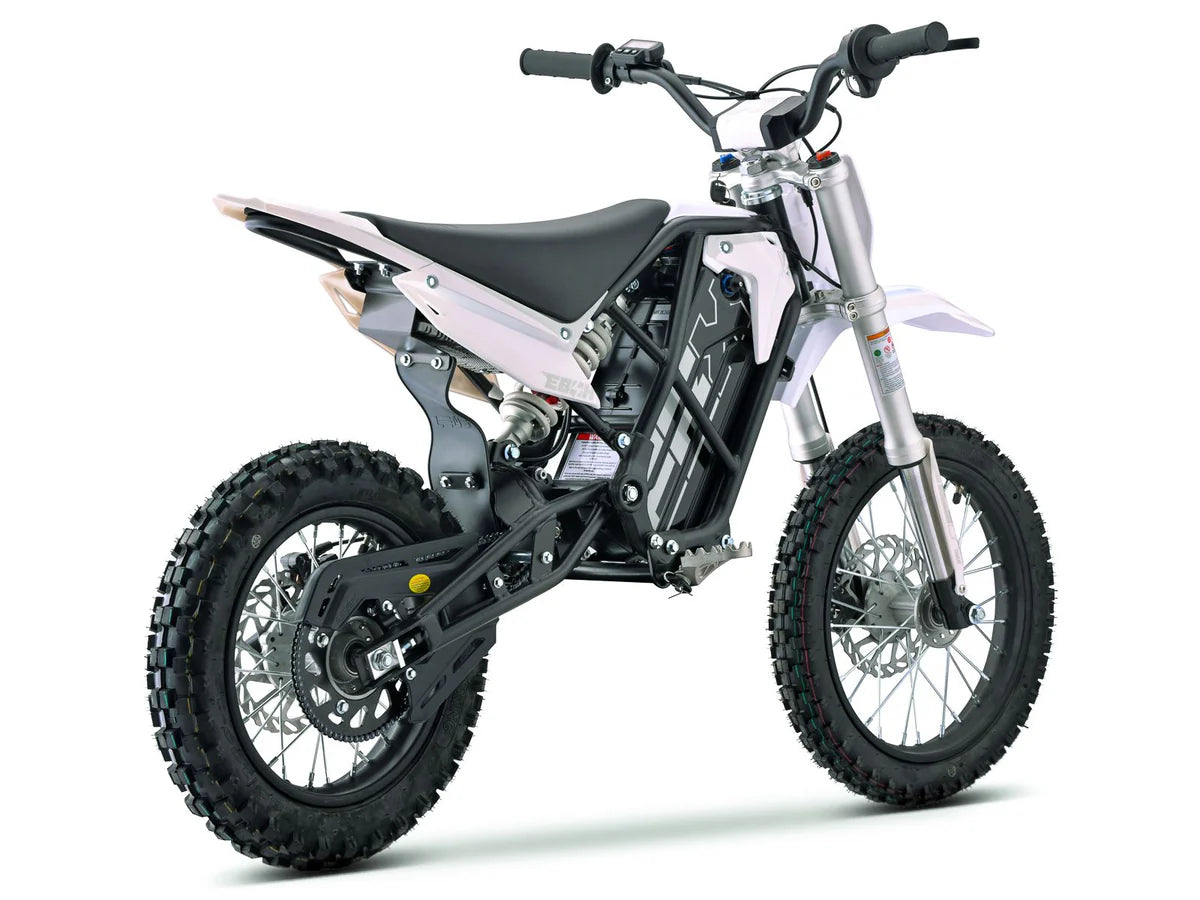

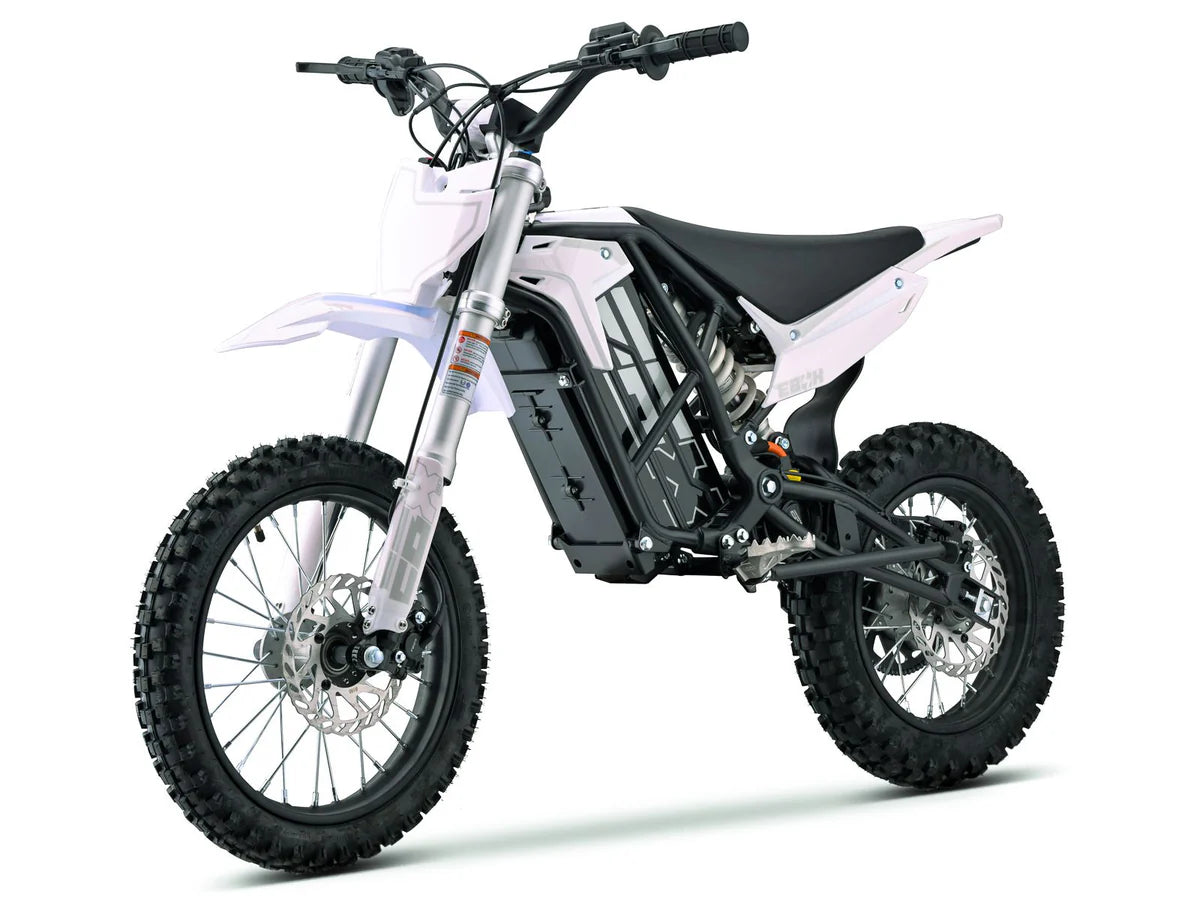

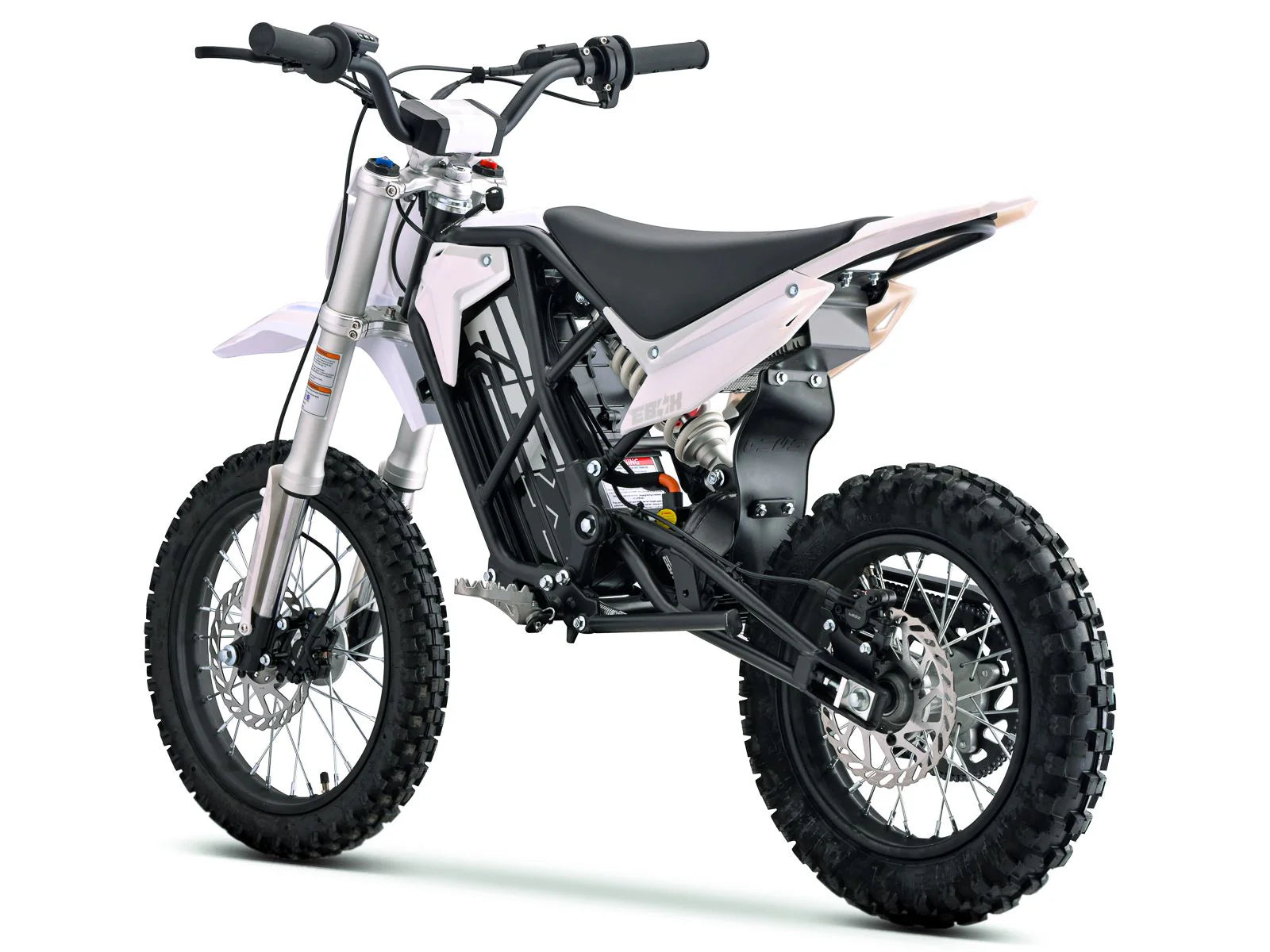

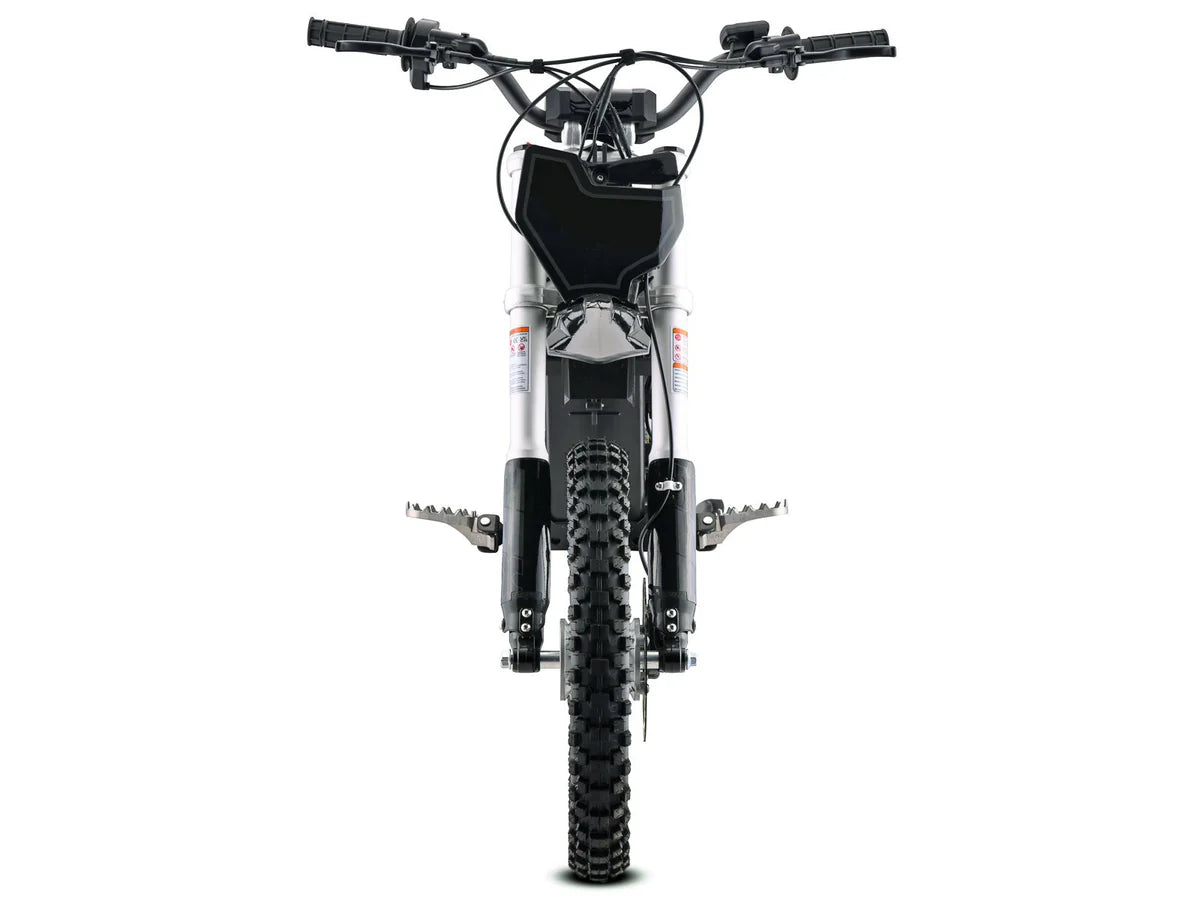

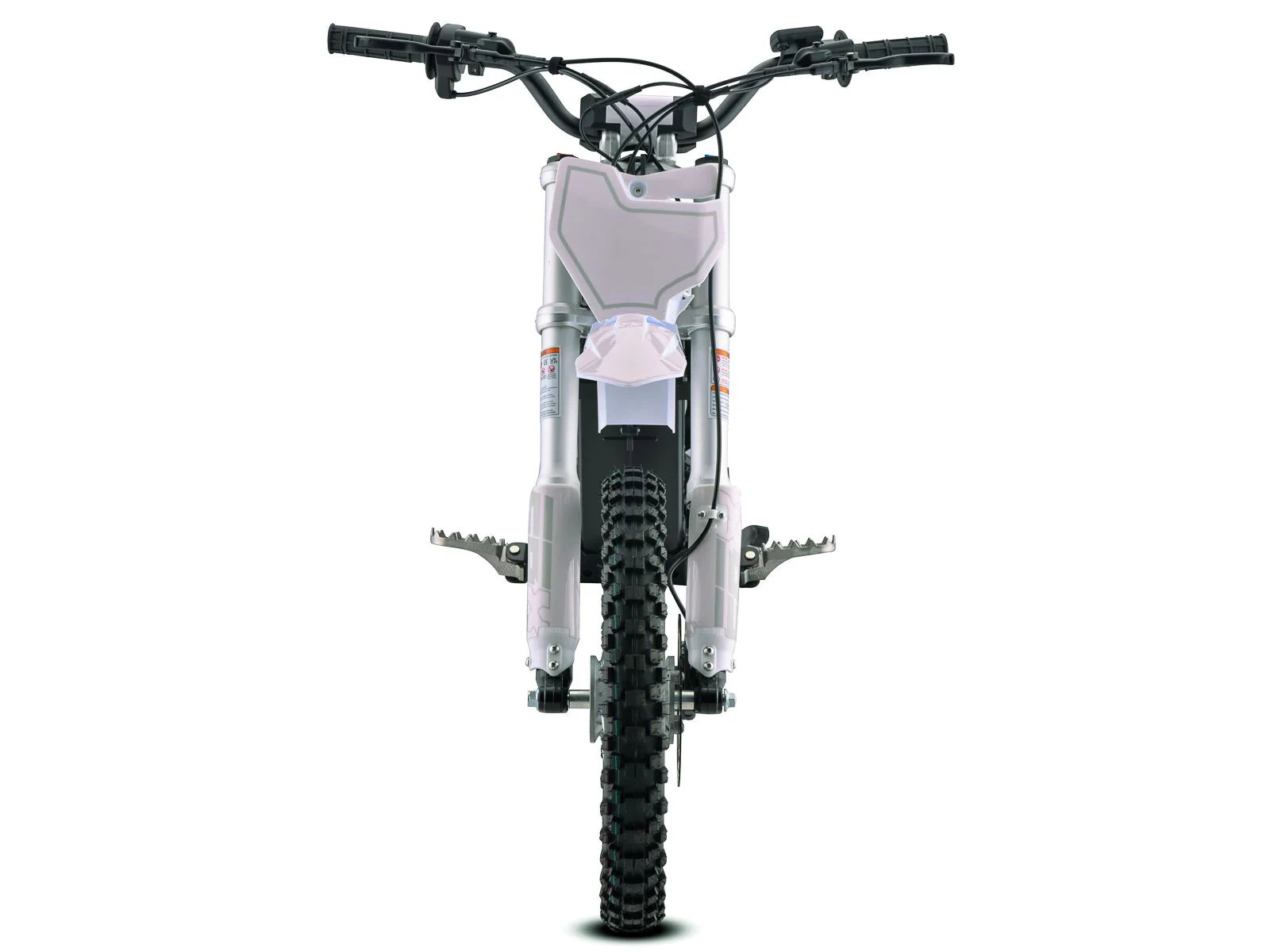

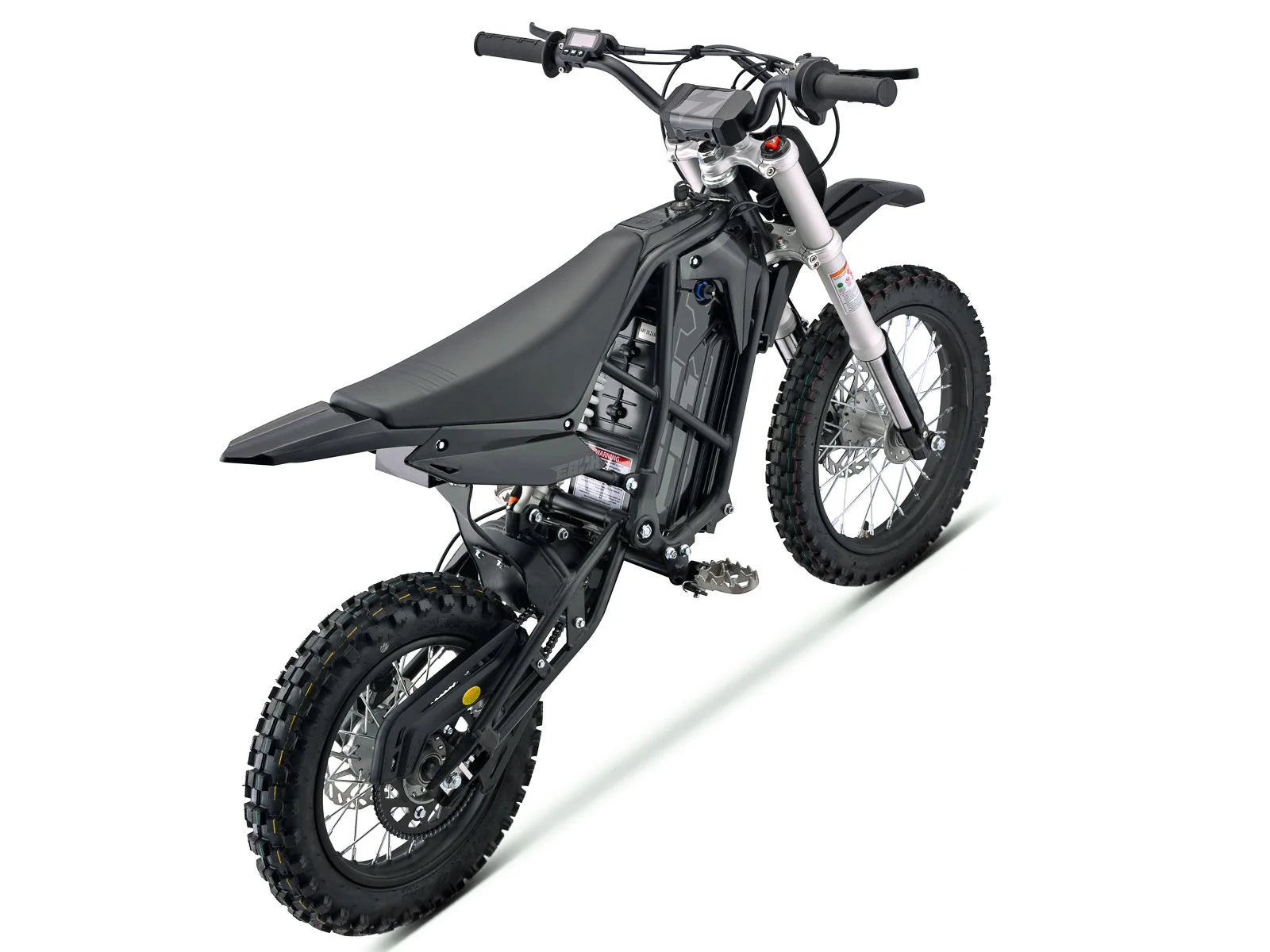

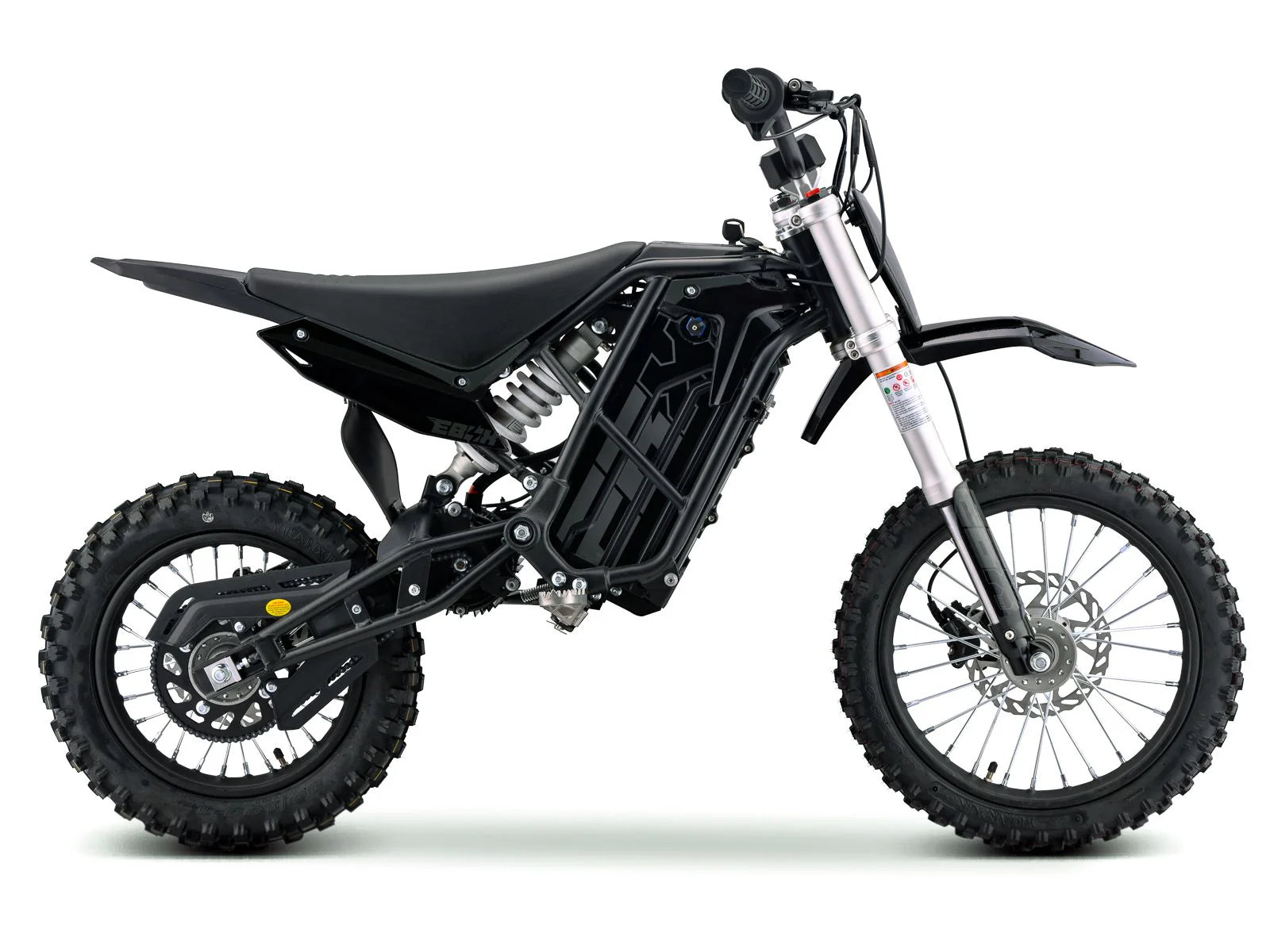

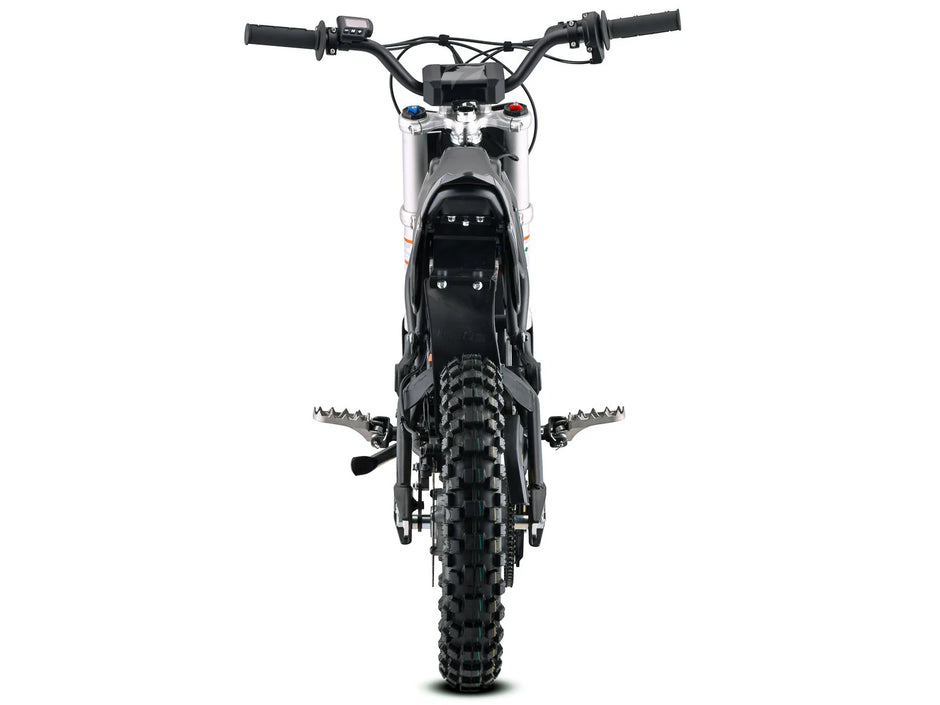

EBOX V3 60V 3300W

The EBOX V3 60V combines a 3.3kW rated motor with an 80A controller and TFT display. Its double-cradle chassis uses 14-inch front and 12-inch rear wheels, hydraulic disc brakes and three riding modes.

Features

• Three selectable riding modes
• Encoder-equipped PMSM motor
• Hydraulic disc brakes

Specifications

• Motor output: 3.3kW rated / 3.7kW peak
• Battery: 60V
• Motor type: EBX PMSM with encoder and temperature feedback
• Controller: Fardriver 80A
• Display: TFT with three riding modes
• Throttle: full twist
• Brakes: front and rear hydraulic discs
• Frame: V3 double cradle
• Wheels: 14-inch front / 12-inch rear
• Front tyre: 60/100-14
• Rear tyre: 80/100-12
• Front suspension travel: 150mm
• Rear suspension: progressive monoshock, 150mm travel
• Brake rotors: 180mm front and rear
• Chain: 219H 120L
• Gearing: 10T front / 70T rear
• Load capacity: 85kg
• Wheelbase: 980mm
• Seat height: 650mm
• Charger output: 67.2V 3A
• Sealed wiring harness with automotive connectors.
• TFT instrument display includes an odometer and fault-code analysis.
• Charger AC input: 100–240V.
• Maximum motor speed: 7,500rpm.
• Supplier-stated charge time: 5–6 hours.
• Supplier-stated range: 35–40km.
• Cast-alloy bar risers: 36mm rise, 22.2mm clamp diameter.
• EBOX padded seat.
• Frame width: 183mm.
• QS8 battery connector and air-breaker switch.

Range, speed and charging figures are supplier estimates, not guarantees. Actual results vary with riding conditions, load, settings and charging equipment.
