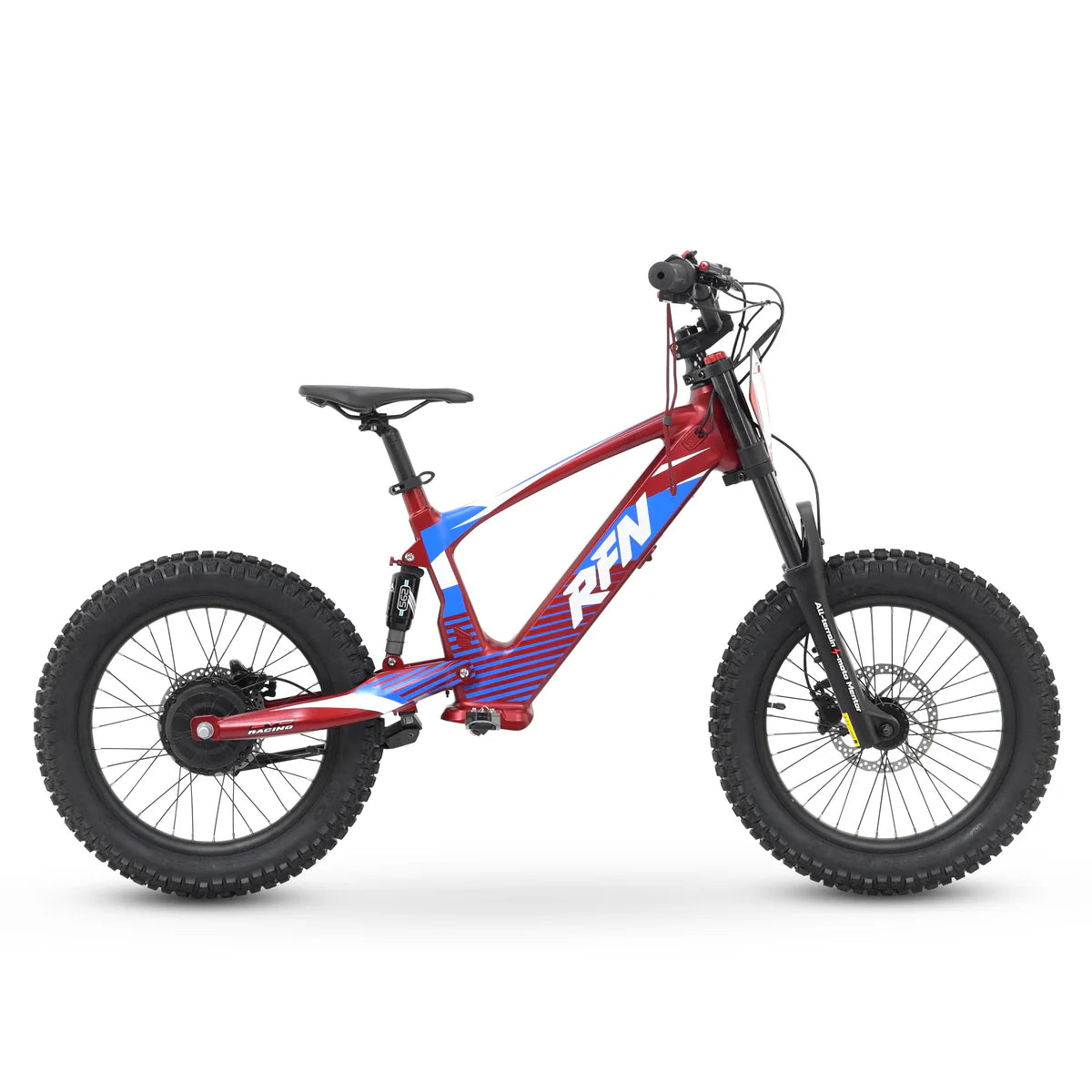

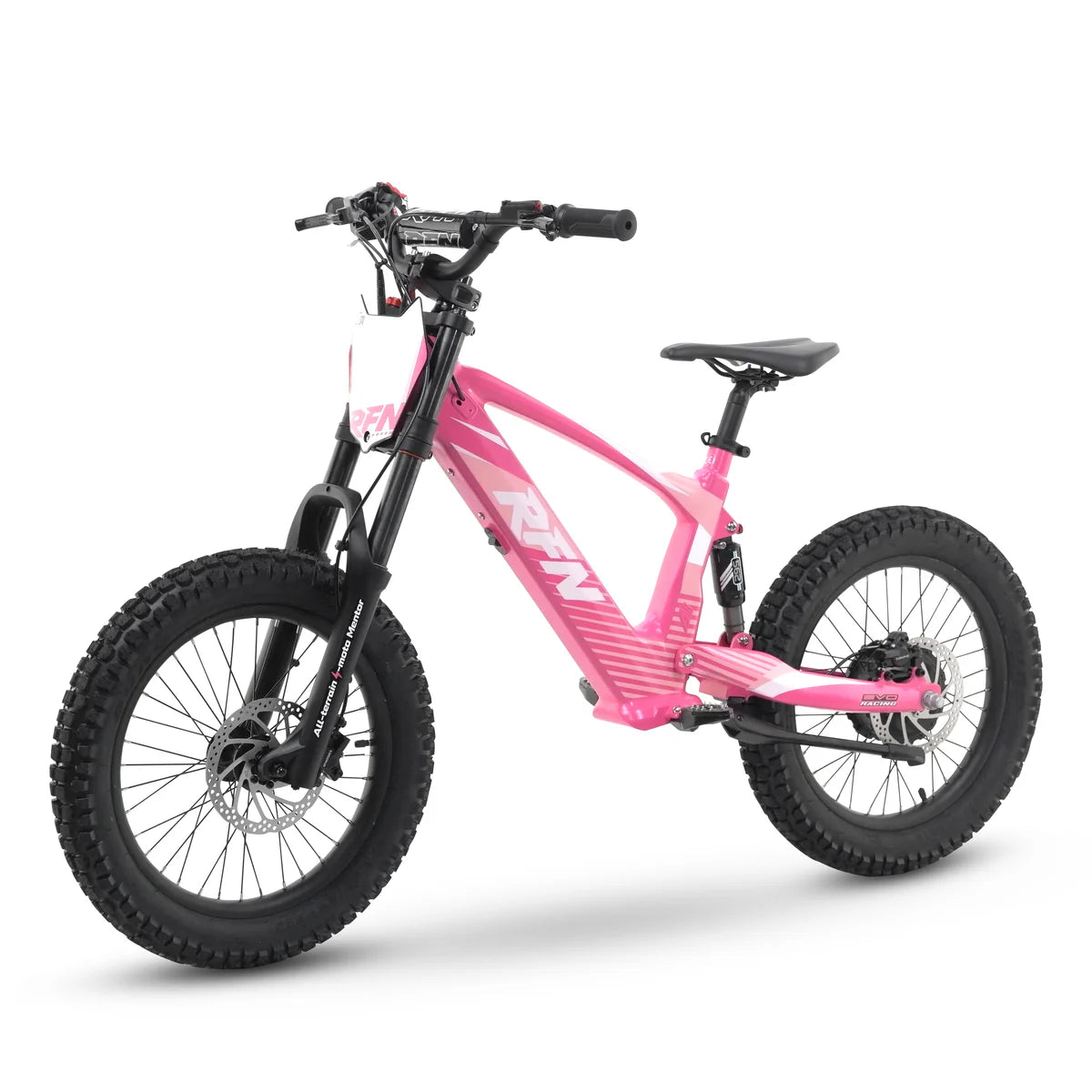

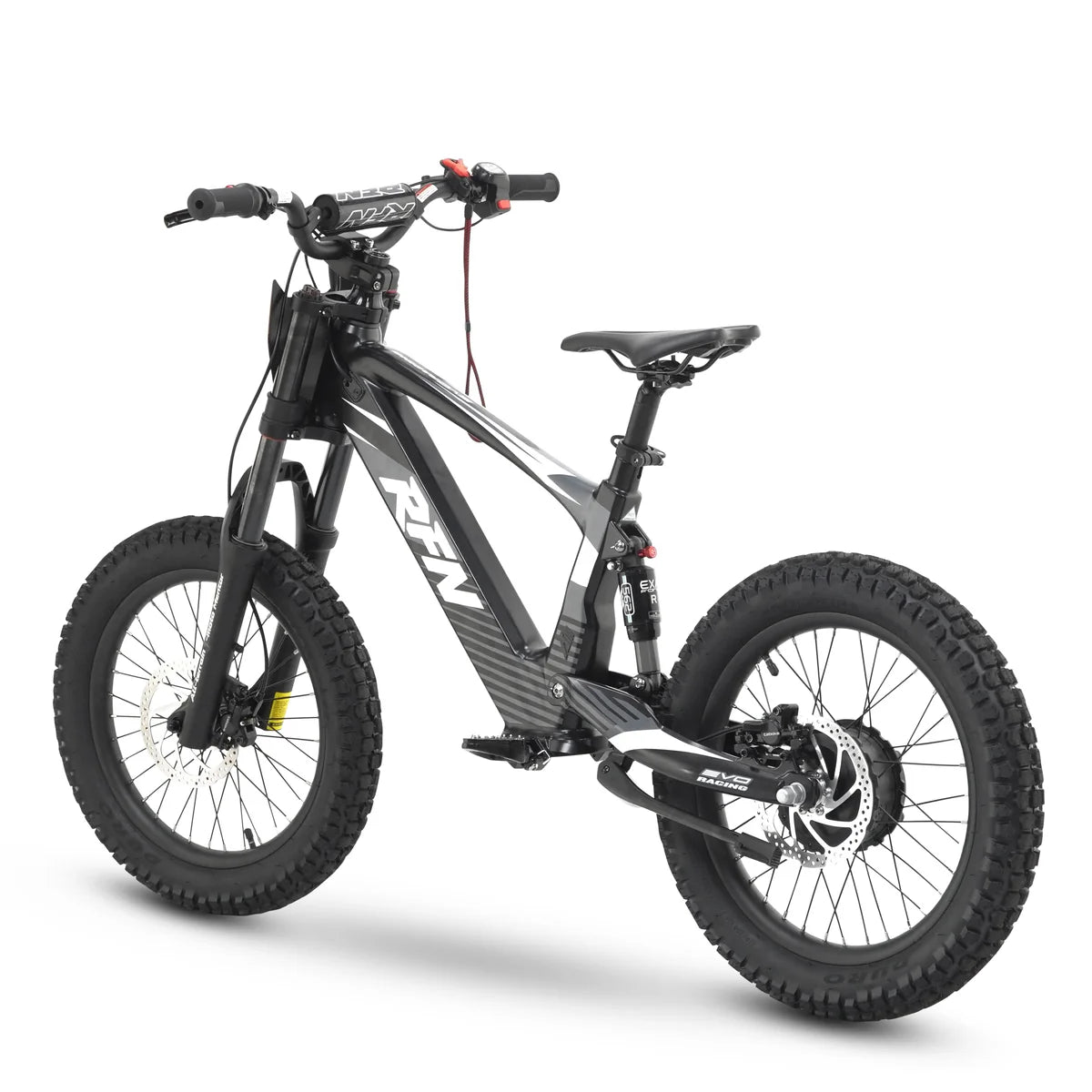

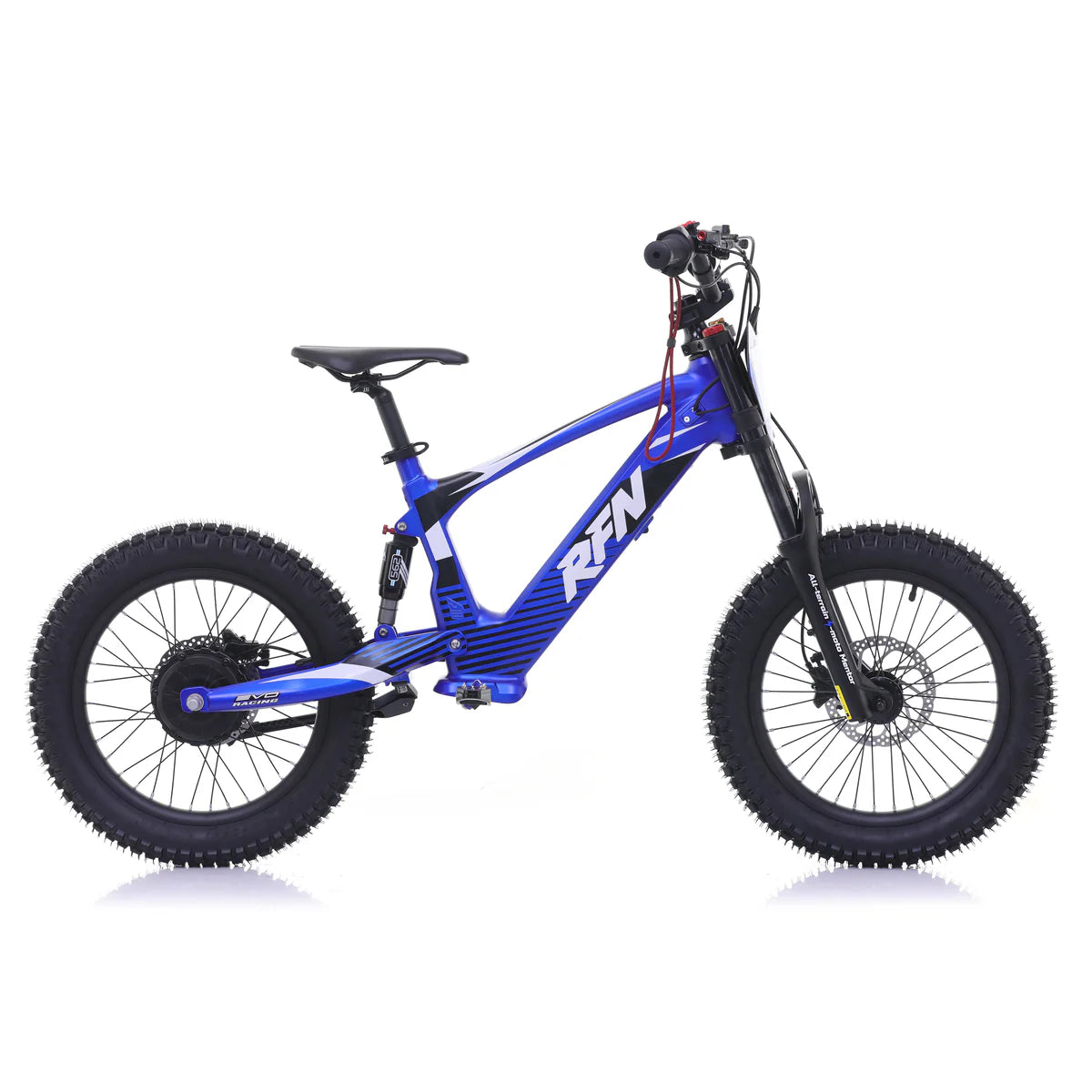

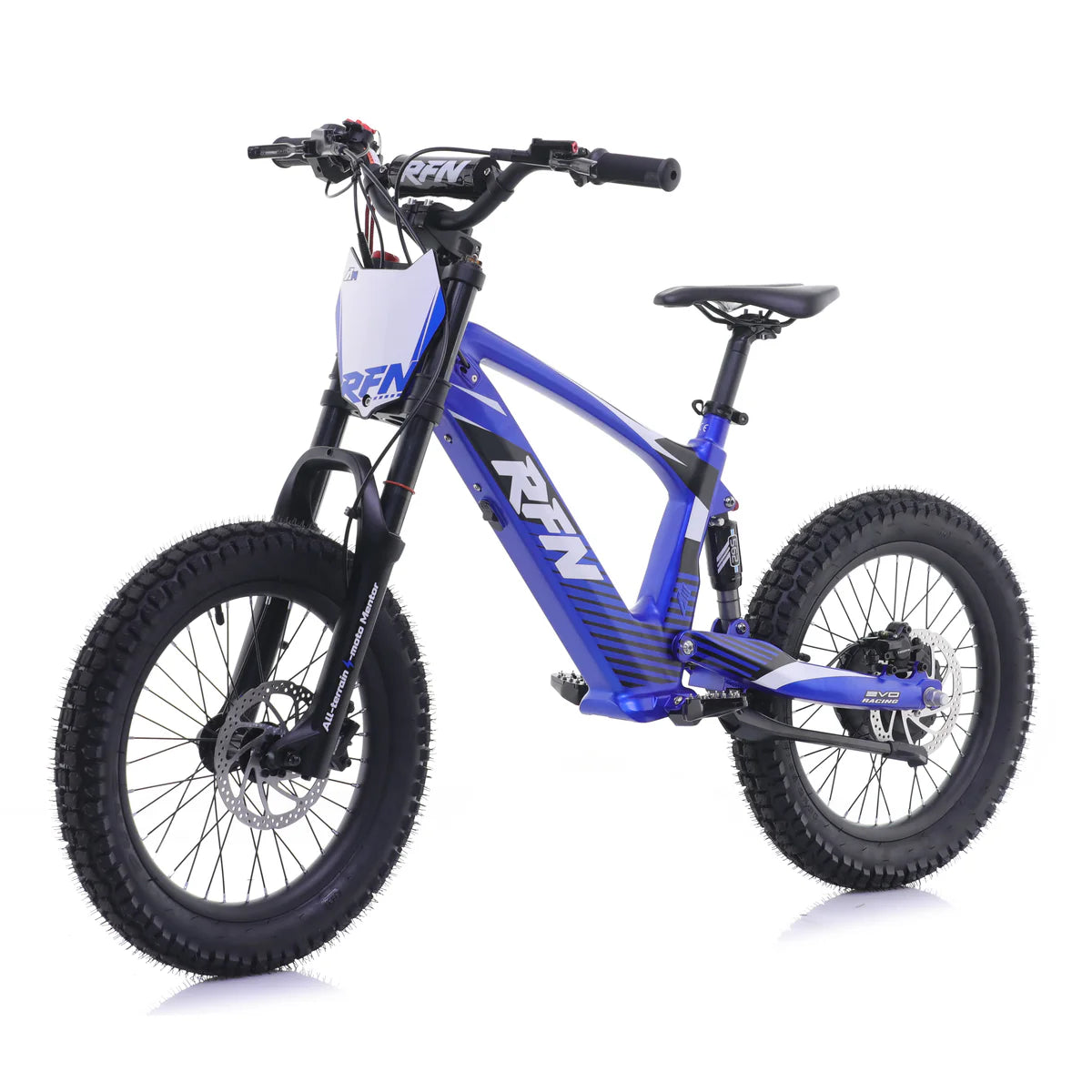

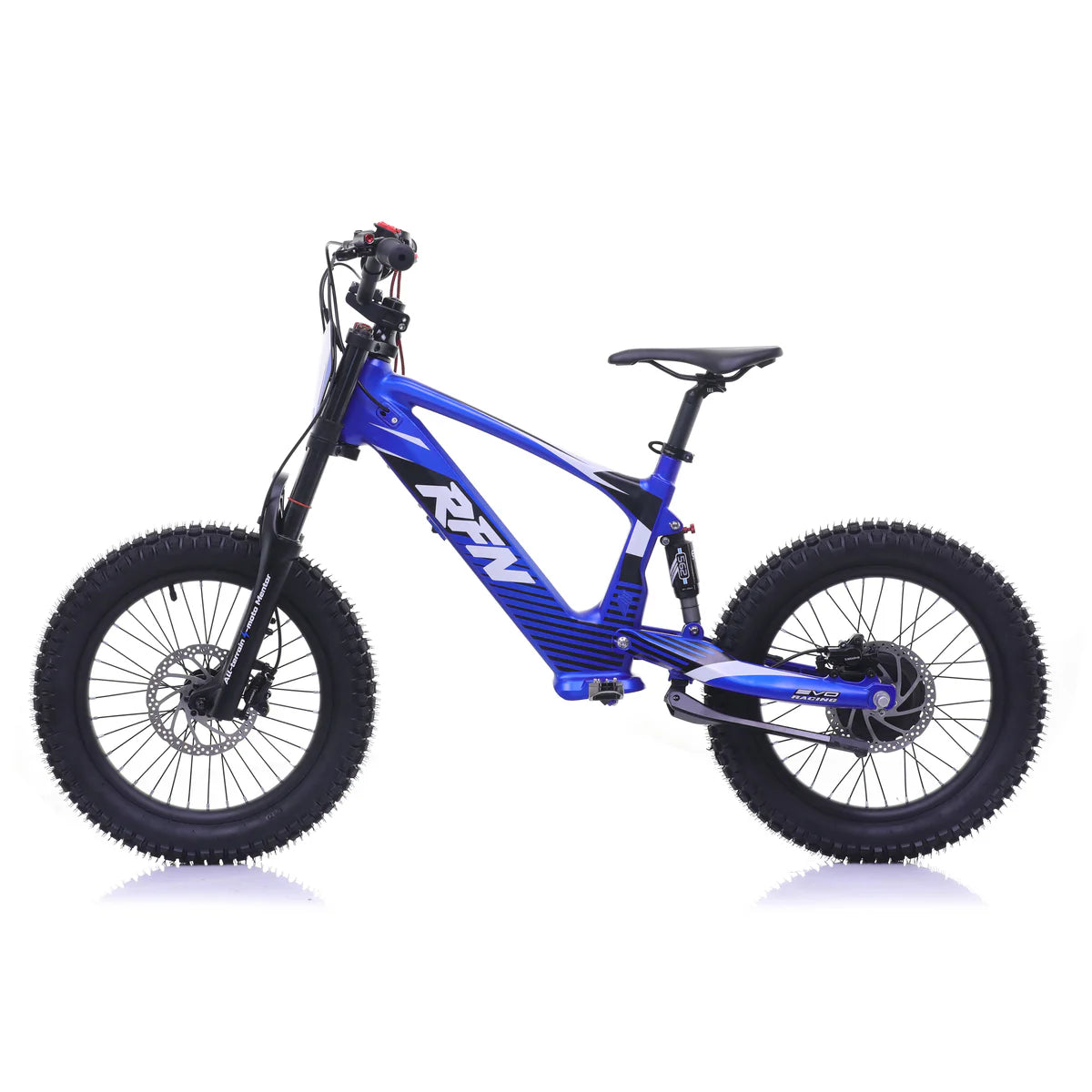

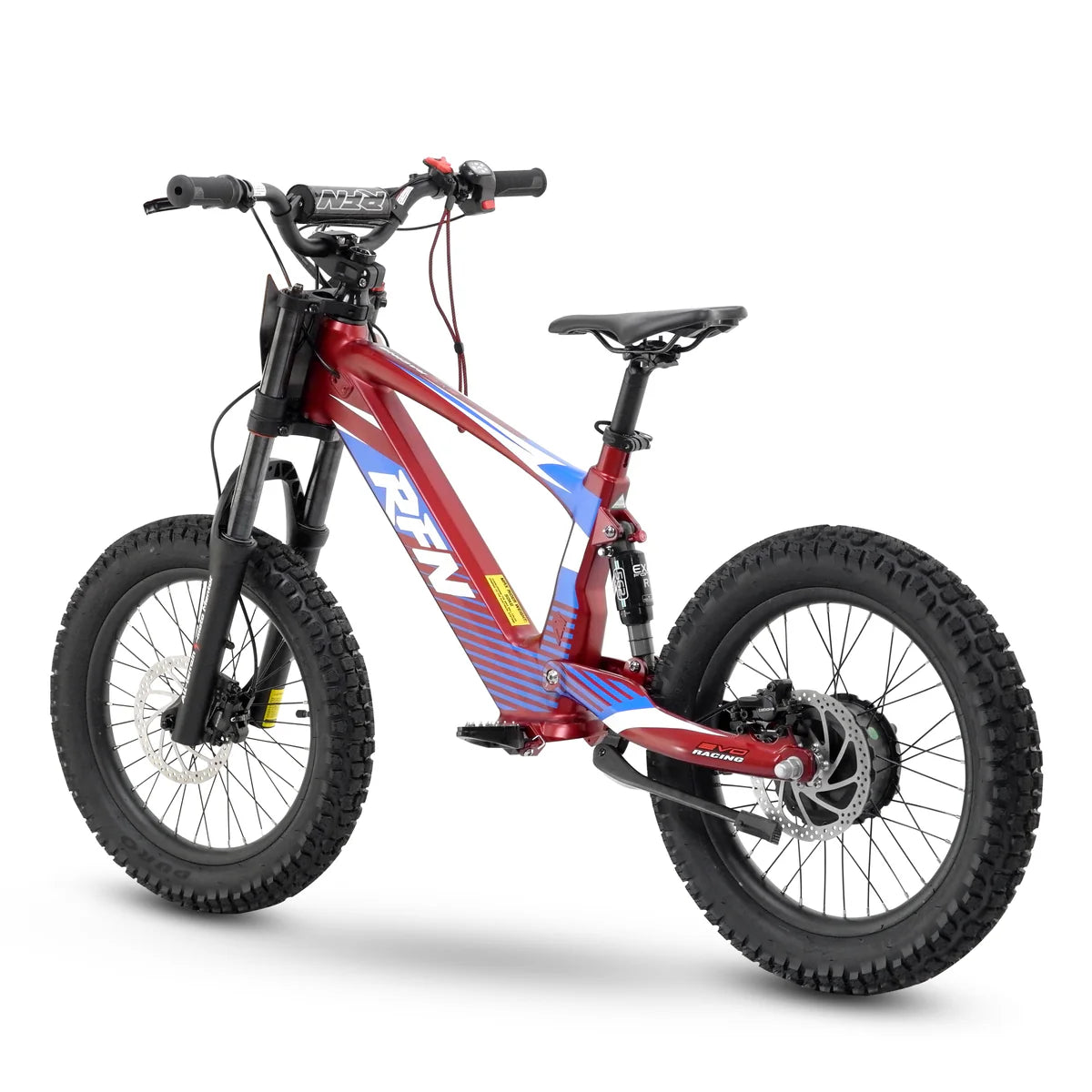

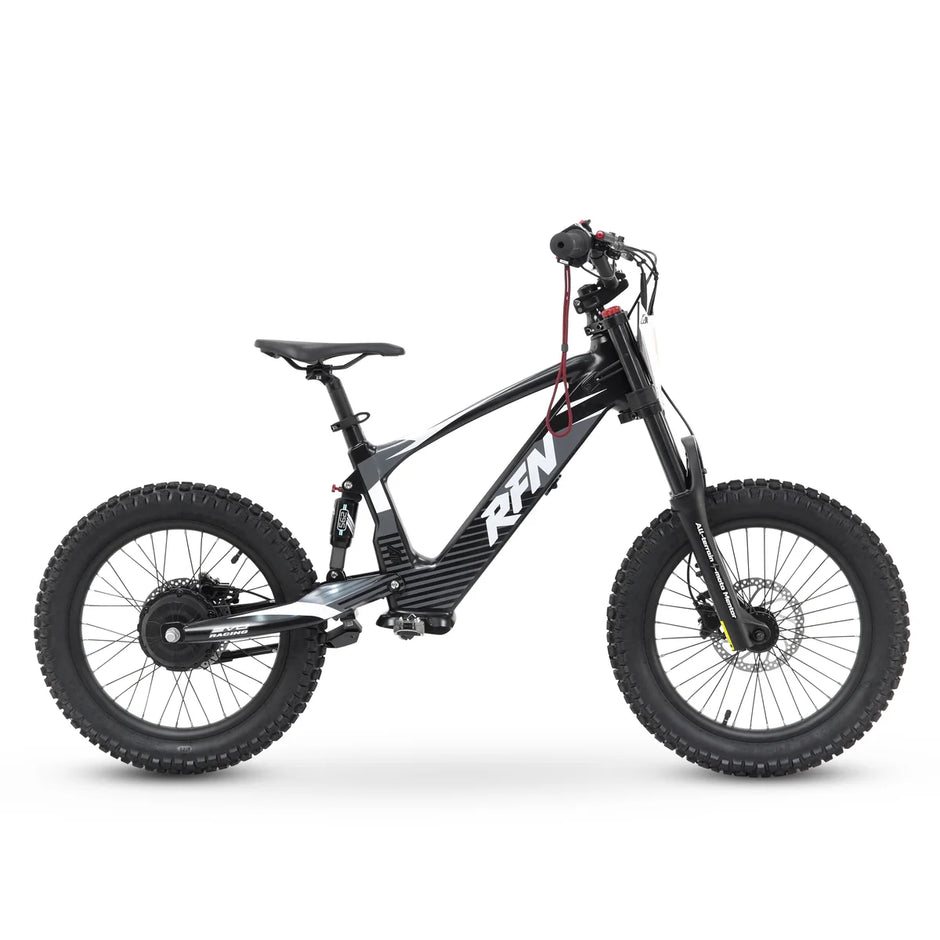

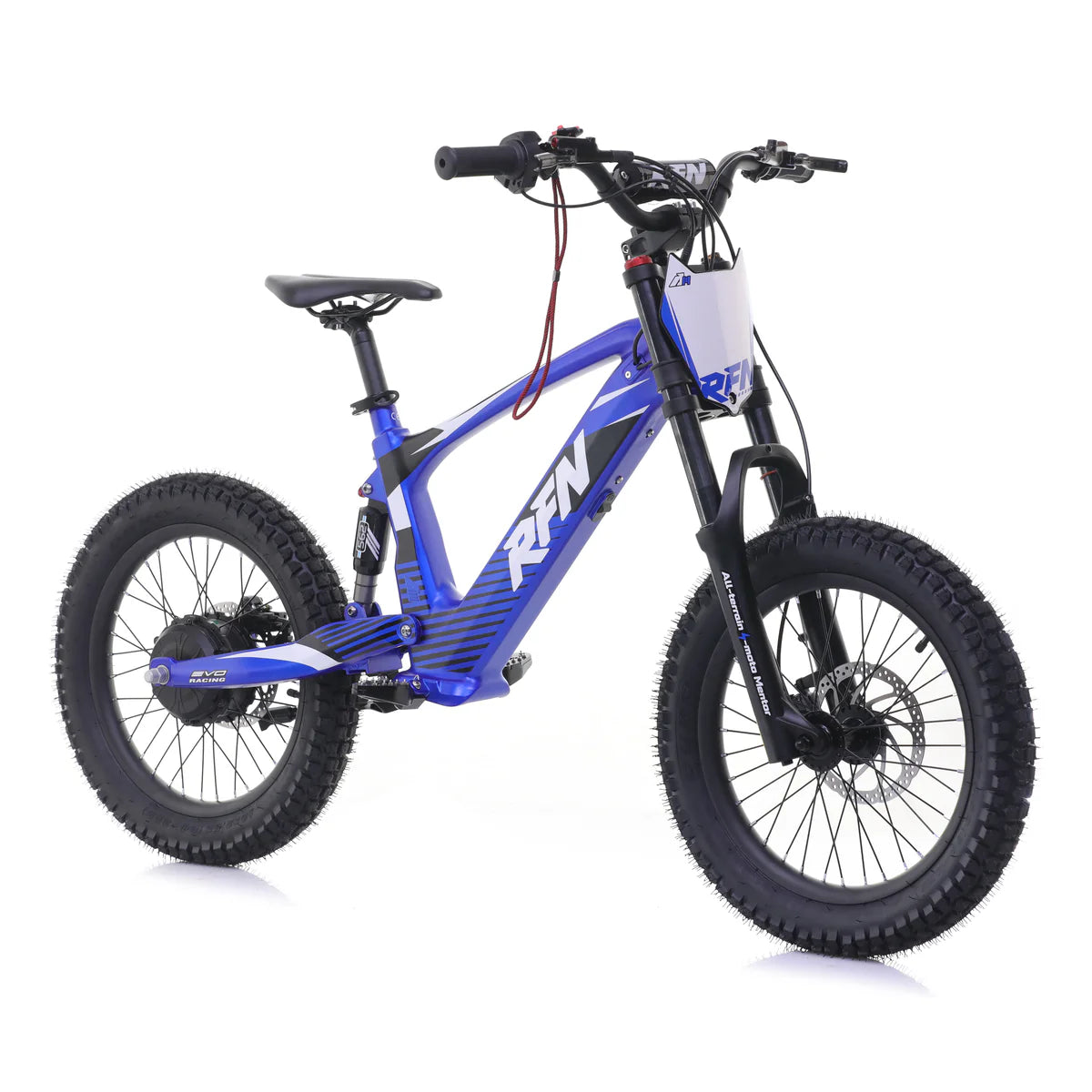

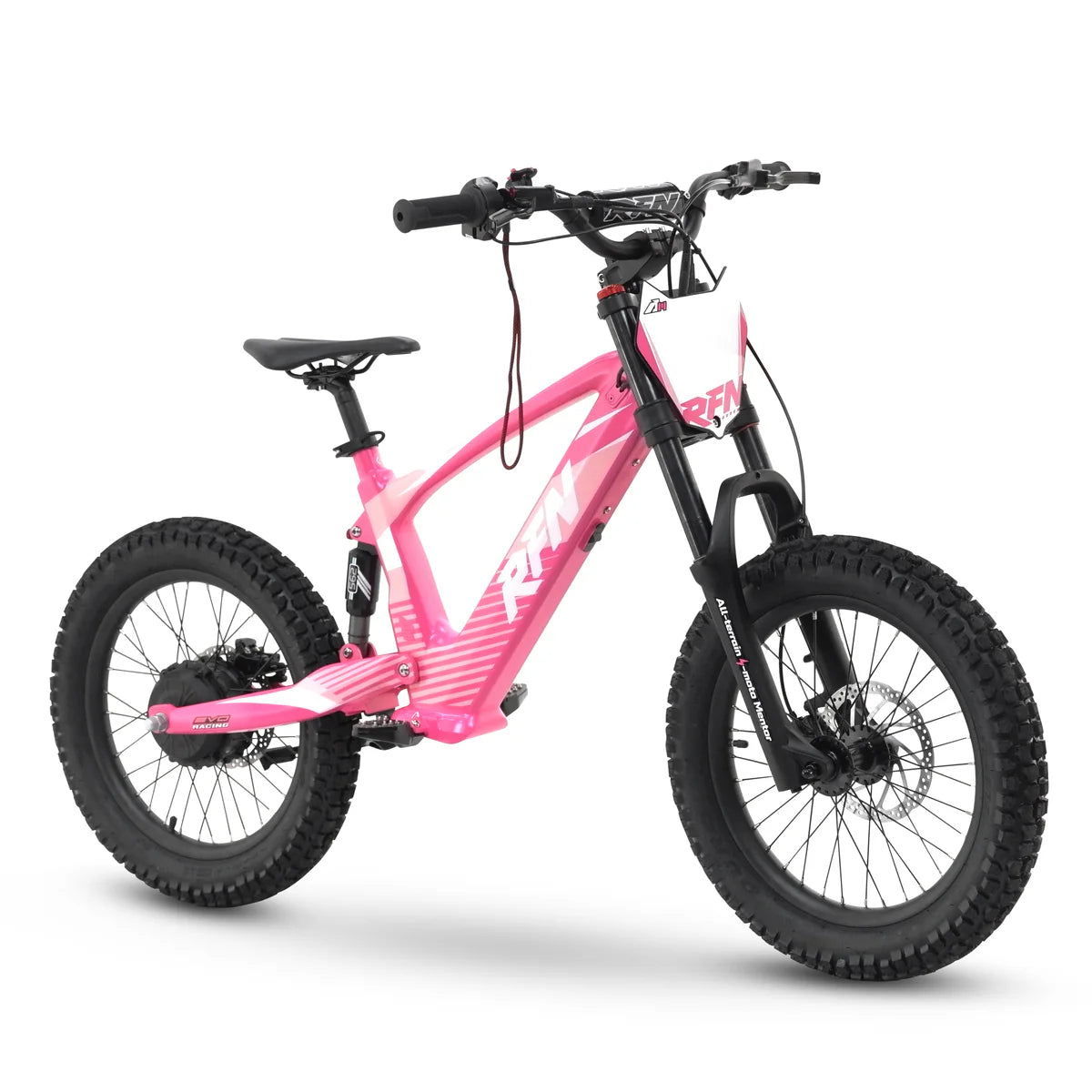

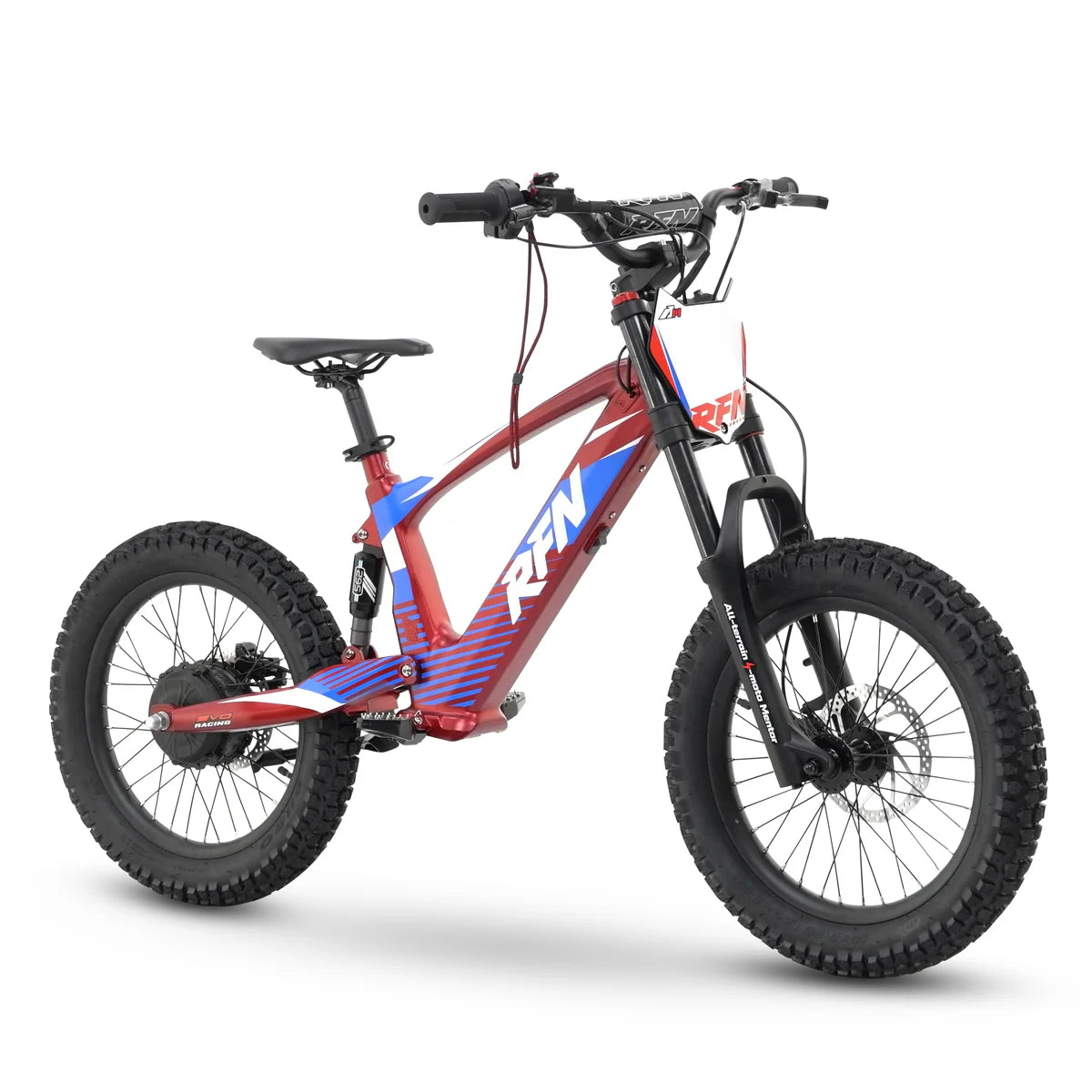

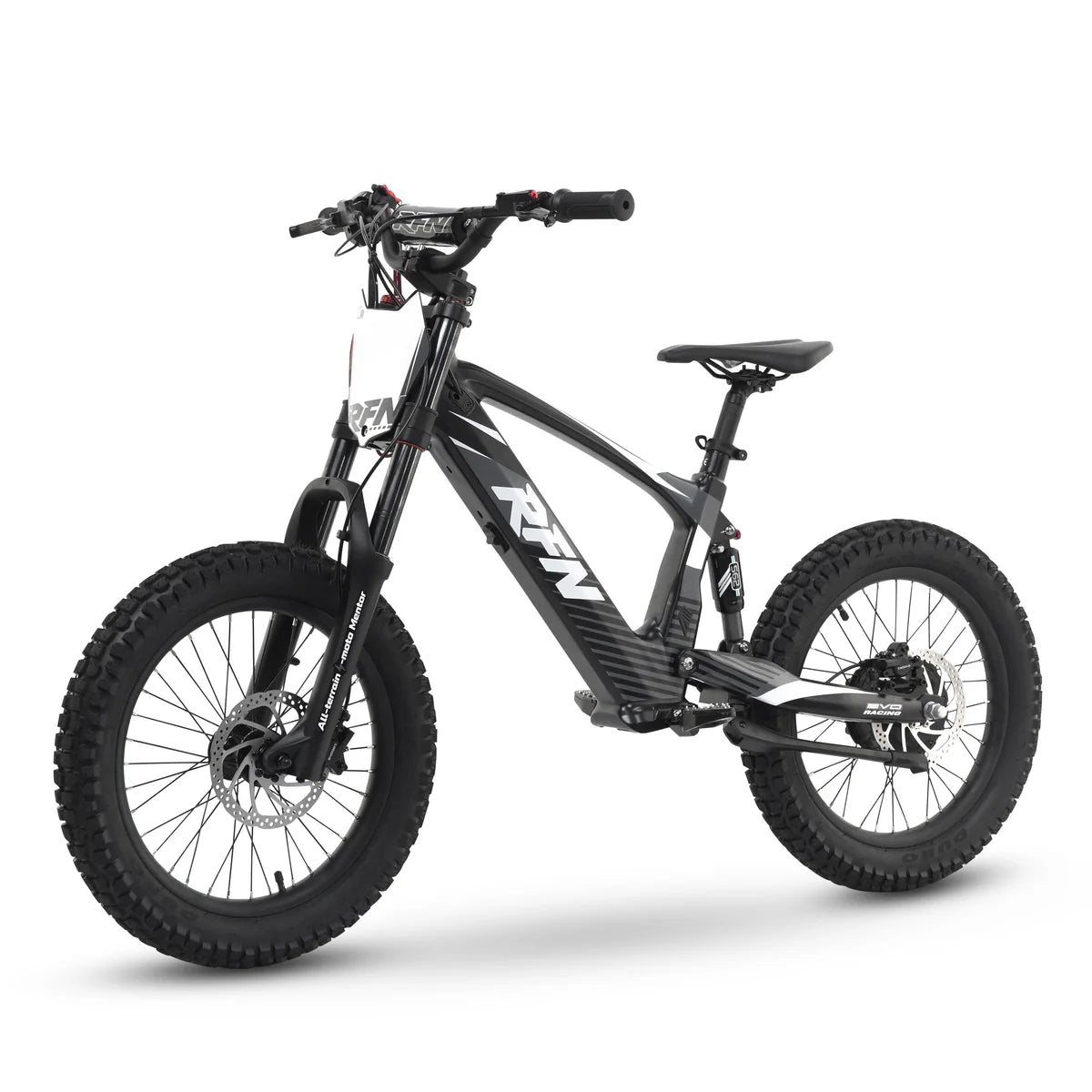

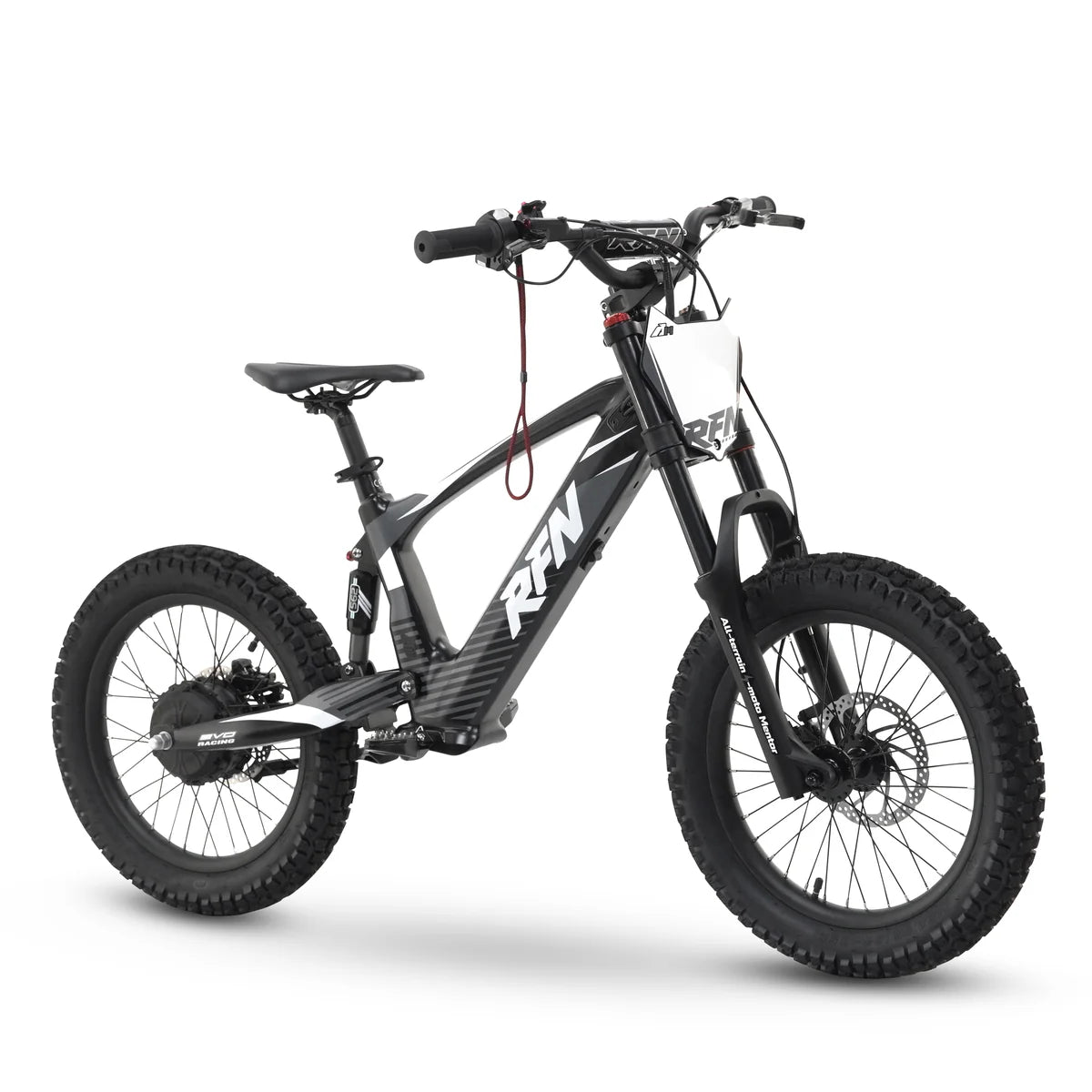

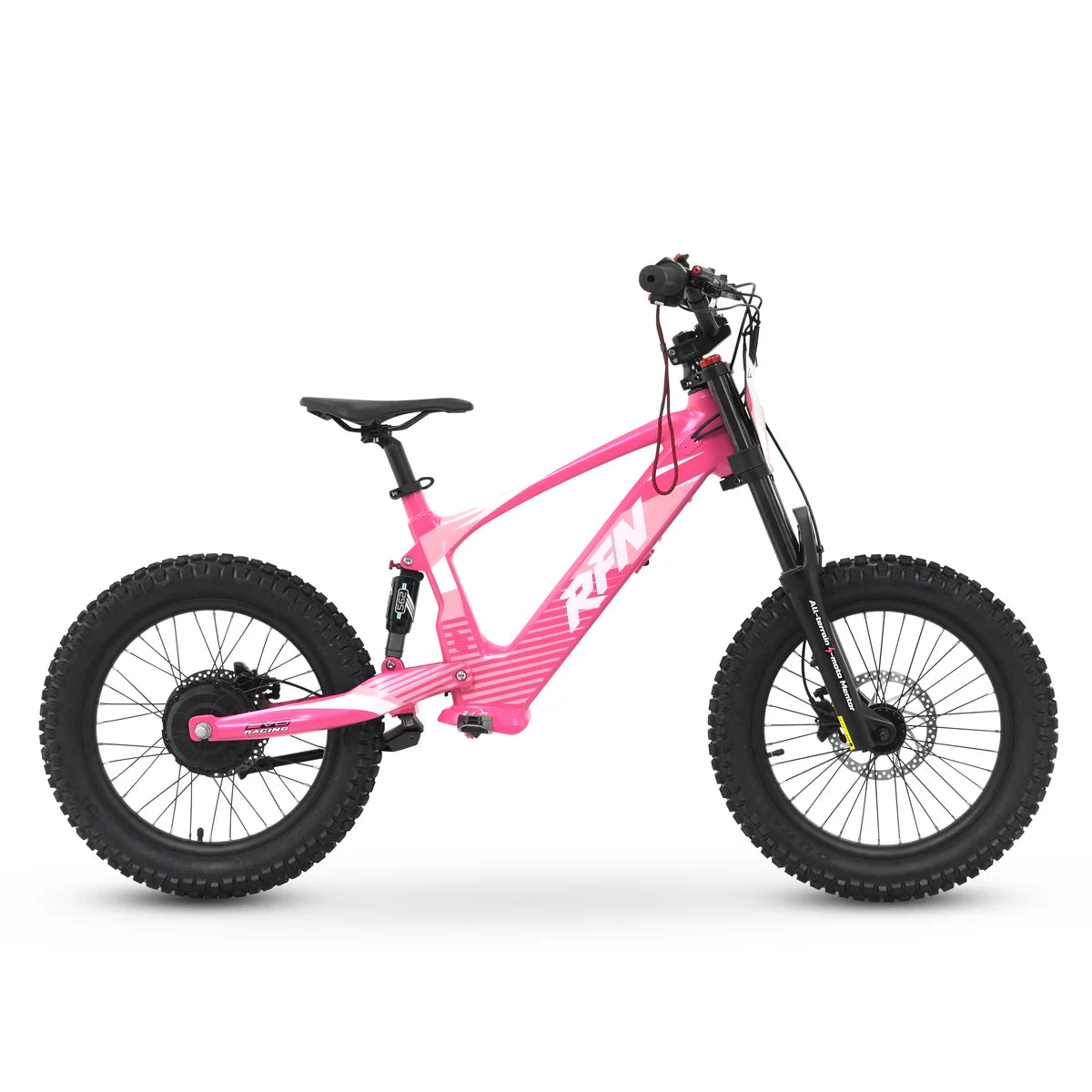

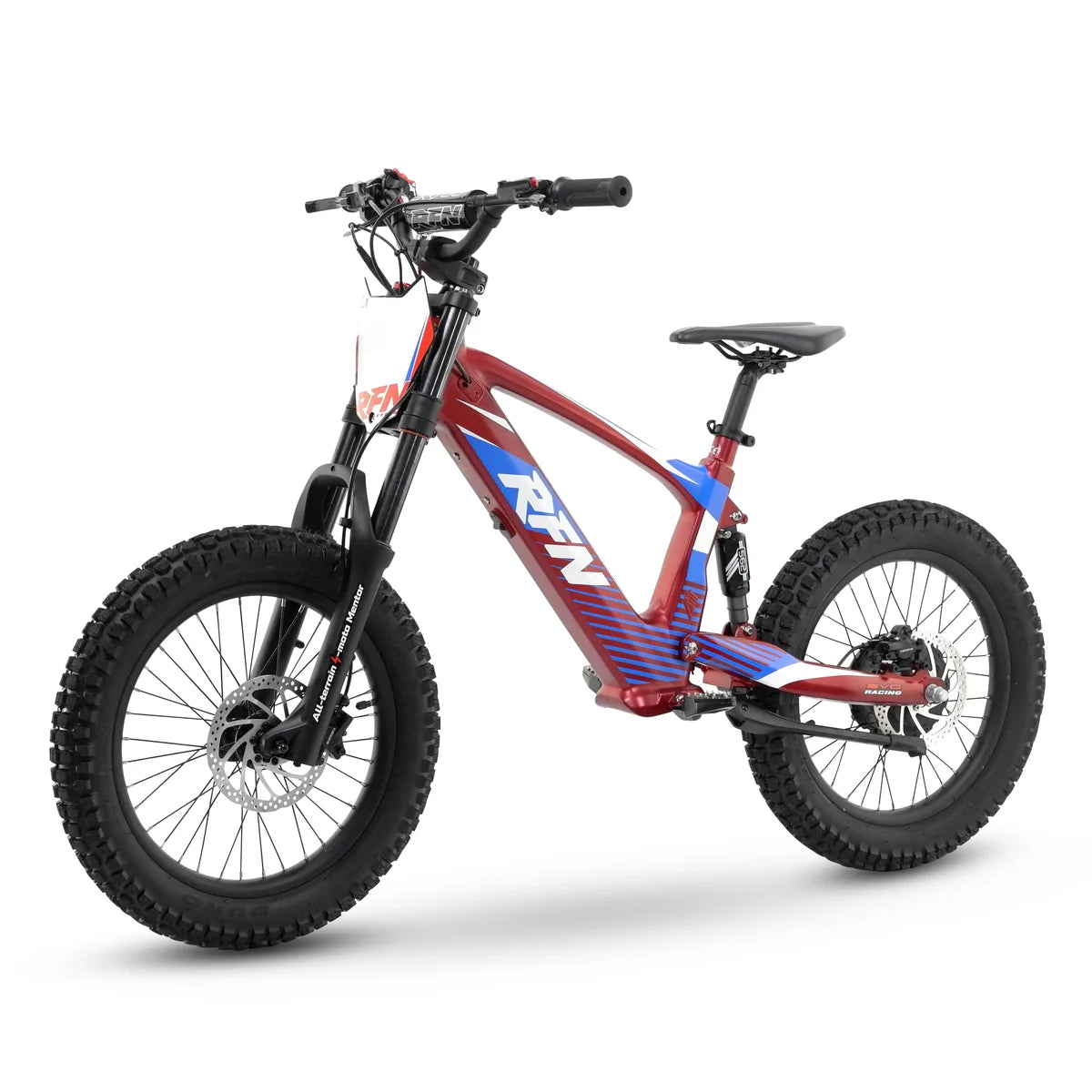

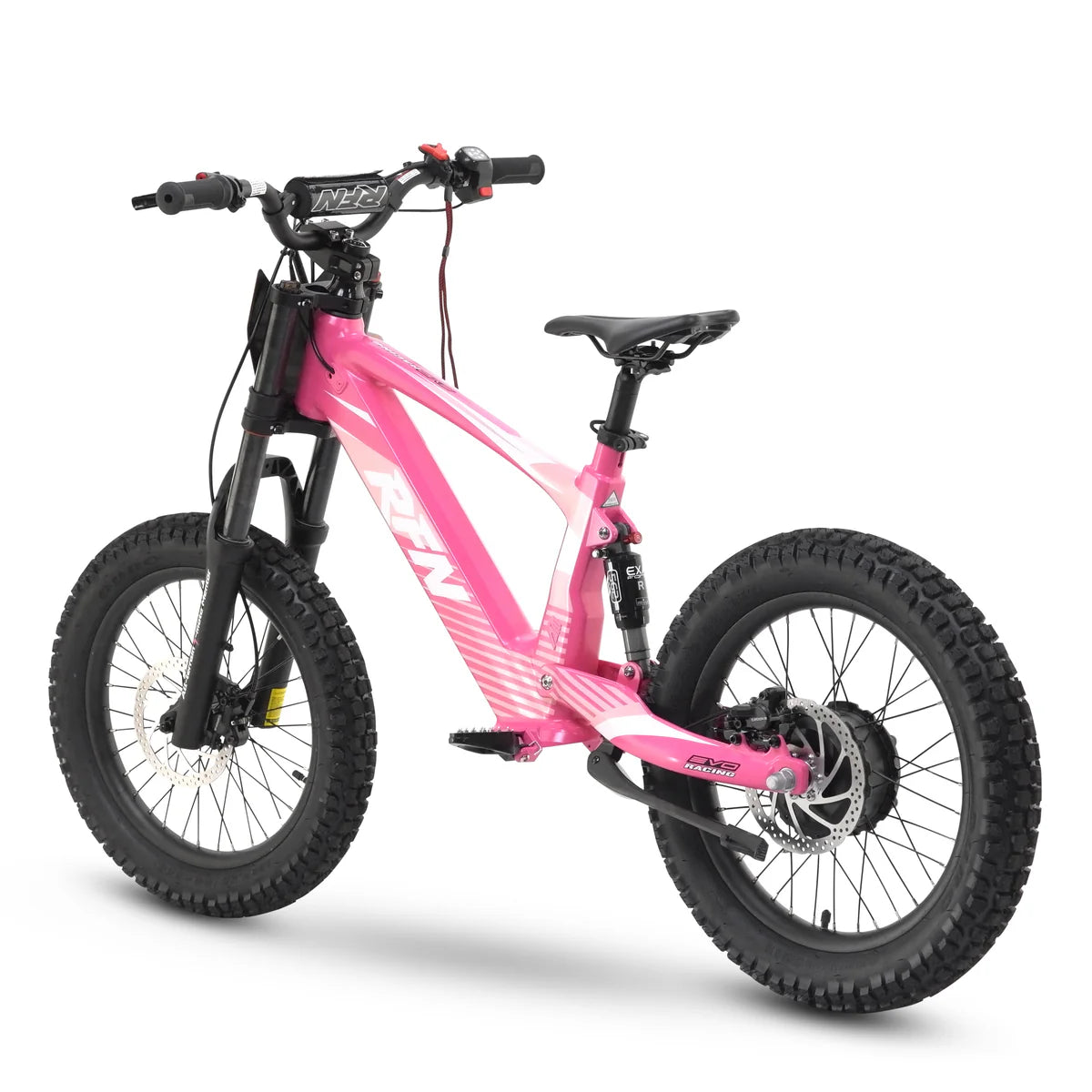

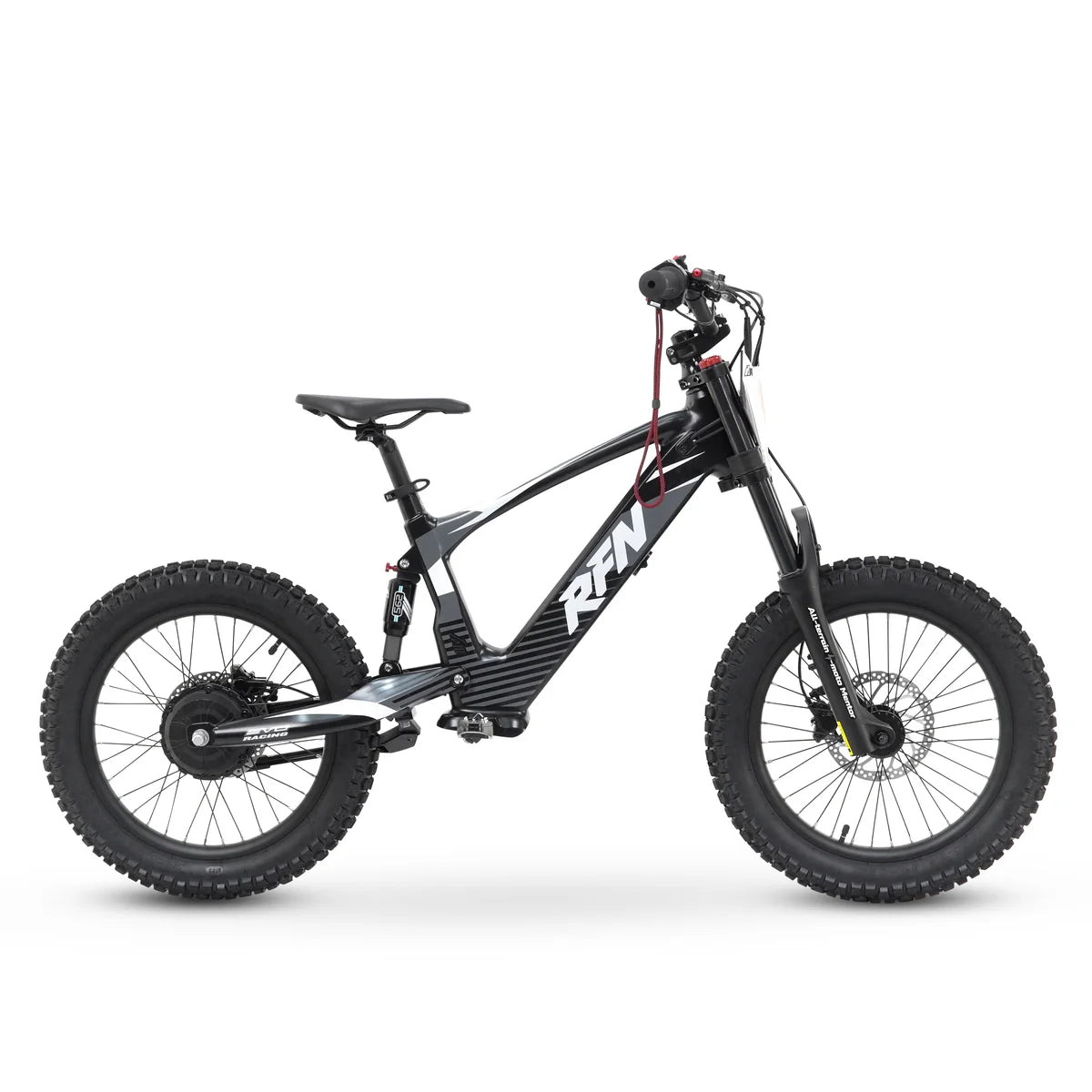

RFN EVO RACING 18'' KIDS E-BIKE E-MOTO E-BMX 500W 36V 5AH BATTERY

Color: Blue

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

0Low stock

0In stock, ready to ship

$1,949.00 -10% $2,143.90

$1,949.00

Detailed Specification

RFN EVO RACING 18
Specs	Frame	Aluminium alloy	Tire	18X2.5 (Mountain tread)
	Color	Red / Blue	Rims	Magnesium alloy wheel
	Front Fork	Front suspension fork	Endurance mileage	15km
	Brake	F/R Hydraulic brake	Max speed	30km/h
	Handle bar	6061/Φ19Φ22.2620mm	N.W	20.58Kg
	Stem	6061/28.6*25.4mm	G.W	24.5Kg
	Saddle	Vacuum Integrated Seat	Max load	70kg
	Grip	Non-slip silicone grip	Package size	1262969cm
Electrical part	Motor	Motor Model	Integrated wheel
		Rated power	36V500W
		Wheel base	178mm
		Open	128mm
		Wheel diameter	18″
		Max power output	750W
		No-load current	≤2A
		No-load speed	350r/min
		Rated speed	320r/min
		Rated current	13.8A
		Torque	42N.m
		Efficiency	≥81%
		Waterproof level	IP66
	Controller	Control mode	Sine wave
		Rated Voltage	36V
		Speed limit	30km/h
		Current limiting	30A
		Max output	750W
		Undervoltage protection value	28±1V
		Stoppage protection duration	1s
		Speed governing	Low : 15km/h Middle: 22km/h High: 30 km/h
		Waterproof level	IP65
	Battery	Capacity	5AH
		Cycling Life	＞300 times
		Max current	Instantaneous current 100A, continuous current 30A
		Waterproof level	IP54
		Charging mode	DC5.5*2.1
		Charging voltage	AC:100-240V DC:42V3A
		Charging voltage	AC:100-240V DC:42V3A
		Operating temperature	’-20℃-60℃
		Overcharge Protection	42.5±0.1V
		Over discharge protection	26V
		Max current protection value	81±4A
		Short circuit protection	With
		Temperature protection	70℃
	Display	Display screen	LED
		Waterproof level	IP54
		Voltage	36V
