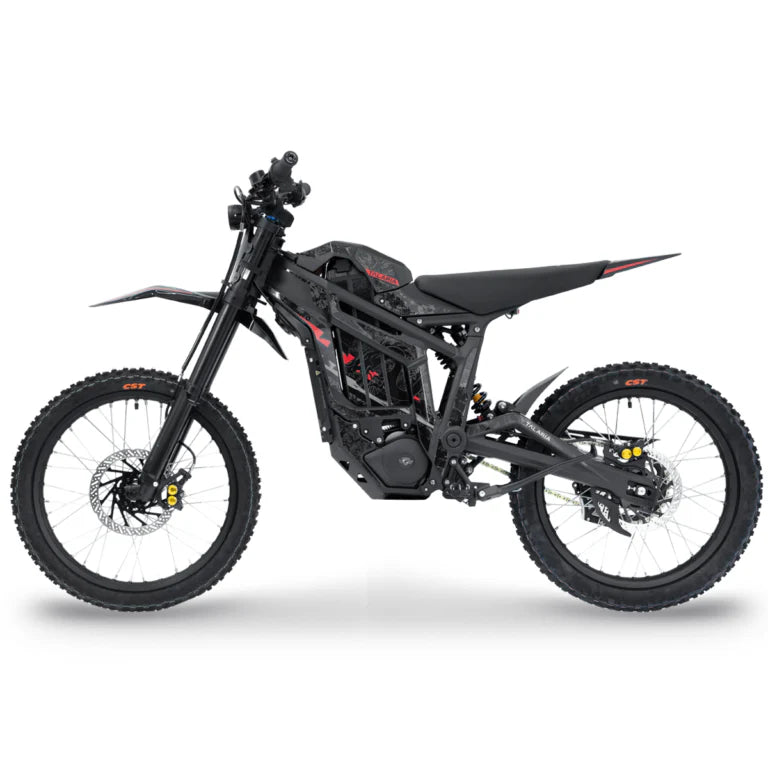

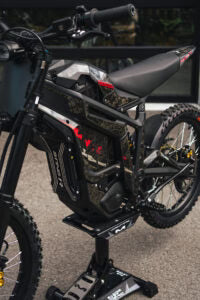

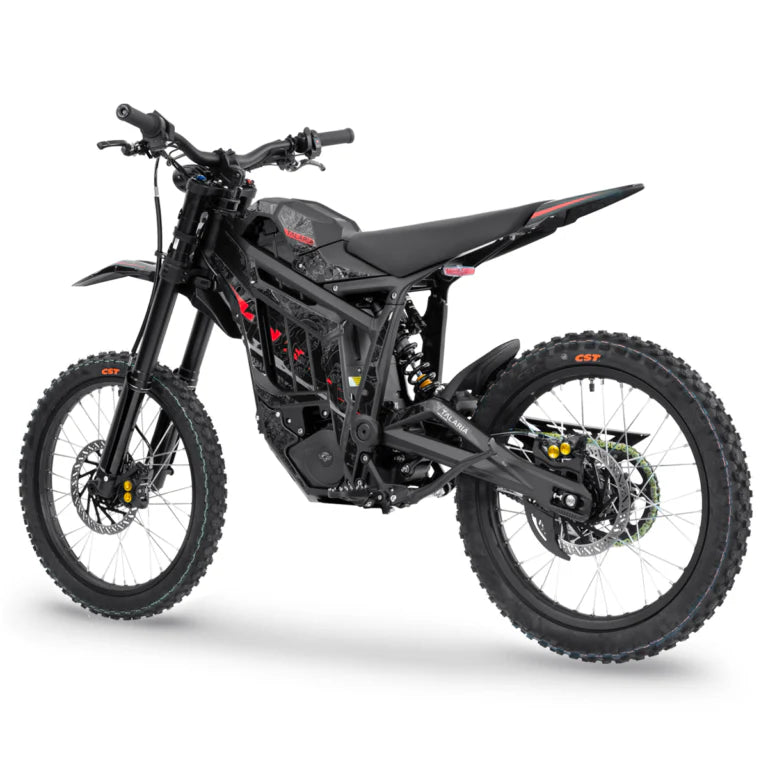

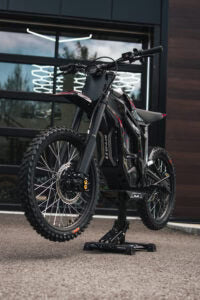

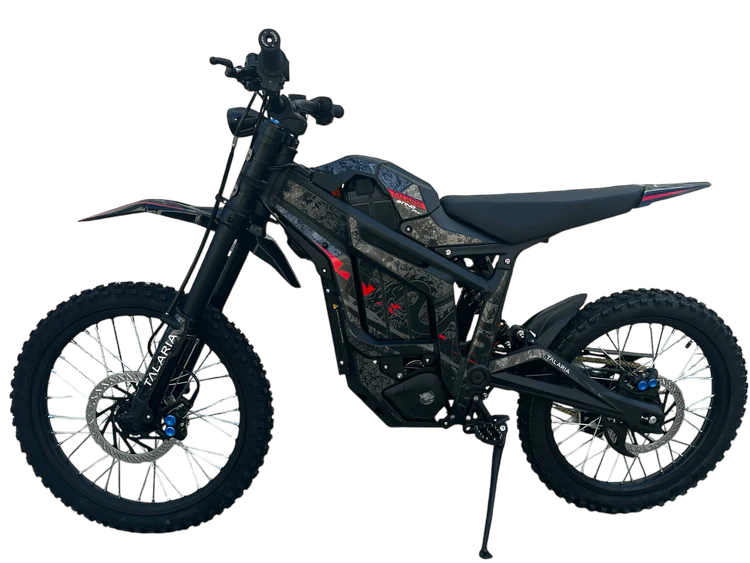

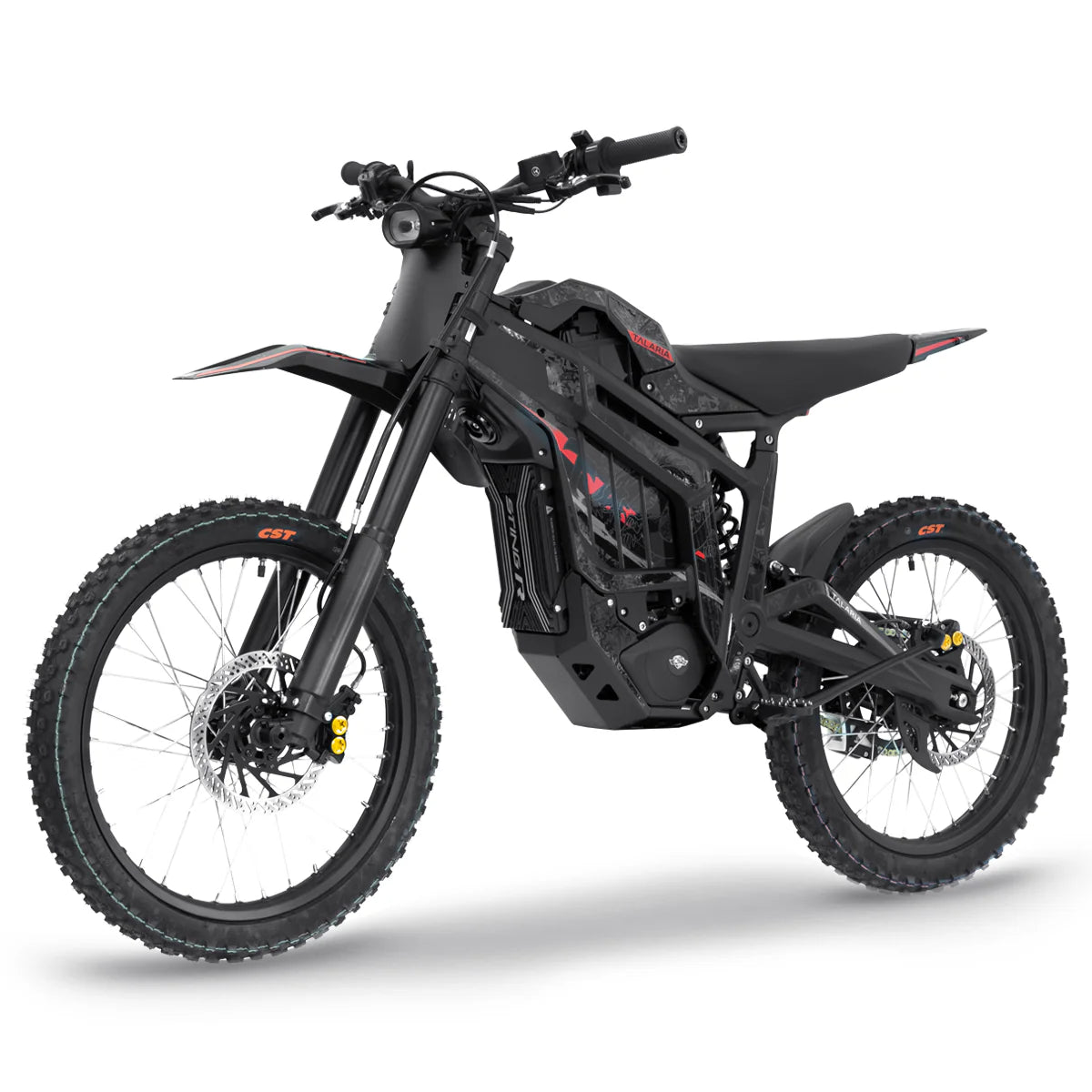

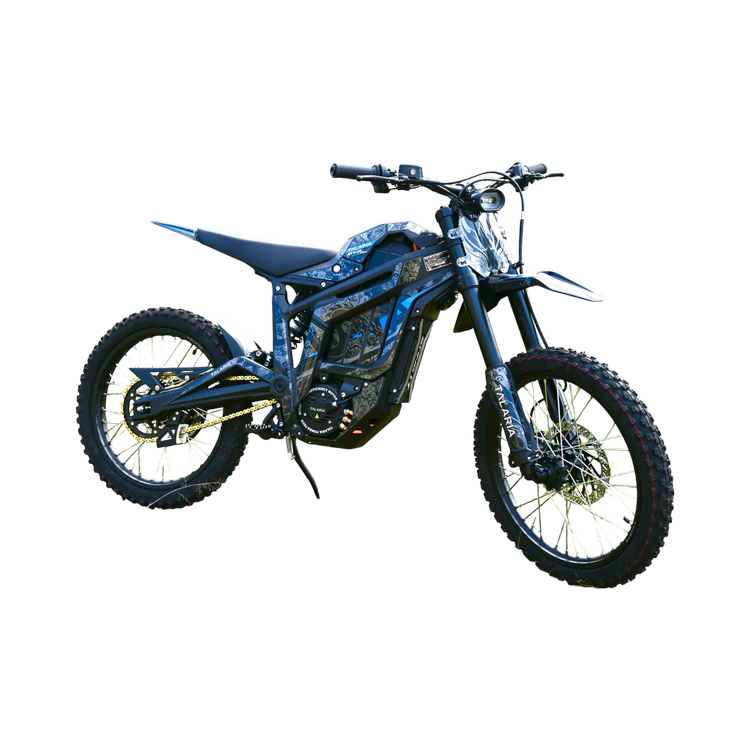

TALARIA Sting PRO MX5 TL5500 (OFF ROAD MX) ELECTRIC DIRT BIKE

Description

The Talaria Sting MX5 Pro, Talaria’s most powerful model to date, is crafted to deliver the pinnacle of electric off-road performance. Featuring a cutting-edge 72V/40Ah battery, this stunning new model boasts a 45% power increase compared to previous 60V versions, offering more torque, faster acceleration, and higher top speeds.

Designed for serious riders, the MX5 Pro comes equipped with powerful moto-spec brakes, three distinct riding modes including the high-performance “hyper” mode, and four adjustable levels of regenerative braking for enhanced control. Its vibrant color TFT display provides essential information at a glance, adding a modern touch.

At its core, the MX5 Pro features a high-powered IPM motor paired with an advanced gearbox, delivering instant torque and quiet, smooth operation. With exceptional performance and an attractive price point, the MX5 Pro is the ultimate choice for riders seeking elite electric off-road capabilities. While it shares some similarities with the E Ride Pro SS, the MX5 Pro redefines the standard for lightweight electric vehicles.

HIGHLIGHTS:

The Talaria Sting MX5 Pro offers unrivaled power and performance, designed to dominate the off-road terrain. With a series of high-end features, the MX5 Pro stands out as the ultimate electric bike for serious riders.

KEY FEATURES

• The bike comes equipped with a robust 72V 40Ah battery, powered by Samsung 50S cells, delivering 2,880 WH for extended rides.

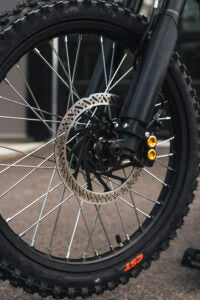

• Experience enhanced braking power with 220x3mm disc brakes, larger calipers, and DOT redesigned master cylinders for superior control.
• Its adjustable air and double spring suspension is optimized for off-road performance, a significant upgrade from the MX4 model.
• Choose between three riding modes, including the high-performance Hyper mode, exclusive to the MX5.
• CNC-machined black footpegs offer durability and strength.
• A color TFT display provides clear information on speed, battery level, and more.
• The straight-pull CNC machined wheel hubs with reinforced spokes ensure durability, even on tough terrain.

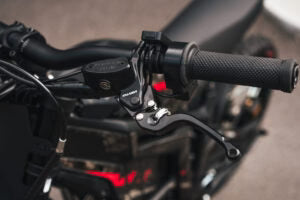

• The bike also features regenerative braking, with an innovative regenerative brake lever for added efficiency.
• Additional elements include a headlight switch and an internal reinforced gearbox, providing quiet and reliable power with no worries of belt wear or snapping.

VEHICLE SPECS

• Chassis Material: High-strength 6061 T4 & T6 aluminum alloy.
• Manufacturing Process: Forged with 6,000 tonnes of pressure for maximum durability.
• Surface Treatment: Anodized for long-lasting protection.
• Lighting: LED headlight for better visibility.
• Suspension: Front adjustable air and dual spring with 220mm travel; rear adjustable shock with 85mm travel and linkage.
• Wheel Size: 1.4×19 inches for the front, 1.6×19 inches for the rear, equipped with high-performance off-road tires.
• Range: Capable of reaching up to 100 km at 25 km/h, or 62 miles at 15 mph.
• Weight: 76 kg (159 lbs), including the battery.
• Dimensions: 1,880 x 770 x 1,088mm, offering a comfortable seating position with an 840mm seat height.
• Ground Clearance: 300mm (11.8 in) for superior off-road maneuverability.
• Max Climbing Angle: 45°.
• Max Load Capacity: 100 kg (220 lbs), ideal for a variety of riders.

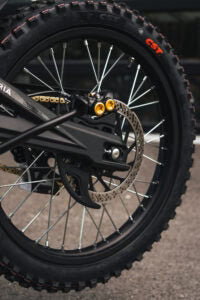

• Brakes: Hydraulic front and rear, with improved 4-piston calipers and 220mm x 3mm brake discs for exceptional stopping power.

POWER

• Nominal Voltage: 72V DC.
• Top Speed: Factory-limited to 32 km/h (20 mph).
• Torque: Delivers a powerful 500 N.m with a 48T rear sprocket.
• Power Output: Rated at 5.5 kW, with peak performance reaching 13.4 kW in unrestricted mode.
• Modes: Three power modes: Eco, Sport, and Hyper.

ELECTRONICS

• Battery: 72V 40Ah with Samsung 50S cells.
• Display: A TFT screen showing speed, battery status, voltage, and odometer.
• Regenerative Braking: Four adjustable levels, along with a regenerative brake lever.

MOTOR

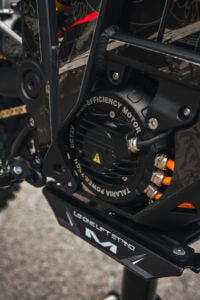

• Type: DC IPM motor, mid-mounted for balance and stability.
• Cooling System: Air-cooled for efficient heat management.

TRANSMISSION

• Primary Transmission: Gearbox.

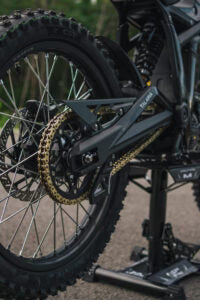

• Drive Transmission: Chain drive (418-108T).
• Rear Sprocket: 48T for optimal power delivery
